Pin terminal - Flat
Stiftkabelsko_platt_vp
B-serien
Material: 99.95% ren Cu
Ytbehandling: > 4mc Sn
Temperaturområde: Upp till 110° C
Svetsad hals
- Reel/roll packaging:
- No
- Max. current (Imax):
- 62-255 A
- Flange shape:
- Pin shape
- According to DIN:
- No
- Insulation:
- None
- Colour insulation:
- Other
- Sleeve form:
- Short
- Suitable for solid cores:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Operating temperature:
- -55-110 °C
- Material:
- Copper

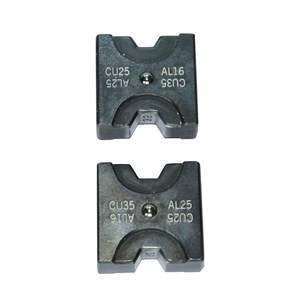

Novopress - Crimp dies
49103
C-hylsbackar
Pressbackar för avgreningshylsor.
Det finns en serie för HP 300 & HPA/HPH/HPM 400 och en annan för HP 450.
Se i nedan tabell vilka storlekar som finns.
- Number of crimps:
- 1
- Application:
- Not isolated cable connections
- Compression shape:
- Round compression

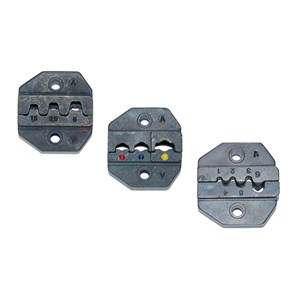

Crimp dies - NH-Series
104001
NH-serien
Pressbackar för KRF, KRT, KRD och C-hylsor.
Pressningar över 95 mm² skall alltid utföras 2 gånger.
Passar till pressverktyg: NMBT 240, NYCP 240T, NPHT 240, NMBT MAT, UP 60 m.fl.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Not isolated cable connections
- Compression shape:
- Hexagon, Oval pressing
AHE-Crimp dies
152001
AHE-serien
Pressbackar för KRT.
Pressningar över 95 mm² skall alltid utföras 2 gånger.
Passar till pressverktyg: HYCP 240, 264562-000 och 3176 P.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors
- Compression shape:
- Hexagon

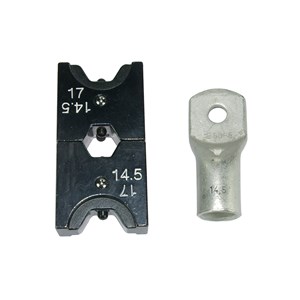

Rör & plåtkabelskor, BACK
Rör plåtkabelskor BACK
Pressbackar till K 650, HDD 0650, K 1095, HDD 06120.
Levereras parvis.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors
- Compression shape:
- Hexagon
- Application:
- Pipe cable lug and connectors
- Compression shape:
- Hexagon, Round compression
DHD & DRG-Crimp dies
109202
Pressbackar till handverktyg HD RAM och XLHD RAM samt batteriverktyg NMBT DHD
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Cable end sleeves, Not isolated cable connections
- Compression shape:
- Hexagon, Arbour clamping, Square compression

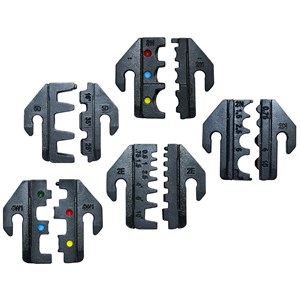

Crimp dies - CrimpXchange, NCXD-series
NCXD_VP
Crimp dies for hand tool NCX RAM. Also suitable for HD RAM and XLHD RAM as well as battery tool NMBT DHD.
- Number of crimps:
- 1
- Application:
- Pipe cable lug and connectors, Insulated tube cable lug and connector, Cable compression lugs and connectors, Cable end sleeves
- Compression shape:
- Trapezoid compression, Arbour clamping, Round compression, Square compression, Oval pressing, Roll compression (shrinking)

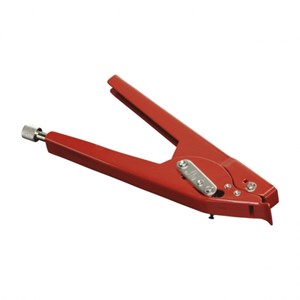

TG 010
TG 010_VP
Cable tie tool for plastic cable ties. Specially designed for wider cable ties.
TG 010: Handles cable ties from 3.6-13.0 mm in width. With automatic cutting funtion and adjustable tension setting.
Colour: Red
Length: 200 mm
- Tensioning strength:
- Manual
- Material tool:
- Metal
- Property:
- Automatic cut off
- Construction type:
- Ställbart dragtryck, Automatisk klipp
- Construction/operation:
- Mechanic one hand
- Material cable tie:
- Plastic
- MIL specified:
- No

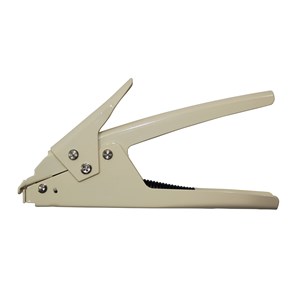

TG 009
TG 009_VP
Cable tie tool for plastic cable ties. Specially designed for wider cable ties.
TG 009: Handles cable ties from 3.6-9.0 mm in width. With manual cutting without adjustable tension setting.
Colour: White
Length: 200 mm
- Tensioning strength:
- Manual
- Material tool:
- Metal
- Property:
- Manual clipping
- Construction/operation:
- Mechanic one hand
- Material cable tie:
- Plastic
- MIL specified:
- No

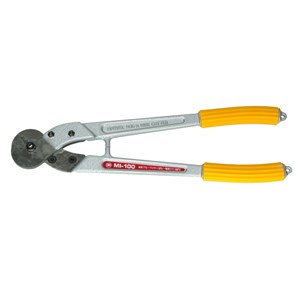

2-handed (mechanical)
182901
MI 60 / MI 200
Wire cutter för steel wire. V-shaped blades with special steel for easier cutting. Replacable blades.
Cutting capacity steel/wire (diameter):
MI 60: 5 mm / 7 mmMI 200: 9 mm / 12 mm
Length: 310 mm / 445 mm / 600 mm
- Handle cover:
- Plastic
- Surface protection:
- Lacquered
- Construction/operation:
- Mechanic two hands
- Isolation protection 1000 V:
- No
- With spring:
- No

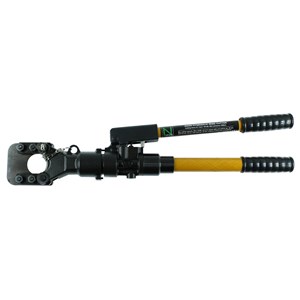

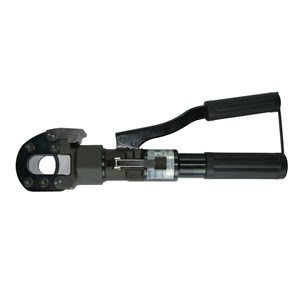

2-handed (Hydraulic) NHHT WC24
NHHT WC24_VP
NHHT WC24 is an hand held hydraulic wire cutter for steel wire and steel-, copper and aluminiumrods.The head is rotatable 180º and releaseable.En kapning utförs med max. 35 pumpningar.Delivered in an high quality fabric case.
Can cut the following:Wire 6x7: 24mmWire 6x12: 24mmWire 6x19: 24mmCopper rod(mjuk): 23mmAluminium rod(mjuk): 24mmSteel rod(mjuk): 16mmCopper cable: 24mmAluminium cable: 24mmACSR: 24mm
Cannot be used for piano wire.
Pressure: 66 kNWeight: 2.7 kgLength: 360 mm
- Handle cover:
- Plastic
- Surface protection:
- Lacquered
- With spring:
- N/A

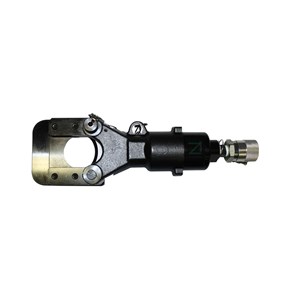

NPHT WC45
NPHT WC45_VP
NPHT WC45 is a hydraulic wire cutting head with a 3/8 nipple for connection to a foot or electric 700 bar hydraulic pump.Cuts steel wire, steel, copper and aluminum rods.The tool is fitted with a spring-loaded finger cover and comes in a handbag.
Cutting capacity (diameter): 40 mm
Length: 310 mm incl. nipple
- Handle cover:
- Other
- Surface protection:
- Lacquered
- Construction/operation:
- Hydraulic cutter head
- Isolation protection 1000 V:
- No
- With spring:
- N/A
2-handed (Hydraulic) NHHT WC40
NHHT WC40_VP
NHHT WC40 is an hand held hydraulic wire cutter for steel wire and steel-, copper and aluminiumrods.The head is rotatable 180º and releaseable.Delivered in an high quality fabric case.
Cutting capacity (diameter):Wire 6x7: 40mmWire 6x12: 40mmWire 6x19: 40mmCopper rod(mjuk): 32mmAluminium rod(mjuk): 40mmSteel rod(mjuk): 20mmCopper cable: 40mmAluminium cable: 40mmACSR: 40mm
Cannot be used for piano wire.
Max. pressure: 700barMax. cutting power: 9.7ton/95kNLength: 683mmWeight: 6.8kg
- Handle cover:
- Plastic
- Surface protection:
- Lacquered
- Construction/operation:
- Hand hydraulic
- Isolation protection 1000 V:
- No
- With spring:
- No
