- Total: 4

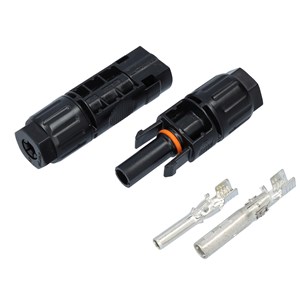

Solar cell connectors, MC4
MC4-1500V_vp
Solar panel connectors.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
- Housing material:
- Plastic
- Rated current:
- 54 A
- Rated voltage:
- 1500 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Double locking levers
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP68
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 16 kV
- Rated insulation voltage:
- 8000 V
- Contact type:
- Bus, Pin
- Flammability rating (UL94):
- V1

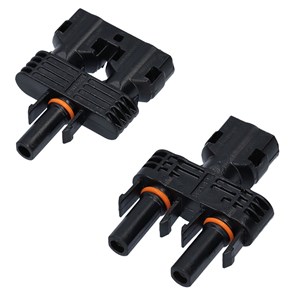

PV Solar branch connectors MC4
Solcellskontakter MC4P_vp
Either with 2 x Pin+pin housing & 1 x Socket+socket housing or 1 x Pin+pin housing & 2 x sockets+sockethousings.
Pin/Socket: Tinned cupper
Max voltage: 1500V
Max current: 30A
IP68
UV resistant according to ISO 4892-2
Tested according to IEC 62582
Pin/Socket: Tinned cupper
Max voltage: 1500V
Max current: 30A
IP68
UV resistant according to ISO 4892-2
Tested according to IEC 62582
- Housing material:
- Plastic
- Rated current:
- 54 A
- Rated voltage:
- 1500 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Double locking levers
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP68
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 16 kV
- Rated insulation voltage:
- 8000 V
- Contact type:
- Bus, Pin

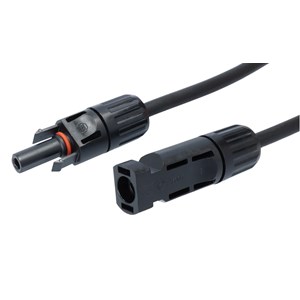

Extension cords MC4
Förlängningskablar-MC4_vp
Extension cord for 12V PV Solar panels or serial connection of multiple solar panels. Maximum distance between panel and regulator is 10 m.

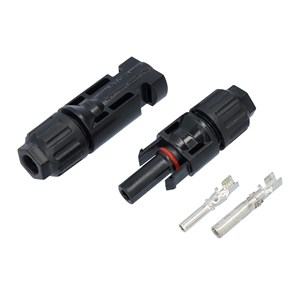

Solar cell connectors, MC4, 1000V
MC4-KIT_vp
Solar panel connectors.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
Contact material: Tin plated copper
Contact resistance: <0.5mΩ
According to EN 62852:2015.
- Housing material:
- Plastic
- Rated current:
- 30 A
- Rated voltage:
- 1000 V
- Ambient temperature:
- -40-85 °C
- Type of housing:
- Straight
- Coating housing:
- Plastic-coated
- Type of locking:
- Bayonet
- Screened:
- No
- With status indication:
- No
- Degree of protection (IP), mounted:
- IP67
- Material of contact surface:
- Brass
- With protective conductor:
- No
- Rated impulse sparkover voltage:
- 8 kV
- Rated insulation voltage:
- 6000 V
- Contact type:
- Bus, Pin, Other
- Strip length:
- 6-7 mm
- Flammability rating (UL94):
- V0
