- Total: 2

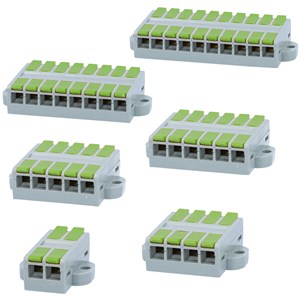

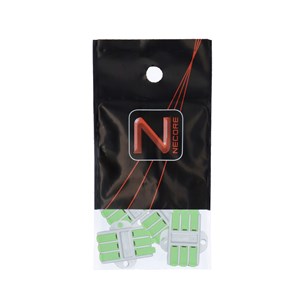

Terminal block, screw mount, with lever - Consumer pack
Kopplingsplint_för_skruvfastsättning_Pin-pac_vp
Terminal blocks from 2 to 12 poles.
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
- Number of poles:
- 2-12 .
- Rated voltage:
- 600 V
- Explosion-tested version 'Ex e':
- No
- Rated current In:
- 40 A
- Type of electrical connection 1:
- Plug-in connection
- Type of electrical connection 2:
- Plug-in connection
- Number of clamp positions per pole:
- 2 .
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Closing plate required:
- No
- Operating temperature:
- -40-105 °C
- Transparent:
- No
- Strip length:
- 10-14 mm
- Colour:
- Green
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Terminal block, screw mount, with lever
Kopplingsplint_för_skruvfastsättning_vp
Terminal blocks from 2 to 12 poles.
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
- Number of poles:
- 2-12 .
- Rated voltage:
- 600 V
- Explosion-tested version 'Ex e':
- No
- Rated current In:
- 40 A
- Type of electrical connection 1:
- Plug-in connection
- Type of electrical connection 2:
- Plug-in connection
- Number of clamp positions per pole:
- 2 .
- Mounting method:
- Surface mounted
- Material insulation body:
- Thermoplastic
- Closing plate required:
- No
- Operating temperature:
- -40-105 °C
- Transparent:
- No
- Strip length:
- 10-14 mm
- Colour:
- Green
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
- Total: 2
