- Total: 6

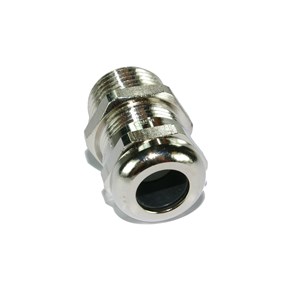

HSK-M EX
155501
EX kabelförskruvning
Material: Förnicklad mässing
Tätningssats: PA
Formtätning:NBR
O-ring:NBR
Skyddsklass: IP 68-10 bar, inom
angivet område
Drifttemperatur
kontinuerligt (1.610): -20º C till +95º C
(1.640): -60º C till +105º C
PG är ej VDE godkända.
Material: Förnicklad mässing
Tätningssats: PA
Formtätning:NBR
O-ring:NBR
Skyddsklass: IP 68-10 bar, inom
angivet område
Drifttemperatur
kontinuerligt (1.610): -20º C till +95º C
(1.640): -60º C till +105º C
PG är ej VDE godkända.
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric, PG
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14-68 mm

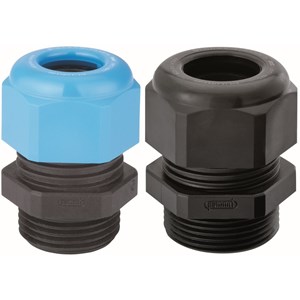

Kabelförskruvning - HSK-EX-ACTIVE-Serien
hsk-ex-active_VP
Material: Fibreglass reinforced polyamide
Seal: NBR
Protection: IP 68 -10 bar within the specified clamping range
Termperature: - 20°C to +85°C
Colors: Black or Blue-Black
O-ring: NBR
FKM and WMQ O-ring upon request.
Halogen-free.
Seal: NBR
Protection: IP 68 -10 bar within the specified clamping range
Termperature: - 20°C to +85°C
Colors: Black or Blue-Black
O-ring: NBR
FKM and WMQ O-ring upon request.
Halogen-free.
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Polyamide (PA)
- RAL-number:
- 0-9005 .
- Thread type:
- Metric, NPT
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Black, Other
- Surface protection:
- Untreated
- Operating temperature:
- -20-85 °C
- Material:
- Plastic
- Halogen free:
- Yes
- Wrench width:
- 15-68 mm
- Availability:
- No
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- Model:
- Straight
- Material quality:
- Stainless steel 304 (V2A)
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- Yes
- Screened:
- Yes
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Untreated
- Operating temperature:
- -60-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 30 mm
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 20-24 mm
- Availability:
- No
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-130 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 14 mm
- Availability:
- No
- Pressure-compensating:
- No
- Degree of protection (IP):
- IP68
- With strain relief:
- Yes
- Model:
- Straight
- Material quality:
- Brass
- RAL-number:
- 0 N/A
- Thread type:
- Metric
- Glass-fibre reinforced:
- No
- Shock resistant:
- Yes
- Bend radius protection/trumpet flare:
- No
- With locknut:
- No
- Snapping in opening:
- No
- Multi seal area:
- No
- Flat cable coupling:
- No
- Explosion-tested version:
- Yes
- For armoured cable:
- No
- EMC-version:
- No
- Screened:
- No
- Type of sealing:
- Sealing ring
- For Ex-zone gas:
- 1, 2
- For Ex-Zone dust:
- 20, 21, 22
- Colour:
- Brass
- Surface protection:
- Nickel-plated
- Operating temperature:
- -20-95 °C
- Material:
- Metal
- Halogen free:
- Yes
- Wrench width:
- 20 mm
- Total: 6
