- Total: 4

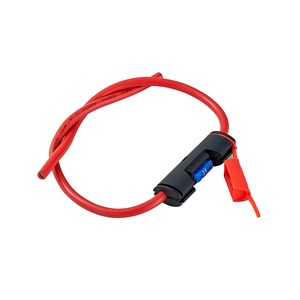

Fuse holder with cover and cable, micro
ZC 6012_VP
181405
Svart hus med röd förtent mässingskabel.
Kabellängd: Se nedan.
Kabelarea: AWG 12 (3.31 mm²)
Skyddsklass: IP54
Svart hus med röd förtent mässingskabel.
Kabellängd: Se nedan.
Kabelarea: AWG 12 (3.31 mm²)
Skyddsklass: IP54
- Permitted cable outer temperature after assembling without vibration:
- -30-70 °C
- Connection type:
- Other
- Rated current:
- 30 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
Flat Fuses Adapter
95556
An adapter for the simple installation of an additional fused connection. Maximum load for the additional connection: 10A.
Remove the fuse from an existing fuse holder and insert the adapter. Reinsert the fuse into the lower slot of the adapter. Then insert a new fuse into the upper slot and connect the new consumer device to the splice terminal.
Cable: 1.3 mm² (AWG 16) red cable, 100 mm long, with a blue splice terminal.
Fuse holder: PA 66 with CuZn clips that are Sn-plated.
UL 94V-0.
Remove the fuse from an existing fuse holder and insert the adapter. Reinsert the fuse into the lower slot of the adapter. Then insert a new fuse into the upper slot and connect the new consumer device to the splice terminal.
Cable: 1.3 mm² (AWG 16) red cable, 100 mm long, with a blue splice terminal.
Fuse holder: PA 66 with CuZn clips that are Sn-plated.
UL 94V-0.
- Connection type:
- Other
- Rated current:
- 30-40 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
Flat Fuses Adapter - Consumer pack
Säkringsadapter_för_flatsäkringar_pin-pac_vp
An adapter for the simple installation of an additional fused connection. Maximum load for the additional connection: 10A.
Remove the fuse from an existing fuse holder and insert the adapter. Reinsert the fuse into the lower slot of the adapter. Then insert a new fuse into the upper slot and connect the new consumer device to the splice terminal.
Cable: 1.3 mm² (AWG 16) red cable, 100 mm long, with a blue splice terminal.
Fuse holder: PA 66 with CuZn clips that are Sn-plated.
UL 94V-0.
Remove the fuse from an existing fuse holder and insert the adapter. Reinsert the fuse into the lower slot of the adapter. Then insert a new fuse into the upper slot and connect the new consumer device to the splice terminal.
Cable: 1.3 mm² (AWG 16) red cable, 100 mm long, with a blue splice terminal.
Fuse holder: PA 66 with CuZn clips that are Sn-plated.
UL 94V-0.
- Connection type:
- Other
- Rated current:
- 30-40 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other

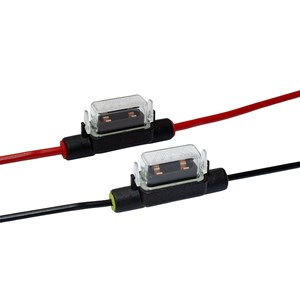

Fuse holder with cover, micro
95555
Splash waterproof holder HLP7325-HLP7335, miniOTO Low Profile fuse
1.5 mm² black or 2.5mm² red cable, 135mm each side
clear cover with integrated O-ring seal
Phosphor bronze CuSn fuse receptacles
Splash waterproof with cable seals, O-ring and clear cover ( IP55 )
1.5 mm² black or 2.5mm² red cable, 135mm each side
clear cover with integrated O-ring seal
Phosphor bronze CuSn fuse receptacles
Splash waterproof with cable seals, O-ring and clear cover ( IP55 )
- Connection type:
- Other
- Rated current:
- 30 A
- Rated voltage:
- 58 V
- Type of current:
- DC
- Mounting method:
- Other
- Total: 4
