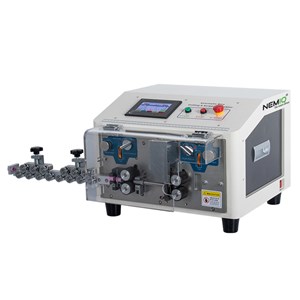

NTCS 6 is a electrically powered cutting and stripping machine for solid and multi-stranded cables. NTCS 6 is designed to process cables with cross-sections ranging from 0.1 to 6 mm² with a productivity of up to 8000 pieces per hour.

Technical data:
Function: Wire cutting, dual-end stripping, mid-stripping.
Conductor cross-section: 0.1-6 mm² (AWG30-10)
Cutting length: 0.1 mm - 99999.9 mm
Stripping length: Front end 0.1-250 mm, Rear end 0.1-70 mm
Stripping accuracy: 0.01 mm
Production capacity: 3000-8000 / h.
Knife material: Tungsten steel / high-speed steel.
Power supply: 220-240V AC / 50Hz
Weight: 31.5 kg
Dimensions: 470 x 450 x 350 mm

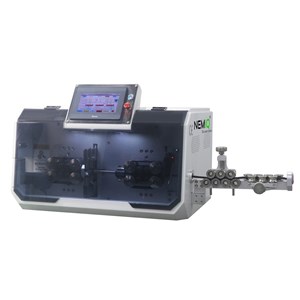

NTCS 70 is an electrically powered wire cutting and stripping machine designed for both solid and multi-stranded cables. It is engineered to process cables with cross-sections ranging from 1.5 to 70 mm², with an productivity of up to 2500 pieces per hour.

Technical data:
Stripping capability: 3-layer stripping for shield cable
Wire material: Wide range of industrial wires
Conductor cross-section: 1.5-70 mm²
Cutting length 1-100,000 mm
Cutting length tolerance: < 0.002*L
Stripping length (side 1): 0-400 mm
Stripping length (side II): 0-180 mm
Slitting function: Optional
Maximum guide tube diamete: 20 mm
Display mode: 7-inch touch screen
Memory capacity: 100 programs
Blade material: High speed steel
Productivity: 1500-2500 pcs./h
Power supply: 220-240V AC / 50Hz
Power: 800 W
Weight: 80 kg
Dimension: 700 x 640 x 480 mm

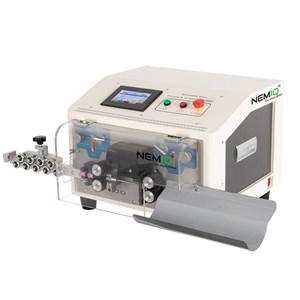

NTCS 16 is a electrically powered cutting and stripping machine for solid and multi-stranded cables. NTCS 16 is designed to process cables with cross-sections ranging from 1 to 16mm² with a productivity of up to 5000 pieces per hour.

• Automatic correction of the cutting length saves a significant amount of time and ensures cutting accuracy.
• Step function clearly displays each individual step, which is highly beneficial for initial setup, operator training, and troubleshooting.
• Wire shortage detection halts the machine automatically and provides audible alarm in case the wire runs out.

Technical data:
Function: Wire cutting, dual-end stripping, mid-stripping.
Conductor cross-section: 1-16 mm² (AWG30-8)
Max diameter: 10 mm
Cutting length: 0.1 mm-99999.9 mm
Stripping length: Front end 0.1-250 mm, Rear end 0.1-70 mm.
Stripping accuracy: 0.01 mm
Production capacity: 2000-5000 / h.
Knife material: Tungsten steel / high-speed steel.
Power supply: 220-240V AC / 50Hz
Weight: 36.5 kg
Dimensions: 470 x 450 x 350 mm

ZDBX-4 är en eldriven maskin som klipper, skalar och semiskalar solida och mångtrådiga kablar. Maskinen kan skala i båda ändar på den klippta kabeln och även göra en semiskalning mitt på en kabellängd.

Levereras med 5 st guidehylsor, 2 st + 2 st drivhjulsguider, 1 set extraskär, sexkantsnycklar samt en utbytes drivrem.

Tekniska data
Dimensioner: 430×360×268 mm
Vikt: 37 kg
Anslutning: 220 V
Effekt: 300 W
Skallängd: 1-30 mm
Min. klipplängd: 0.1 mm
Klipptoleranser: (0.2±0.002 L) mm
Skalar isolering: PVC, teflon, silikon
Kapacitet: AWG 28-8 (0.08-8.35 mm²), max YD 5 mm
Hastighet: Vid längd 100 mm, 60 st/min

NTCSM 30 is a cutting and stripping machine that twists the copper wire and has a wide range of applications, designed to process single conductors and multi-conductor cables (up to 10 conductors) with cross-sections from 0.75 to 30mm² (OD 18 mm).

• Equipped with V-cut for stripping the cable sheath and straight cutters for up to 10 inner conductors (special cutters are needed for rubber insulation).
• The twisting unit removes insulation and twists the copper.
• Automatic correction of cutting length saves a lot of time and ensures cutting accuracy, adjustable in 0.1mm increments.
• Left and right feeding wheels are adjustable via the touch screen, and the machine can automatically change feeding wheels and roller pressure as needed, no need for manual adjustment.

It is recommended to complement NTCSM 30 with an un-winder to ensure accurate cable lengths.

Technical data:
Function: Cutting, Stripping, and Twisting.
Conductor cross-section: 0.75-30mm2.
Max diameter: 18 mm.
Cable: Single-core cable, Multi-core cable, PVC cable.
Number of conductors: Max 10 conductors.
Cutting length: 1-99999.9 mm
Tolerance for cutting length: 0.002*L (L=cutting length).
Stripping length front end:
Cable sheath: Full strip 10-200mm, half strip 1-800mm
Inner conductors: Full strip 1-50mm, half strip 5-200mm
Stripping length back end:
Cable sheath: Full strip 10-80mm, half strip 1-300mm
Inner conductors: Full strip 1-50mm, half strip 5-80mm
Production capacity: 2000pcs/h, (900pcs/h for multi-core cables).
Knife material: High-speed steel.
Power supply: 220-240V
Power: 1.1 kW
Compressed air connection: 0.5-0.7MPa
Weight: 100kg
Dimensions: 680*605*520mm
.
