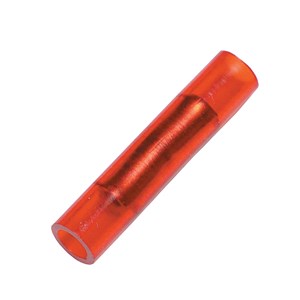

Butt splices AE-series
136101
Polycarbonate-insulated terminals. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Green, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -150-105 °C
- Material:
- Copper
- Voltage max:
- 600V
