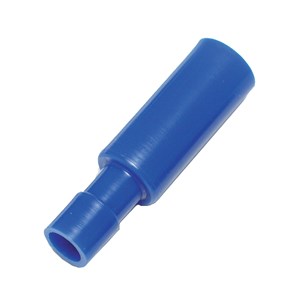

Bullet female terminals A-series
20101
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-15 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
- UL-File No.:
- E42024

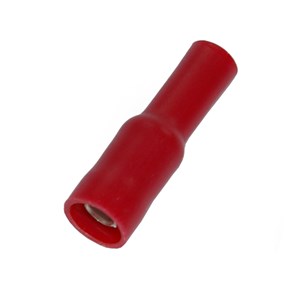

Bullet female terminals A PL-series
15901
PVC-insulated terminals. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
Bullet female terminals AA-series
18201
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
