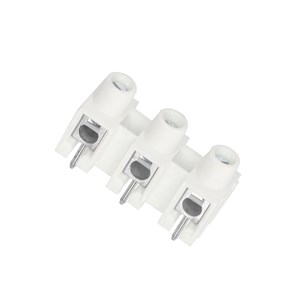

Stiftplint - GSK 801-serien med trådskydd
Stiftplint - 801_vp
Stiftplintar med trådskydd.
Spänning: 300 V
Temperatur: +85° C
Färg: Vit
Material: PA 66
Spänning: 300 V
Temperatur: +85° C
Färg: Vit
Material: PA 66
- Number of poles:
- 2 .
- Rated voltage:
- 300 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Soldering flag connection
- Transparent:
- No

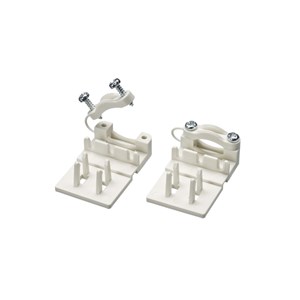

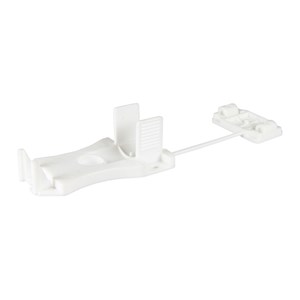

Dragavlastning ZEL 500, 3-pol
Dragavlastning ZEL 500_3-pol_vp
Dragavlasning ZEL 500 3-pol för kopplingsplintar
Poltal: 3
Temperatur: +85° C
Material: PA 6
Poltal: 3
Temperatur: +85° C
Material: PA 6
Dragavlastning ZEL 900
Dragavlastning ZEL 900_vp
Dragavlasning ZEL 900 för kopplingsplintar
Min kabeldiameter: 5.0 mm
Max kabeldiameter: 12.0 mm
Temperatur: +85° C
Material: PC
Min kabeldiameter: 5.0 mm
Max kabeldiameter: 12.0 mm
Temperatur: +85° C
Material: PC

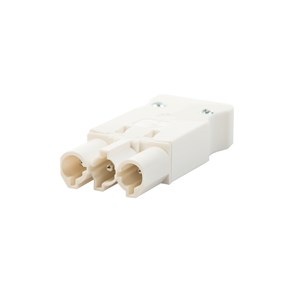

Kabelkontakt AC 166 GSTF, 3-pol, Vit
Kabelkontakt AC 166 GST serien_vit_vp
Kabelkontakt AC 166 GSTF serien, 3-pol, Vit
Poltal: 3
Spänning: 250 V
Ström: 20A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6
Kabeldiameter min: 4.5 mm
Kabeldiameter max: 5,5mm
Poltal: 3
Spänning: 250 V
Ström: 20A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6
Kabeldiameter min: 4.5 mm
Kabeldiameter max: 5,5mm

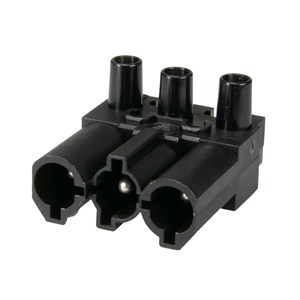

Kabelkontakt AC 166 serien, 3-pol, Svart
Kabelkontakt AC 166 serien_3-pol Svart_vp
Kabelkontakt AC 166 serien, 3-pol, Svart, hona och hane
Poltal: 3
Spänning: 250 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6
Poltal: 3
Spänning: 250 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6

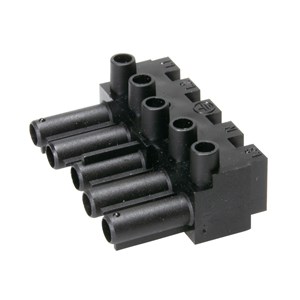

Kabelkontakt AC 166 serien, 5-pol, Svart
Kabelkontakt AC 166 serien_5-pol svart_vp
Kabelkontakt AC 166 serien, 5-pol, Svart, hona och hane
Poltal: 5
Spänning: 400 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6
Poltal: 5
Spänning: 400 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6.6

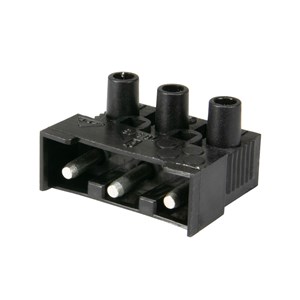

Stiftplint 3-pol, 160/163 serien, hane, hona, dragavlastare mm
Stiftplint 3-pol_160/163 serien Hane-Hona_vp
Stiftplint 160/163-serien hane och hona med skruvkontakt
Poltal: 3
Spänning: 400 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6
Poltal: 3
Spänning: 400 V
Ström: 16A
Skruvanslutning: 2.5 mm²
Temperatur: +70° C
Material: PA 6
- Number of poles:
- 3 .
- Type of accessory/spare part:
- Other
- Rated current:
- 16 A
- Rated voltage:
- 250-400 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
- Halogen free:
- No
KOPPLINGSPLINTAR LED - S 3050
66640
Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Number of poles:
- 1 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection
- Number of clamp positions per pole:
- 2 .
- Max. rated current:
- 6 A
- With PE-rail:
- No
- With N-rail:
- No

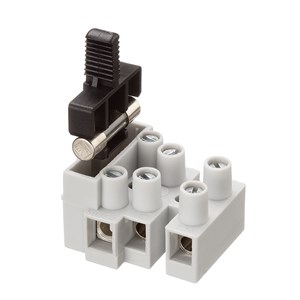

Terminal strip - 503 SI med Fuse holder
Kopplingsplint - 1003 SI med säkringshållare_vp
1003 SI-serien med säkringshållare och skruvanslutning
Spänning: 500 V
Ström: 16A
Glassäkring: 5 x 20 mm
Skruvanslutning med trådskydd: 0.5-4.0 mm²
Temperatur: +85° C
Material: PA 66
Spänning: 500 V
Ström: 16A
Glassäkring: 5 x 20 mm
Skruvanslutning med trådskydd: 0.5-4.0 mm²
Temperatur: +85° C
Material: PA 66
- Number of poles:
- 3 .
- Rated voltage:
- 500 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
- Halogen free:
- Yes

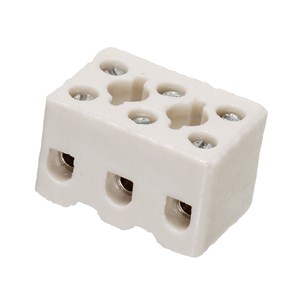

Plintar porslin
203001
Porcelain connectors type 157 - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm
Distance: 10.5 mm
Cable area: up to 6 mm² (VDE 2.5 mm²) with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage rating: 400 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.2 mm, cc 10.5 mm
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm
Distance: 10.5 mm
Cable area: up to 6 mm² (VDE 2.5 mm²) with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage rating: 400 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.2 mm, cc 10.5 mm
- Number of poles:
- 2-3 .
- Rated voltage:
- 450 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Other
- Closing plate required:
- No
- Transparent:
- No
- Colour:
- White
- Halogen free:
- Yes

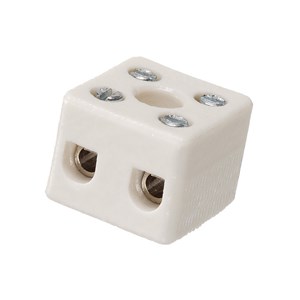

Plintar porslin
203002
Connectors porcelain type 153 - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm
Distance: 10 mm
Cable area: up to 6mm² with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage ratin 380 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.3 mm, cc 10 mm
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm
Distance: 10 mm
Cable area: up to 6mm² with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage ratin 380 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.3 mm, cc 10 mm
- Number of poles:
- 2 .
- Rated voltage:
- 450 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Mounting method:
- Surface mounted
- Material insulation body:
- Other
- Closing plate required:
- No
- Transparent:
- No
- Colour:
- White
- Halogen free:
- Yes

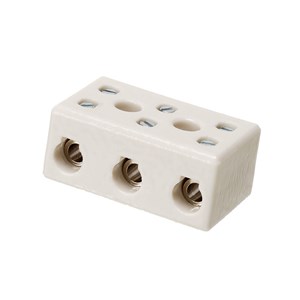

Plintar porslin
203003
Connectors porcelain type PM - Adels Contact
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M4 x 9 mm.
Torque: 1.2 Nm
Distance: 18 mm
Cable area: up to 16 mm² with wire protection DS up to 6 mm²
Wire protectors: Tinned bronze
Voltage rating: 380 V
Current rating: EN60598 41 A, EN60998 41 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 9.5-10 mm
Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M4 x 9 mm.
Torque: 1.2 Nm
Distance: 18 mm
Cable area: up to 16 mm² with wire protection DS up to 6 mm²
Wire protectors: Tinned bronze
Voltage rating: 380 V
Current rating: EN60598 41 A, EN60998 41 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 9.5-10 mm
- Number of poles:
- 2-3 .
- Rated voltage:
- 450 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
- Halogen free:
- Yes

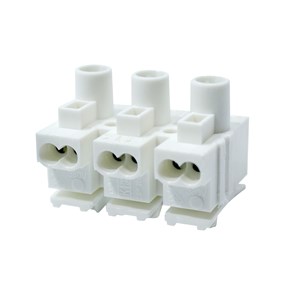

Kopplingsplint - 900, skruvkontakt och snabbkoppling
Kopplingsplint - 900 Serien_vp
900-serien med snabbkoppling och skruvanslutning
Spänning: 400 V
Ström: 17.5A
Temperatur: +85° C
Material: PA 66
Spänning: 400 V
Ström: 17.5A
Temperatur: +85° C
Material: PA 66
- Number of poles:
- 3 .
- Rated voltage:
- 450 V
- Type of electrical connection 1:
- Clip connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
- Halogen free:
- Yes

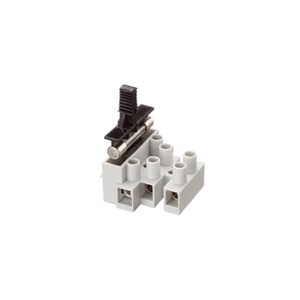

Terminal strip - 503 SI med Fuse holder
kopplingsplint-503 SI_VP
503 SI-serien med säkringshållare och skruvanslutning
Spänning: 400 V
Ström: 10A
Glassäkring: 5 x 20 mm
Skruvanslutning med trådskydd: 0.5-2.5 mm²
Temperatur: +85° C
Material: PA 66
Spänning: 400 V
Ström: 10A
Glassäkring: 5 x 20 mm
Skruvanslutning med trådskydd: 0.5-2.5 mm²
Temperatur: +85° C
Material: PA 66
- Number of poles:
- 1-5 .
- Rated voltage:
- 400 V
- Type of electrical connection 1:
- Screw connection
- Type of electrical connection 2:
- Screw connection
- Transparent:
- No
- Halogen free:
- Yes
