- Total: 3

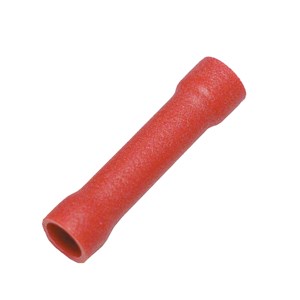

Butt splices A-series
20001
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Number of branches:
- 0 N/A
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
- UL-File No.:
- E42024
Butt splices AB-series
18101
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Green, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
- UL-File No.:
- E44245
Butt splices A PL-series
15801
PVC-insulated terminals. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- UL model
- Max. current (Imax):
- 19-48 A
- Number of branches:
- 0 N/A
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 600 V
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Strip length:
- 7.5 mm
- Surface protection:
- Tinned
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
- Total: 3
