- Total: 15
RADOX 125 Multi conductor unscreened
Halogen-free cable suitable both for fixed installation or as a connection cable in dry, damp and wet areas both indoors and outdoors.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
- Number of cores:
- 2-27 .
- Protective conductor:
- No
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Conductor material:
- Copper
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 1000 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RADOX GKW-LW - Multi conductor
Halogenfri styrkabel för skyddad fast förläggning i tågapplikationer.
Kabeln har väldigt liten ytterdiameter och används i trånga utrymmen. Användningsområden är styr- och apparatskåp, kontrollpaneler, signalkretsar och inre styrkabel i övrig tågutrustning. Tålig mot hög mekanisk belastning, olja och bränsle.
Uppbyggnad
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation innermantel: RADOX GKW P/ GKW HP (polyolefin-copolymer)
Ledarfärg: Vita, numrerade Transparant plastfolie Ledarisolation yttermantel: RADOX GKW S (polyolefin-copolymer)
Mantelfärg: Svart
Tekniska data:
Driftspänning: 600/1000 V AC, 750/1500 V DC
Provspänning: 3500 V (50 Hz, 5 min)
Temp. område: -40ºC till +120ºC
Minsta böjradie: 3 x kabelns diameter (se datablad)
Godkännanden, flambeständighet
BS 6853
DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 kat. D
BS 6853 kat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1
EN 50265-2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
Kabeln har väldigt liten ytterdiameter och används i trånga utrymmen. Användningsområden är styr- och apparatskåp, kontrollpaneler, signalkretsar och inre styrkabel i övrig tågutrustning. Tålig mot hög mekanisk belastning, olja och bränsle.
Uppbyggnad
Ledare: Förtent flertrådig koppar enligt IEC 60228 klass 5
Ledarisolation innermantel: RADOX GKW P/ GKW HP (polyolefin-copolymer)
Ledarfärg: Vita, numrerade Transparant plastfolie Ledarisolation yttermantel: RADOX GKW S (polyolefin-copolymer)
Mantelfärg: Svart
Tekniska data:
Driftspänning: 600/1000 V AC, 750/1500 V DC
Provspänning: 3500 V (50 Hz, 5 min)
Temp. område: -40ºC till +120ºC
Minsta böjradie: 3 x kabelns diameter (se datablad)
Godkännanden, flambeständighet
BS 6853
DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 kat. D
BS 6853 kat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1
EN 50265-2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
- Number of cores:
- 2-12 .
- Colour outer sheath:
- Black
- Nominal voltage:
- 1500 V
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Low smoke (according to EN 61034-2):
- Yes
RXL 125 S2
Halogen-free cable suitable both for fixed installation or as a connection cable in dry, damp and wet areas both indoors and outdoors.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
Due to the good mechanical properties and the high chemical resistance, RADOX 125 is especially suitable in industry in demanding environments, eg for machines and industrial equipment.
- Number of cores:
- 4-16 .
- Protective conductor:
- No
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Flame retardant:
- According to IEC/EN 60332-1-2
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Nominal voltage:
- 1000 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
RADOX 3 GKW, multi conductor
Halogen-free control cable for protected fixed installation in train applications. The cable has a very small outer diameter and is used in tight spaces.
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Resistant to high mechanical loads, oil and fuel.
Structure
Conductor: Tinned multi-wire copper according to IEC 60228 class 5
Conductor insulation inner jacket: RADOX GKW P / GKW HP (polyolefin copolymer)
Conductor color: White, numbered. Transparent plastic foil
Conductor insulation outer sheath: RADOX GKW S (polyolefin copolymer)
Sheath color: Black
Technical data:
Operating voltage: 600/1000 V AC, 750/1500 V DC
Test voltage: 3500 V (50 Hz, 5 min)
Temp. range: -40ºC to + 120ºC
Minimum bending radius: 3 x cable diameter (see data sheet)
Approvals, flame resistance
BS 6853
DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 cat. D
BS 6853 cat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1
EN 50265 -2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Resistant to high mechanical loads, oil and fuel.
Structure
Conductor: Tinned multi-wire copper according to IEC 60228 class 5
Conductor insulation inner jacket: RADOX GKW P / GKW HP (polyolefin copolymer)
Conductor color: White, numbered. Transparent plastic foil
Conductor insulation outer sheath: RADOX GKW S (polyolefin copolymer)
Sheath color: Black
Technical data:
Operating voltage: 600/1000 V AC, 750/1500 V DC
Test voltage: 3500 V (50 Hz, 5 min)
Temp. range: -40ºC to + 120ºC
Minimum bending radius: 3 x cable diameter (see data sheet)
Approvals, flame resistance
BS 6853
DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 cat. D
BS 6853 cat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100 IEC 60332-1
EN 50265 -2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
- Number of cores:
- 3 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Nominal voltage:
- 600 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Core colour:
- Several
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 70.72 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
RADOX TENUIS -TW 600V MM
Halogen-free control cable for protected fixed installation in train applications. The cable has a very small outer diameter and is used in tight spaces, smaller, lighter and more flexible than previous cables for railway application.
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Guidelines for selection and installation are described in the standards EN 50355 and EN 50343. Resistant to high mechanical loads, oil and fuel.
Structure
Conductor: Tinned multi-wire copper according to IEC 60228 class 5
Conductor insulation inner jacket: RADOX EI 303 (polyolefin copolymer)
Conductor color: White, numbered and g = green / yellow. Transparent plastic foil
Conductor insulation outer sheath: RADOX EM 104 (polyolefin copolymer)
Sheath color: Black with yellow text
Technical data:
Operating voltage: 600/1000 V AC, 750/1500 V DC
Test voltage: 3500 V (50 Hz, 5 min)
Temp. range: -40ºC to + 120ºC
Minimum bending radius: 3 x cable diameter (see data sheet)
Approvals:
EN 50355 and EN 50343, flame resistance
BS 6853 DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 cat. D
BS 6853 cat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100
IEC 60332-1
EN 50265 -2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
Areas of use are control and control cabinets, control panels, signal circuits and internal control cable in other train equipment. Guidelines for selection and installation are described in the standards EN 50355 and EN 50343. Resistant to high mechanical loads, oil and fuel.
Structure
Conductor: Tinned multi-wire copper according to IEC 60228 class 5
Conductor insulation inner jacket: RADOX EI 303 (polyolefin copolymer)
Conductor color: White, numbered and g = green / yellow. Transparent plastic foil
Conductor insulation outer sheath: RADOX EM 104 (polyolefin copolymer)
Sheath color: Black with yellow text
Technical data:
Operating voltage: 600/1000 V AC, 750/1500 V DC
Test voltage: 3500 V (50 Hz, 5 min)
Temp. range: -40ºC to + 120ºC
Minimum bending radius: 3 x cable diameter (see data sheet)
Approvals:
EN 50355 and EN 50343, flame resistance
BS 6853 DIN 5510
NF F16-101
BS 4066-3
BS 6583
BS 6853 cat. D
BS 6853 cat. B
DIN EN 50265-2-1
DIN EN 50266-2-4
DIN EN 50266-2-5
DIN EN 50268-2
NF C32-070 TEST 2
NF X10-702-2
NF X70-100
IEC 60332-1
EN 50265 -2-1 IEC 60332-3-24
EN 50266-2-4 IEC 60754-1
EN 50267-2-1 IEC 60754-2
EN 50267-2-3 IEC 61034-2
EN 50268-2
- Number of cores:
- 2-12 .
- Colour outer sheath:
- Black
- Nominal voltage:
- 1000 V
- Colour:
- Black
- Material insulation:
- Polyolefin (POE)
- Conductor surface:
- Tinned
- Halogen free:
- Yes
CAN, CAN-FD, FlexRay
RADOX Databus-kablar är speciellt designade för de krävande kraven på spårbunden verksamhet.
• RADOX MVB – Databusskablar (buss för flera fordon)
• RADOX WTB – Databusskablar (tågbuss)
• RADOX CAN – Databusskablar (styrenhetsnätverk)
Funktioner
• Utmärkt dataöverföringsprestanda
• Utmärkt screeningseffektivitet
• Halogenfri och flamskyddsmedel
• Hög motståndskraft mot värme, kyla, ozon och väderpåverkan
• Lätt att av mantla
• Lödbeständig
• RADOX MVB – Databusskablar (buss för flera fordon)
• RADOX WTB – Databusskablar (tågbuss)
• RADOX CAN – Databusskablar (styrenhetsnätverk)
Funktioner
• Utmärkt dataöverföringsprestanda
• Utmärkt screeningseffektivitet
• Halogenfri och flamskyddsmedel
• Hög motståndskraft mot värme, kyla, ozon och väderpåverkan
• Lätt att av mantla
• Lödbeständig
- Number of cores:
- 2 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Black, Other
- Permitted cable outer temperature after assembling without vibration:
- -40-120 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 120 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Core colour:
- Several
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 52 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Availability:
- Yes
- Number of cores:
- 3 .
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Conductor category:
- Class 5 = flexible
- Conductor surface:
- Tinned
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Availability:
- No
- Number of cores:
- 3 .
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Conductor category:
- Class 5 = flexible
- Conductor surface:
- Tinned
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Availability:
- No
- Number of cores:
- 7 .
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Conductor category:
- Class 5 = flexible
- Conductor surface:
- Tinned
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Availability:
- No
- Number of cores:
- 5 .
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Conductor category:
- Class 5 = flexible
- Conductor surface:
- Tinned
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Availability:
- No
- Number of cores:
- 5 .
- Material outer sheath:
- None
- Colour outer sheath:
- Black
- Conductor material:
- Copper
- Screen:
- No
- Drain wire:
- No
- Conductor category:
- Class 5 = flexible
- Conductor surface:
- Tinned
- Reaction-to-fire according to EN 13501-6: Class:
- Eca
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A

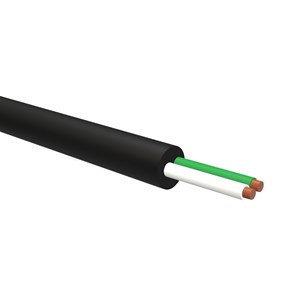

EN-Cable, multi conductor
Halogenfria, elektronstråle-tvärlänkade kablar med förbättrat beteende vid brand, lätt att skala, lödkolvbeständig och flexibel. Uppfyll kraven EN 50264-3-2
Kablarna är avsedda för permanent installation i rälsfordon eller för applikationer där en begränsad växelvis böjspänning uppstår under drift. Riktlinjer för val och installation beskrivs i standarderna EN 50355 och EN 50343.
RADOX EN 50264- 3- 2 ,EN 50306-4600V MM Flerledarkablar med reducerade väggmått
Nominell spänning: 600 / 1000 V AC
Risknivå: MM (extra låg temperatur, extra olja och extra bränslebeständig)
Kablarna är avsedda för permanent installation i rälsfordon eller för applikationer där en begränsad växelvis böjspänning uppstår under drift. Riktlinjer för val och installation beskrivs i standarderna EN 50355 och EN 50343.
RADOX EN 50264- 3- 2 ,EN 50306-4600V MM Flerledarkablar med reducerade väggmått
Nominell spänning: 600 / 1000 V AC
Risknivå: MM (extra låg temperatur, extra olja och extra bränslebeständig)
- Number of cores:
- 2 .
- Material core insulation:
- Polyolefin
- Specification core insulation:
- Other
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Polyolefin
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Other
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -40-125 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 125 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Insulation integrity:
- N/A
- Drain wire:
- No
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Black
- Core colour:
- Several
- Conductor surface:
- Tinned
- Halogen free:
- Yes
- Min. permitted bending radius, stationary application/permanent installation:
- 24.9 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- Yes
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

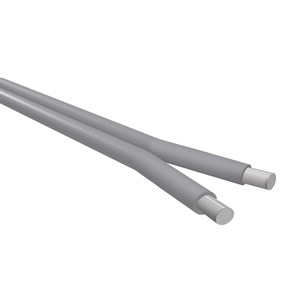

SIFF, Silikonkabel
Silikon-mantlade flerledarkabel erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installation i offentliga byggnader.
Uppbyggnad Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Grå.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie: Flexibel: 12 x kabeldiametern Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet
VDE 0295. VDE 0293. VDE 0293-308. IEC 60332-1-2 (F2)
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installation i offentliga byggnader.
Uppbyggnad Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Grå.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie: Flexibel: 12 x kabeldiametern Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet
VDE 0295. VDE 0293. VDE 0293-308. IEC 60332-1-2 (F2)
- Number of cores:
- 2 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - silicone rubber (SIR)
- Core identification:
- None
- Protective conductor:
- No
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Grey
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -60-180 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 180 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes
- Conductor category:
- Class 5 = flexible
- Colour:
- Grey
- Material insulation:
- Silicone
- Core colour:
- Grey
- Conductor surface:
- Tinned
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No

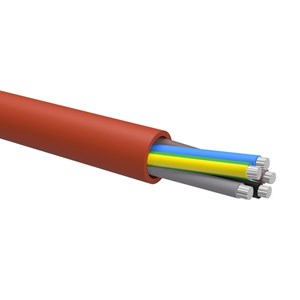

SIHF, Silikonkabel
Silikon-mantlade flerledarkablar erbjuder elingenjörer och elektriker ett fantastiskt utbud av alternativ.
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installataion i offentliga byggnader.
Uppbyggnad
Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna färgmärkta tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Röd-Brun.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie:
Flexibel: 12 x kabeldiametern
Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet VDE 0295.VDE 0293.VDE 0293-308IEC 60332-1-2 (F2)
Perfekt för höga eller låga temperaturer kommer dessa kablar fungera utmärkt mellan -50ºC och 180ºC.
Vid brand producerar de minimal rök och kan användas till installataion i offentliga byggnader.
Uppbyggnad
Ledare: Fintrådig ledare av förtent koppar.
Ledarisolering: Silikonbas.
Ledarisolation: Ledarna färgmärkta tvinnade i lager.
Yttermantel: Silikonbas.
Mantelfärg: Röd-Brun.
Flamhämmande.
Tekniska data:
Driftspänning: 300/500 V
Provspänning: 2000 V
Temperaturområde: -50ºC till +180ºC
Minsta böjradie:
Flexibel: 12 x kabeldiametern
Fast: 4 x kabeldiametern
Godkännanden, Flambeständighet VDE 0295.VDE 0293.VDE 0293-308IEC 60332-1-2 (F2)
- Number of cores:
- 2-7 .
- Material core insulation:
- Rubber
- Specification core insulation:
- Rubber - silicone rubber (SIR)
- Core identification:
- Colour
- Protective conductor:
- No
- Material outer sheath:
- Rubber
- Specification material outer sheath:
- Other
- Colour outer sheath:
- Red
- Flame retardant:
- According to IEC/EN 60332-1-2
- Permitted cable outer temperature after assembling without vibration:
- -60-180 °C
- Conductor material:
- Copper
- Twisted cores:
- No
- Max. conductor temperature:
- 180 °C
- Screen:
- No
- Armouring/reinforcement:
- None
- Drain wire:
- No
- Nominal voltage:
- 500 V
- Halogen free:
- Yes, No
- Conductor category:
- Class 5 = flexible
- Colour:
- Brown/Red
- Material insulation:
- Silicone
- Core colour:
- Red, Several
- Conductor surface:
- Tinned
- Halogen free:
- No
- Min. permitted bending radius, stationary application/permanent installation:
- 25.6-88 mm
- Reaction-to-fire according to EN 13501-6: Class:
- N/A
- Reaction-to-fire according to EN 13501-6: Smoke production:
- N/A
- Reaction-to-fire according to EN 13501-6: Flaming droplets/particles:
- N/A
- Reaction-to-fire according to EN 13501-6: Acidity:
- N/A
- Low smoke (according to EN 61034-2):
- No
- Low temperature resistant (according to EN 60811-504+505+506):
- No
- Oil resistant according to EN IEC 60811-404:
- No
- Total: 15
