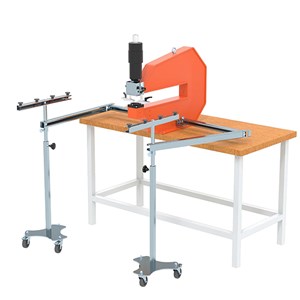

The door support is equipped with 2 pcs of height-adjustable mobile supports for large and heavy workpieces. If the workpiece is moved evenly, the mobile supports travels along with the workpiece. For processing flanged sheets up to 35 mm.

Flexible mounting thanks to the universally designed mounting unit. Attachment either at the bow punch or at/on the working plate.

Space requirement for processing 0.8 m x 2 m workpieces: 3 m x 2 m (width x depth).

Byggelstans för stansning i plåt med kombinerat längd- och djupstopp.

Teknisk data:
Runda stansar: upp till 40 mm
Kvadratiska sansar: upp till 25 x 25 mm
Längdstopp: justerbart från 0 till 500 mm
Djupstopp: justerbart från 23 till 300 mm
Stanstryck: 45 kN
Arbetstryck: 450 bar
