- Total: 8
Lightflex slotted, PA6, Automotive Light
Lightflex slitsad PA6
Slotted, halogen free, non-flammable, heat-stable and UV resistant. A standard conduit with good flexibility that gives a very good protection for electrical wiring against moisture, dirt and mechanical damage. The material is also resistant to oils, grease, solvents and fuels of various kinds. For the automotive industry, machine and apparatus construction as well as workshops.
- Compressive strength:
- 300 N
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- Yes
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
NLFLEX, PA6, black, slotted, automotive, 10m
NLFLEX-PA6-svart-slitsad-automotive-10m
Slotted, halogen free, non-flammable, heat-stable and UV resistant. A standard conduit with good flexibility that gives a very good protection for electrical wiring against moisture, dirt and mechanical damage. The material is also resistant to oils, grease, solvents and fuels of various kinds. For the automotive industry, machine and apparatus construction as well as workshops.
- Compressive strength:
- 300 N
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- Yes
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
Lightflex slotted, PA6, Automotive Light
Lightflex slitsad PA6 – Korta längder_vp
Slotted, halogen free, non-flammable, heat-stable and UV resistant. A standard conduit with good flexibility that gives a very good protection for electrical wiring against moisture, dirt and mechanical damage. The material is also resistant to oils, grease, solvents and fuels of various kinds. For the automotive industry, machine and apparatus construction as well as workshops.
- Compressive strength:
- 300 N
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- Yes
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
NYLFLEX, slitted PA6, black, automotive
Nylflex_PA6_Svart_slitsad_vp
Slitsad, halogenfri, svårantändlig, värmestabil och UV-beständig. En standardslang med god flexibilitet som ger ett mycket gott skydd för elektriska ledningar mot fukt, smuts och mekanisk åverkan. Materialet är dessutom motståndkraftigt mot oljor, fett, lösningsmedel och drivmedel av olika slag. För fordonsindustrin, maskin och apparatbyggen samt för verkstäder.
Material: PA 6
Temperaturområde: -40° C till +120° C
Färg: Svart RAL 8022
Övriga egenskaper: UV-beständig, flamavvisande
Tryckhållfasthet: 350 N / 50 mm, slag 6J
Material: PA 6
Temperaturområde: -40° C till +120° C
Färg: Svart RAL 8022
Övriga egenskaper: UV-beständig, flamavvisande
Tryckhållfasthet: 350 N / 50 mm, slag 6J
- Compressive strength:
- 350 N
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP66
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- VDE tested:
- Yes
- Approved according to CSA:
- No
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- No
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Colour:
- Orange
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- No
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
- Fire resistance according to UL94:
- HB
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- No
- With draw wire:
- No
- High conducting inner coating:
- No
- Colour:
- Black
- Operating temperature:
- -40-120 °C
- Material:
- Polyamide 6
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- No
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No

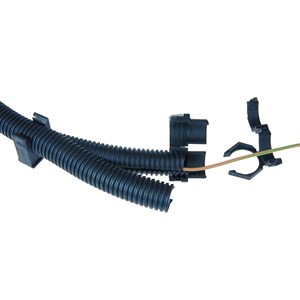

Duplex, PP, slitsad, dubbel
81801
Slangen består av två slitsade slangar som är sammansatta. Kablaget läggs i och sen vrids slangarna så att den inre slangens slits döljs av den yttre slangen.
Material: Polypropylen
Temperaturområde: -40° C till +135° C
Färg: Svart RAL 8022
Övriga egenskaper: Flamavvisande IEC 61386/EN 50086
Skyddsklass: IP43
Material: Polypropylen
Temperaturområde: -40° C till +135° C
Färg: Svart RAL 8022
Övriga egenskaper: Flamavvisande IEC 61386/EN 50086
Skyddsklass: IP43
- Fire resistance according to UL94:
- V2
- Oil resistant:
- Yes
- Lengthwise slotted:
- Yes
- Closable (two-part):
- Yes
- With draw wire:
- No
- High conducting inner coating:
- No
- Degree of protection (IP):
- IP40
- Colour:
- Black
- Operating temperature:
- -40-135 °C
- Material:
- Polypropylene (PP)
- Halogen free:
- Yes
- Suitable in fire resistance areas:
- Yes
- Approved according to DIN EN 61386-23:
- No
- Approves according to Vd TÜV/GGVS:
- No
- Approved according to LUL/British Standard:
- No
- Approved according to Lloyd's Register TA:
- No
- Approved according to UTAC:
- No
- Approved according to DIN 5510:
- No
- Approved according to NF F 16-101:
- No
- Approved according to CSA:
- No
- Approved according to UR:
- No
- Total: 8
