- Total: 14

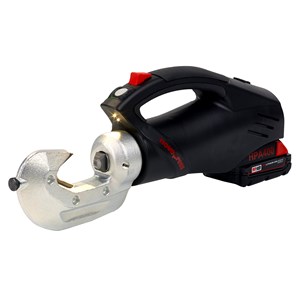

Battery-Powered Crimp Tool - NSBT IC400
NSBT_IC400_vp
The NSBT IC400 is a battery-powered crimping tool for copper and aluminum cable lugs without any need of changing dies. The same crimping dies are used from 16-400 mm² for copper and 50-400 mm² for aluminum.
The NSBT IC400 operates with a V-crimp system, making it compatible with most types of cable lugs and sleeves. The tool continues to apply pressure until the correct resistance is reached, which means it crimp a bit further if the physical area of the cable is slightly off (a common issue today as cable area is now often determined by conductivity rather than physical size).
Crimps performed with this tool meet standards IEC 61238-1 and SEN 24 50 10/12. The tool comes in a durable case with battery, charger, shoulder strap, and a test rod. The test rod is used to verify that the crimping tool is correctly calibrated.
Optional accessories for the NSBT IC400 include pre-forming dies and C-sleeve dies for additional functionality.
- Rotatable crimping head allows operation even in confined spaces.
- The piston automatically returns but can be stopped at any position, reducing cycle time as it doesn’t need to fully reset.
- No time for changing die and no investment in dies for different sizes, resulting in less to carry and keep track of.
- Equipped with a Bosch Li-Ion battery with an indicator.
- LED to facilitate work in dimly lit areas.
Technical data:
Max pressure: 700 bar
Crimping force: 109 kN
Capacity: 16-400 mm² Cu / 50-400 mm² Al
The NSBT IC400 operates with a V-crimp system, making it compatible with most types of cable lugs and sleeves. The tool continues to apply pressure until the correct resistance is reached, which means it crimp a bit further if the physical area of the cable is slightly off (a common issue today as cable area is now often determined by conductivity rather than physical size).
Crimps performed with this tool meet standards IEC 61238-1 and SEN 24 50 10/12. The tool comes in a durable case with battery, charger, shoulder strap, and a test rod. The test rod is used to verify that the crimping tool is correctly calibrated.
Optional accessories for the NSBT IC400 include pre-forming dies and C-sleeve dies for additional functionality.
- Rotatable crimping head allows operation even in confined spaces.
- The piston automatically returns but can be stopped at any position, reducing cycle time as it doesn’t need to fully reset.
- No time for changing die and no investment in dies for different sizes, resulting in less to carry and keep track of.
- Equipped with a Bosch Li-Ion battery with an indicator.
- LED to facilitate work in dimly lit areas.
Technical data:
Max pressure: 700 bar
Crimping force: 109 kN
Capacity: 16-400 mm² Cu / 50-400 mm² Al
- Number of crimps:
- 1 (16-95mm² Cu), 2 (120-400mm² Cu), 2 (50-95mm² Alu), 3 (120-400mm² Alu)
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 5 s
- Compression force:
- 221 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- Compression shape:
- Arbour clamping

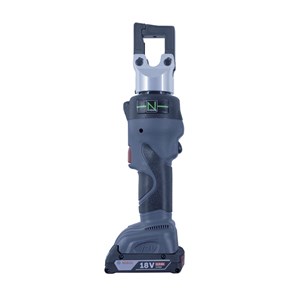

Battery-Powered Crimp Tool - NMBT IC
NMBT IC_VP
A Battery Crimp tool that works reliably on copper cable lugs. Cable lugs and joint sleeves are pressed in the same outlet from 10-95 mm² CU. The tool is equipped with a battery indicator and the head is rotatable 180°. Comes with a Bosch battery and a battery charger in a durable plastic case.
Type of crimp: Indent crimp
Min value: 10 mm²
Max value: 95 mm²
Battery: Bosch 18 VDC, 4.0 Ah Li-Ion
Pressure: 26.5 kN, 2.7 ton
Weight: 2 kg (including battery)
Dimension case (LxWxH): 560 x 160 x 400 mm
Crimps performed with this tool complies with IEC 61238-1.
Type of crimp: Indent crimp
Min value: 10 mm²
Max value: 95 mm²
Battery: Bosch 18 VDC, 4.0 Ah Li-Ion
Pressure: 26.5 kN, 2.7 ton
Weight: 2 kg (including battery)
Dimension case (LxWxH): 560 x 160 x 400 mm
Crimps performed with this tool complies with IEC 61238-1.
- Number of crimps:
- 1
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Compression force:
- 26.5 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Arbour clamping

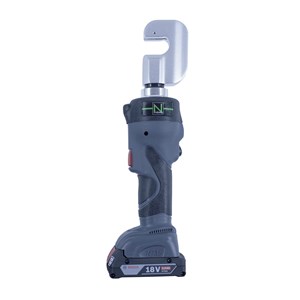

Battery Crimp Tool for NH-Crimp dies
NMBT 240_VP
NMBT 240 is a Battery Crimp tool for cable lugs and c-sleeves. The tool is equipped with battery indicator and the head is rotatable 180°. Comes with a battery and a battery charger in a durable plastic case. Verktyget är utrustat med en batterimätare och huvudet är roterbart 180º. Levereras med ett batteri och en batteriladdare i en slitstark plastväska.The tool can crimp:KRF 10-120 mmmm²KRT 10-240 mm²KRD 10-240 mm²C4-C9The tool fits with NH-die sets.Battery: 18 VDC, 2.0 Ah Li-IonPressure: 52 kN / 5.3 tonWeight: 2.8 kg (including battery)Dimensions case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 52 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Round compression, Universal (exchangeable inserts)

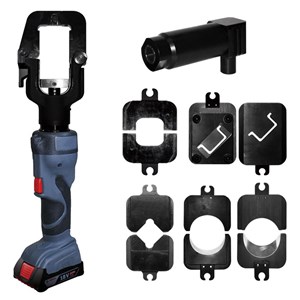

Batteridrivet multiverktyg
NMBT MAT_VP
Battery tool for multiple applications with interchangeable heads. The battery tool is sold as one article no. The accessories are sold as separate items so there is no need to invest in applications not needed for the end user.
Tool can be used for following applications- Hole punch head for 19.1mm rod. MAT PH- DIN-Rail cutter. MAT DRC- Cutter for threaded bolt. MAT TR- Head for crimp dies. MAT NH- Cable cutter for Aluminum, Copper & ACSR-cable. MAT CC
MAT ADAPTER is needed to fit MAT TR and MAT CC.
The Tool comes in a plastic case together with a Li-Ion battery and a charger from Bosch.
Pressure: 700barForce: 6.7 tonLength: 410mmWeight: 3.9kg
Tool can be used for following applications- Hole punch head for 19.1mm rod. MAT PH- DIN-Rail cutter. MAT DRC- Cutter for threaded bolt. MAT TR- Head for crimp dies. MAT NH- Cable cutter for Aluminum, Copper & ACSR-cable. MAT CC
MAT ADAPTER is needed to fit MAT TR and MAT CC.
The Tool comes in a plastic case together with a Li-Ion battery and a charger from Bosch.
Pressure: 700barForce: 6.7 tonLength: 410mmWeight: 3.9kg
- Grip design:
- Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 67 kN
- Suitable for:
- Various applications
- Suitable for steel wire braiding:
- Yes, No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- No
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Isolation protection 1000 V:
- No
- With spring:
- N/A
- Compression shape:
- Universal (exchangeable inserts)
- VDE tested:
- No

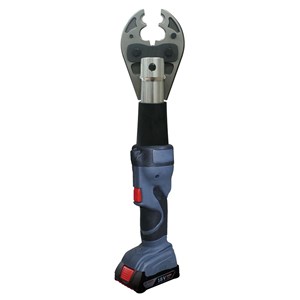

Battery Crimp Tool for N36-Crimp dies
NMBT N36_VP
NMBT N36 is a battery crimp tool for D36. The tool is equipped with a battery indicator and the head is rotatable 350°. Delivered with a battery and a battery charger in a durable plastic case.
The tool can press:
KRF 10-70 mmmm²
KRT 10-95 mm²
KRD 16-95 mm²
C6-C11
Battery: 18 VDC, 2.0 Ah Li-Ion
Pressure: 39kN, 4 ton
Weight: 2.3 kg (including battery)
Dimensions case (LxWxH): 560x160x400 mm
The tool can press:
KRF 10-70 mmmm²
KRT 10-95 mm²
KRD 16-95 mm²
C6-C11
Battery: 18 VDC, 2.0 Ah Li-Ion
Pressure: 39kN, 4 ton
Weight: 2.3 kg (including battery)
Dimensions case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 39 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Round compression, Universal (exchangeable inserts)

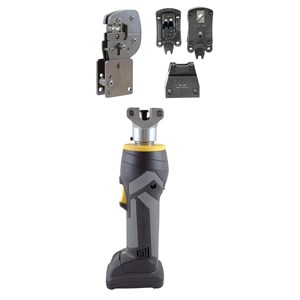

Battery Crimp Tool for DHD-Crimp dies
NMBT DHD_VP
NMBT DHD battery crimp tool for DHD, DRG & NCXD-diesets. The crimp head can be rotated 350º. Delivered with battery(with indicator) and charger in plastic case
Battery: 18 VDC, 2.0 Ah Li-IonPressure: 14,7kN, 1.5tonWeight: 1.9kg (inklusive batteri) Dimension case (LxWxH): 560x160x400 mm
Battery: 18 VDC, 2.0 Ah Li-IonPressure: 14,7kN, 1.5tonWeight: 1.9kg (inklusive batteri) Dimension case (LxWxH): 560x160x400 mm
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 0 .
- With automatic return:
- No
- Cycle time:
- 3 s
- Compression force:
- 14.7 kN
- Suitable for:
- Various applications
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Shrink terminals, End sleeves, Turned contacts, Deutsch, Insulated terminals, Non-insulated terminals, roller compaction, Non-insulated Cu tube and sheet terminals, Modularplugg, Wirelås
- Compression shape:
- Universal (exchangeable inserts)

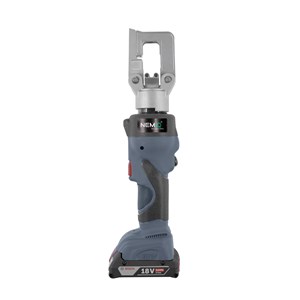

Battery Crimp Tool
NMBT BGD3_VP
Battery crimp tool for Burndy.Crimpo head can be rotated 325 degrees.
Crimp slots: BG & D3Max pressure: 460 barsPress force: 4.5 ton. Length: 459mm. Weight: 3.4kg.
Crimp dies: KW (in D3 slot) Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered with battery and charger in a plastic case.
Crimp slots: BG & D3Max pressure: 460 barsPress force: 4.5 ton. Length: 459mm. Weight: 3.4kg.
Crimp dies: KW (in D3 slot) Available dies: BG, O, C, K840, 161, 162, 163, 164, 165, 166, 171, 237, 243, 247, 249, 702
Delivered with battery and charger in a plastic case.
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 60 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals
- Compression shape:
- Universal (exchangeable inserts)

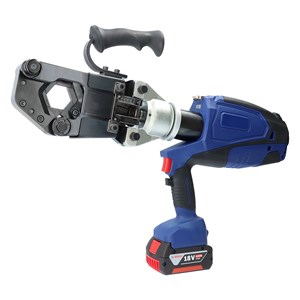

Multifunctional Battery Operated Tool: NGB2
NGB2_vp
Tool for efficiency and flexibility in a wide range of tasks. Our battery-powered tool is designed to be adaptable with various heads, allowing you to handle multiple work areas with a single device. Switch between different heads to perform tasks ranging from hexagonal crimping of cable lugs from 16-400 mm² Cu & 16-300 mm² Al with the HX400, to a powerful cable cutter that cuts up to 45 mm Cu and 40 mm ACSR with the CC40. For convenience, we sell both the machine and the heads separately as well as complete machines, enabling you to purchase according to your needs.
NGB2 Usage Areas:
HX400 - Seamless hexagonal crimping for cable lugs and splice connectors from 16-400 mm² Cu & 16-300 mm² Al.
CC40 - Cable cutter that cuts up to 45 mm Cu and 40 mm ACSR.
NGB2 Usage Areas:
HX400 - Seamless hexagonal crimping for cable lugs and splice connectors from 16-400 mm² Cu & 16-300 mm² Al.
CC40 - Cable cutter that cuts up to 45 mm Cu and 40 mm ACSR.
- Grip design:
- 2-components, Other
- With impact protection:
- No
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 125 kN
- Suitable for:
- Cable lugs and connectors, Various applications
- Suitable for steel wire braiding:
- No
- Replaceable cutting head:
- Yes
- Cutting jaws exchangeable:
- Yes
- With strip function:
- No
- Insulated:
- Yes, No
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Construction/operation:
- Accumulator-hydraulic, Hydraulic cutter head
- Isolation protection 1000 V:
- No
- Compression shape:
- Hexagon
- VDE tested:
- No
M18 HCCT-201C
Hydrauliskt_pressverktyg_M18_HCCT-201C_vp
M18™ FORCE LOGIC™ hydrauliskt pressverktyg med 53 kN kraft. Innovativ design på presshuvudet för snabb och enkel åtkomst. Universal anfästning till pressbackar, passar de flesta 60 kN C-formade pressbackar på marknaden. Pressbackar kan enkelt bytas, frigörs från båda sidor. Ergonomisk in-line design, balanserad för enhandsgrepp. 350° roterbart presshuvud. 2 år eller 30 000 tryck före kalibreringskontroll. Grönt ljus när tryck appliceras - PFM™ Digital tryckövervakning. Automatisk retur efter applicerat tryck. Intern förkontroll av batterikapacitet före varje tryckning. MILWAUKEE® ONE-KEY™-teknik med spårning och användarrapporter. Led-lampor. Vikt inklusive 2,0Ah batteri 3,7 kg. Levereras med 1 x 2,0 Ah REDLITHIUM™-batteri, 40 min. laddare och låda.
M18 ONEHCCT60-202C
Hydrauliskt_pressverktyg_M18_ONEHCCT60-202C_vp
MILWAUKEE® M18 FORCE LOGIC™ hydrauliskt pressverktyg, pressar anslutningar med 60 KN kraft. Giljotinpressmekanism. Universalfästet är kompatibelt med 22-serie backar och de flesta konkurrenters 60 kN U-backar. Pressbrickorna kan enkelt bytas ut och lossas från båda sidor. Certifierad för SEN standard CU (KRF). Ergonomisk in-line design, balanserad för enhandsgrepp. 350° roterande huvud. 2 år eller 30 000 tryck före kalibreringskontroll. PFM™ (Predictive Force Monitoring) säkerställer fullgott resultat. Pressar anslutningar upp till 300 mm² i koppar och aluminium. Automatisk retur efter utförd press. Professionell rapportering genom ONE-KEY™. För att förhindra ofullständig pressning, kontrollera batterinivån innan du startar en press. Vikt med batteri 3,8 kg. Levereras med 2 x 2.0 Ah REDLITHIUM™-batterier och M12-18FC snabbladdare i en väska.
M18 HCCT109/42-522C
Hydrauliskt_pressverktyg_M18_HCCT109_42-522C_vp
M18™ FORCE LOGIC™ hydrauliskt pressverktyg med 109 kN kraft. Giljotin pressmekanism. Universal anfästning till pressbackar, passar de flesta 120 kN C-formade pressbackar på marknaden. Pressbackar kan enkelt bytas, frigörs från båda sidor. Balanserad för enhandsgrepp. 350° roterbart presshuvud. 1 år eller 20 000 tryck före kalibrerinskontroll. Grönt ljus när tryck applieras - PFM™ Digital tryckövervakning. Intern förkontroll av batterikapacitet före varje tryckning. MILWAUKEE® ONE-KEY™-teknik med spårning och användarrapporter. Led-lampor. Vikt inklusive 2,0Ah batteri 5,6 kg. Levereras med 1 x 2,0 Ah och 1 x 5,0 Ah REDLITHIUM™-batterier, snabbladdare och låda.
M18 HDCT-202C
Hydrauliskt_pressverktyg_M18_HDCT-202C_vp
M18™ FORCE LOGIC ™ hydrauliskt pressverktyg. Dorn-pressmekanism som inte behöver pressbackar. UL 486A-486B certifierad för kabelsko för flexibla ledare, såsom kopparkabel klass 5 och 6. Presskapacitet från 10 till 300 mm². Ergonomisk in-line design, balanserad för enhandsgrepp. 350° roterbart presshuvud. 2 år eller 40 000 tryck före kalibreringskontroll. Grönt ljus när tryck appliceras - PFM™ Digital tryckövervakning. Automatisk retur efter applicerat tryck. Intern förkontroll av batterikapacitet inför varje press, som säkerställer att det finns tillräckligt med ström kvar i batteriet för att utföra aktuell press. MILWAUKEE® ONE-KEY™-teknik med spårning och användarrapporter. Led-lampor. Vikt inklusive 2,0Ah batteri 4,5 kg.. Levereras med 2 x 2,0 Ah REDLITHIUM™-batterier och laddare i låda.
HPA 400 G2
77800
HPA 400 G2 Indent crimp tool for copper and aluminum cable lugs without any need of swapping dies. Cable lugs and butt splices can be crimped in the same die set from 16-400 mm² Cu and 50-400 mm² Al.
Type of crimp: V-crimp, compatible with most cable lug and butt splice brands.
HPA 400 G2 arbetar som övriga Novopressutrustningar med V-crimp, en crimp som fungerar på de flesta typer av kabelskor/skarvhylsor. Pressverktyget pressar tills rätt mottryck uppnåtts, det betyder att Novopress med sin V-crimp har en automatisk övercrimpningsfunktion som pressar lite extra i dom fall där kabelns fysiska area inte längre håller måttet (vanligt idag eftersom arean numera bestäms efter ledningsförmåga och inte efter fysisk area).
Crimps performed with this tool complies with IEC 61238-1 and SEN 24 50 10/12.
NMBT IC comes with two Milwaukee Li-Ion batterier, one battery charger and a provstav in a durable case. Provstaven används för att verifiera att pressutrustningen är kalibrerad.
Som komplement kan HPA 400 G2 utrustas med förformningsbackar, C-hylsbackar. HPA 400 G2 använder sig av samma tillbehör som Novopress tidigare storsäljare HPM 400 / HPH 400 samt tidigare version av HPA 400.
Type of crimp: V-crimp, compatible with most cable lug and butt splice brands.
HPA 400 G2 arbetar som övriga Novopressutrustningar med V-crimp, en crimp som fungerar på de flesta typer av kabelskor/skarvhylsor. Pressverktyget pressar tills rätt mottryck uppnåtts, det betyder att Novopress med sin V-crimp har en automatisk övercrimpningsfunktion som pressar lite extra i dom fall där kabelns fysiska area inte längre håller måttet (vanligt idag eftersom arean numera bestäms efter ledningsförmåga och inte efter fysisk area).
Crimps performed with this tool complies with IEC 61238-1 and SEN 24 50 10/12.
NMBT IC comes with two Milwaukee Li-Ion batterier, one battery charger and a provstav in a durable case. Provstaven används för att verifiera att pressutrustningen är kalibrerad.
Som komplement kan HPA 400 G2 utrustas med förformningsbackar, C-hylsbackar. HPA 400 G2 använder sig av samma tillbehör som Novopress tidigare storsäljare HPM 400 / HPH 400 samt tidigare version av HPA 400.
- Number of crimps:
- 1 (16-95mm² Cu), 2 (120-400mm² Cu), 2 (50-95mm² Alu), 3 (120-400mm² Alu)
- With locking device (for mechanical tools):
- No
- Inserts exchangeable:
- Yes
- Number of included inserts:
- 1 .
- With automatic return:
- No
- Cycle time:
- 5 s
- Compression force:
- 110 kN
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Accumulator-hydraulic
- For component:
- Non-insulated Cu tube and sheet terminals, C-clamps
- Compression shape:
- Arbour clamping, Round compression
- Total: 14
