- Total: 5
Maxi fuses in consumer pack
10206 PP_VP
Maximum voltage: 32 V DCCurrent rating: 2-100 ASize (W x D x H): 29.5 x 8.9 x 34.3 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Rated voltage:
- 32 V
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Natural colour, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Number of fuses:
- 2 .
- Model:
- Blade fuse
- Max. current (Imax):
- 20-100 A
- Nominal current:
- 20-100 A
- Fuse type:
- Maxi
Midi fuses in consumer pack
10204 PP_VP
Maximum voltage: 32 V DCCurrent rating: 1-40 ASize (W x D x H): 18.8 x 5.0 x 18.7 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Fast (F)
- Rated voltage:
- 32 V
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Red, Black, Purple, Other
- Nominal voltage DC:
- 32 V
- Number of fuses:
- 10 .
- Model:
- Blade fuse
- Max. current (Imax):
- 1-40 A
- Nominal current:
- 1-40 A
- Fuse type:
- Midi
Mini fuses with indicator diode
77769
AS BL MINI 7
7 pcs Mini fuse assortment in pin-pac.
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).
1 x (5 A, 7.5 A, 10 A, 15 A, 20 A, 25 A, 30 A)
7 pcs Mini fuse assortment in pin-pac.
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).
1 x (5 A, 7.5 A, 10 A, 15 A, 20 A, 25 A, 30 A)
- Release characteristic:
- Fast (F)
- Rated voltage:
- 32 V
- Number of fuses:
- 7 .
- Model:
- Blade fuse
- Max. current (Imax):
- 30 A
- Fuse type:
- Mini
Minisäkringar i Polykarbonat (PC) i Konsumentförpackning
Minisäkringar (PC) PP_VP
Maximum voltage: 32 V DCCurrent rating: 2-30 AMaterial: Polycarbonate (PC)Size (W x D x H): 11.0 x 3.8 x 16.2 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Fast (F)
- Rated voltage:
- 32 V
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Natural colour, Pink, Red, Purple, Other
- Nominal voltage DC:
- 58 V
- Number of fuses:
- 10 .
- Model:
- Blade fuse
- Max. current (Imax):
- 2-30 A
- Nominal current:
- 2-30 A
- Fuse type:
- Mini

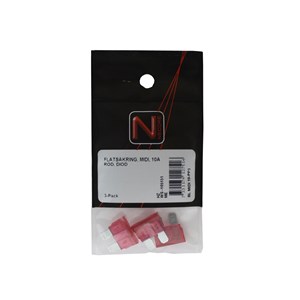

Midi fuses with indicator diode - BL-Series in consumer pack
77775 PP_VP
Midi fuse, BL-series
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).Saves a lot of time troubleshooting.
Maximum voltage: 32 V DCCurrent rating: 3-30 ASize excl. lamp (W x D x H): 18.8 x 5.3 x 18.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode,then with the suffix -PP added to the end of the part number.
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).Saves a lot of time troubleshooting.
Maximum voltage: 32 V DCCurrent rating: 3-30 ASize excl. lamp (W x D x H): 18.8 x 5.3 x 18.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode,then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Rated voltage:
- 32 V
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Number of fuses:
- 3-7 .
- Model:
- Blade fuse
- Max. current (Imax):
- 3-30 A
- Nominal current:
- 3-20 A
- Fuse type:
- Midi
- Total: 5
