- Total: 17

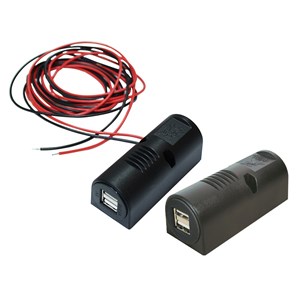

Flat Power USB Socket
175468302010_VP
The Flat Power USB Socket 12-24V DC / 5 V DC 3000mA with integrated power voltage converter., is for connecting at 12-24 V electric circuit of cars, trucks, buses, caravans and boats.
For charging and operating sat navs, mobile phones, smart phones, digital cameras, E-reader and devices that are suitable for charging by 5 Volt USB.
Fastening by two mounting screws (included).
Technical Details:
Input: 8-34 Volt
Output: 3,000 mA
Current Consumption: <5 mA
Cable connection: assembled with appr. 1 m cable and wire end sleeves
Cable cross section: 2 x 0.5 mm²
Dimensions: 42 x 34 x 15.25 mm
For charging and operating sat navs, mobile phones, smart phones, digital cameras, E-reader and devices that are suitable for charging by 5 Volt USB.
Fastening by two mounting screws (included).
Technical Details:
Input: 8-34 Volt
Output: 3,000 mA
Current Consumption: <5 mA
Cable connection: assembled with appr. 1 m cable and wire end sleeves
Cable cross section: 2 x 0.5 mm²
Dimensions: 42 x 34 x 15.25 mm

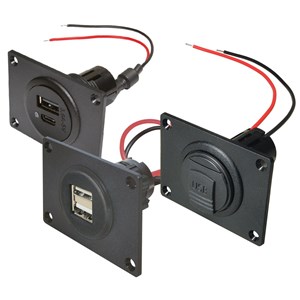

Power USB Built-In Socket
175467332xxx_VP
12-24 V DC / 5 V DC, 3 A with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Supplied with mounting plate,60 x 45 mm
Installation dimensions Ø 28 mm
pre-assembled cable connection approx. 15 cm
Technical Details:
Input voltage 8-34 Volt
Current consumption: < 3 mA, ”Stand by mode”
Cable connection: 15 cm, Cable cross section 0.5 mm²
Output current: max. 3 A
E1 certificate.
Supplied with or without cover, see below
175467332000: Without cover
175467332100: With cover
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Supplied with mounting plate,60 x 45 mm
Installation dimensions Ø 28 mm
pre-assembled cable connection approx. 15 cm
Technical Details:
Input voltage 8-34 Volt
Current consumption: < 3 mA, ”Stand by mode”
Cable connection: 15 cm, Cable cross section 0.5 mm²
Output current: max. 3 A
E1 certificate.
Supplied with or without cover, see below
175467332000: Without cover
175467332100: With cover

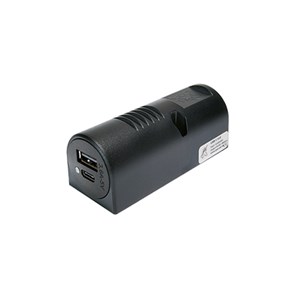

Power Double USB-C/A Surface Mounted Socket
1754673xx000_VP
12-24 V DC / 5 V DC, 3.6 A with integrated power voltage converter. For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Fastening by enclosed screws. Pre-assembled cable connection approx. 15 cm.
Input voltage: 8-34 Volt
E1 certificate, Current consumption: < 1 mA
Overload protection, overtemperature protection, reverse polarity protection, short curcuit protection, overvoltage protection at short voltage peaks.
Cable connection: 15 cm
Cable cross section: 0.5 mm²
Output current: max. 3.6 A
Dimensions L x W x H: 85 x 35 x 33 mm
Fastening by enclosed screws. Pre-assembled cable connection approx. 15 cm.
Input voltage: 8-34 Volt
E1 certificate, Current consumption: < 1 mA
Overload protection, overtemperature protection, reverse polarity protection, short curcuit protection, overvoltage protection at short voltage peaks.
Cable connection: 15 cm
Cable cross section: 0.5 mm²
Output current: max. 3.6 A
Dimensions L x W x H: 85 x 35 x 33 mm
Power USB Built-In Socket
Uttag USB x 2_ monteringsplatta_VP
12-24 V DC / 5 V DC, 5 A (2 x 2.5 A) with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Fastening by plastic srew nut, installation dimensions Ø 28 mm, pre-assembled cable connection approx. 15 cm.
Technical Details:
Input voltage 8-34 Volt
E1 certificate
Current consumption: < 3 mA
Cable connection: 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-8 mm, Install dimensions 28 mm +/- 0.1 mm
Output current: max. 5 A (2 x 2.5 A)
Output current duration: 4.4 A (2 x 2.2 A)
Supplied with or without cover, see below
175467322000: Without cover
175467322100: With cover
For charging and operating electronical devices that are suitable for charging by 5 Volt USB.
Fastening by plastic srew nut, installation dimensions Ø 28 mm, pre-assembled cable connection approx. 15 cm.
Technical Details:
Input voltage 8-34 Volt
E1 certificate
Current consumption: < 3 mA
Cable connection: 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-8 mm, Install dimensions 28 mm +/- 0.1 mm
Output current: max. 5 A (2 x 2.5 A)
Output current duration: 4.4 A (2 x 2.2 A)
Supplied with or without cover, see below
175467322000: Without cover
175467322100: With cover
Outlet for USB-A and USB-C, surface mount
Uttag USB x 2_ utvändig montering_VP
USB outlet for surface mount.Several variantes, single or double, USB-A and USB-C. See below.
Input: 12-24 volt DC.Connection: 15cm cable, 0.5 mm2.
Input: 12-24 volt DC.Connection: 15cm cable, 0.5 mm2.

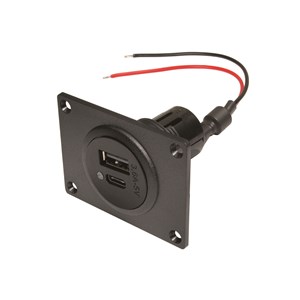

Uttag USB-A x 1 & USB-C x 1, monteringsplatta
Uttag USB-A x 1 och USB-C x 1 monteringsplatta_vp
USB-uttag Typ A x 1 och USB-C x 1 för infällt montage
Levereras med monteringsplatta, 60 x 45 mm
Passar i hål: 28 mm
Matning: 8-34 V
Uttag max: 3,6A, 5 VDC
Förbrukning i "stand by läge": < 1mA
Anslutningar: Ca.15cm kabel, 0.5 mm²
Levereras med monteringsplatta, 60 x 45 mm
Passar i hål: 28 mm
Matning: 8-34 V
Uttag max: 3,6A, 5 VDC
Förbrukning i "stand by läge": < 1mA
Anslutningar: Ca.15cm kabel, 0.5 mm²

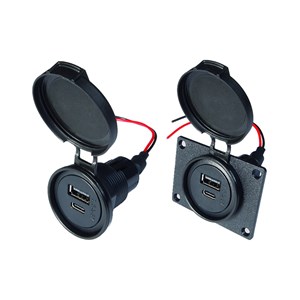

Power Double USB-C/A socket with protective cap IP54
Uttag USB-A och USB-C med skyddskåpa_vp
12-24 V DC, output 5 V DC, 3.6 A with integrated power voltage converter.
For charging and operating electronical devices that are suitable for charging by 5 V USB.
Overload protection, overtemperature protection, reverse polarity protection, short-circuit protection, overvoltage protection at short voltage peaks.
Technical details USB:
Input: 8-34 V DC
Output: 3.6 A
E1 certificate
Max connection: 1x USB-C and 1 x USB-A
Current consumption ≤ 1 mA.
Mounting hole: Ø 28 mm / Ø 36 mm with mounting plate.
Panel thickness 2-16 mm.
Fastening by hexagon nut (and screws).
Cable connection pre-assembled, approx. 15 cm, 0.5 mm².
For charging and operating electronical devices that are suitable for charging by 5 V USB.
Overload protection, overtemperature protection, reverse polarity protection, short-circuit protection, overvoltage protection at short voltage peaks.
Technical details USB:
Input: 8-34 V DC
Output: 3.6 A
E1 certificate
Max connection: 1x USB-C and 1 x USB-A
Current consumption ≤ 1 mA.
Mounting hole: Ø 28 mm / Ø 36 mm with mounting plate.
Panel thickness 2-16 mm.
Fastening by hexagon nut (and screws).
Cable connection pre-assembled, approx. 15 cm, 0.5 mm².

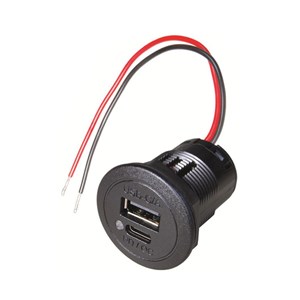

USB-A & USB-C sockets, round panel mounted
Uttag USB-A och USB-C_panelmonterade_vp
USB socket, round for flush mounting.
With LED that glows dimly in light blue so that the socket is visible in the dark.
Supply: 12-24 volts DC.
Protected against short circuits, overvoltages (max. 53V), overheating and reversed terminal connection.
Connections: Approx. 15 cm cable, 0.5 mm².
With LED that glows dimly in light blue so that the socket is visible in the dark.
Supply: 12-24 volts DC.
Protected against short circuits, overvoltages (max. 53V), overheating and reversed terminal connection.
Connections: Approx. 15 cm cable, 0.5 mm².

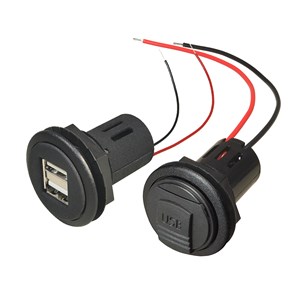

Outlet for USB-A, round socket, recess mount
Uttag USB x 2_ panelmonterade_VP
USB-uttag, runda för infällt montage.
Passar i hål: 28 mm.
Matning: 12-24 volt DC.
Anslutningar: Ca.15cm kabel, 0.5 mm².
Finns i flera utförande, enkla, dubbla med och utan lock. Se nedan.
Passar i hål: 28 mm.
Matning: 12-24 volt DC.
Anslutningar: Ca.15cm kabel, 0.5 mm².
Finns i flera utförande, enkla, dubbla med och utan lock. Se nedan.
Uttag USB-A & USB-C, för placering i blindplatta
Uttag USB-A och USB-C_placering i blindplatta_vp
USB-uttag, runda för infällt montage.
Matning: 12-24 volt DC.
Skyddad mot kortslutning, överspänning(max 53V), överhettning och felvänd polanslutning.
Anslutningar: Ca.15 cm kabel, 0.5 mm².
Matning: 12-24 volt DC.
Skyddad mot kortslutning, överspänning(max 53V), överhettning och felvänd polanslutning.
Anslutningar: Ca.15 cm kabel, 0.5 mm².

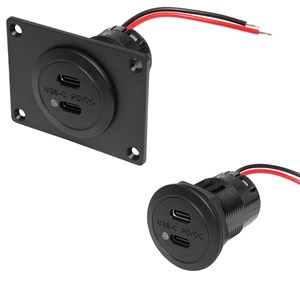

Power Double USB-C/A Socket PD/QC
Uttag USB-A och USB-C_PD/QC
12-24 V DC with integrated power voltage converter.
Supports fast charging methods as Power Delivery (Port C) and Quick Charge (Port C and A).
Fastening by hexagon nut.
Technical Details:
Input voltage: 8-34 Volt
Output: 5 V, 9 V, 12 V and with 24 V input voltage also 15 V and 20 V; max. 2 x 30 watt
USB-C Port up to 3 A
USB-A Port up to 2.2 A
Current consumption: < 1 mA
Protection against overload, overtemperature, reverse polarity, short-curcuit, overvoltage protection at short voltage peaks.
Cable connection 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-16 mm, Install dimensions 28 mm +/- 0.1 mm
E1 certificate
Supports fast charging methods as Power Delivery (Port C) and Quick Charge (Port C and A).
Fastening by hexagon nut.
Technical Details:
Input voltage: 8-34 Volt
Output: 5 V, 9 V, 12 V and with 24 V input voltage also 15 V and 20 V; max. 2 x 30 watt
USB-C Port up to 3 A
USB-A Port up to 2.2 A
Current consumption: < 1 mA
Protection against overload, overtemperature, reverse polarity, short-curcuit, overvoltage protection at short voltage peaks.
Cable connection 15 cm, Cable cross section 0.5 mm²
Panel thickness 2-16 mm, Install dimensions 28 mm +/- 0.1 mm
E1 certificate
Universal skyddskåpa IP 54
Universal skyddskåpa_vp
For easy upgrading of a PRO CAR USB built-in socketthat has not been yet installed.
When the cap is fitted, protection class IP 54 is achieved.
When the cap is fitted, protection class IP 54 is achieved.

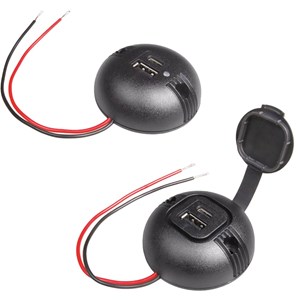

Round Power USB-C/A Surface Mounted Socket
Runt uttag USB-A och USB-C_utvändig_vp
12-24 V DC, output 5 V DC, with integrated voltage converter. With blue control LED that shows voltage.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
Input: 8-34 V DC
E1-approval.
Port: 1 x USB-C + 1x USB-A
Output max. 3 A / 15 watts (Port C), 2.5 A / 12.5 watts (Port A)
Current consumption: < 3 mA
Fastening by screws, cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm²
Dimensions: Ø 59 mm x Height 24 mm
175467347000: With blue control LED that shows voltage.
175467347100: With cap
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
Input: 8-34 V DC
E1-approval.
Port: 1 x USB-C + 1x USB-A
Output max. 3 A / 15 watts (Port C), 2.5 A / 12.5 watts (Port A)
Current consumption: < 3 mA
Fastening by screws, cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm²
Dimensions: Ø 59 mm x Height 24 mm
175467347000: With blue control LED that shows voltage.
175467347100: With cap
Round Power 2 x USB-A Surface Mounted Socket
Uttag 2xUSB-A_vp
12-24 V DC, output 5 V DC, with integrated voltage converter. With blue control LED that shows voltage.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
Input: 8-34 V DC
E1-approval.
Port: 2 x USB-A
Output max. 2 x 2.5 A (2 x 12.5 watts)
Current consumption: < 3 mA
Fastening by screws, cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm²
Dimensions: Ø 59 mm x Height 24 mm
175467327000: With blue control LED that shows voltage.
175467327100: With cap
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
Input: 8-34 V DC
E1-approval.
Port: 2 x USB-A
Output max. 2 x 2.5 A (2 x 12.5 watts)
Current consumption: < 3 mA
Fastening by screws, cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm²
Dimensions: Ø 59 mm x Height 24 mm
175467327000: With blue control LED that shows voltage.
175467327100: With cap

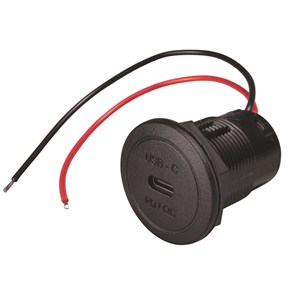

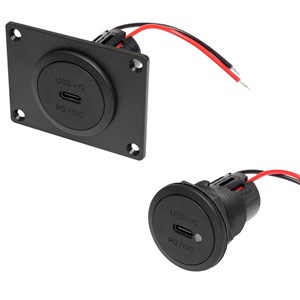

Power USB-C Built-In Socket PD/QC
Uttag_USB-C_PD_QC_panelmonterad_vp
12-24 V DC with integrated voltage converter.
Supports fast charging methods Power Delivery and Quick Charge and PPS.
With or without blue LED that shows voltage
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 1x USB-C: up to max. 3 A (30 watts).
Current consumption < 5 mA.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
E1-approval.
Installation hole: ∅ 28 mm / 36 mm with mounting plate; fastening by hexagon nut (by screws), cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm².
Supports fast charging methods Power Delivery and Quick Charge and PPS.
With or without blue LED that shows voltage
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 1x USB-C: up to max. 3 A (30 watts).
Current consumption < 5 mA.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit.
E1-approval.
Installation hole: ∅ 28 mm / 36 mm with mounting plate; fastening by hexagon nut (by screws), cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm².
Power Double USB-C Socket PD/QC
Uttag_2xUSB-C_PD_QC_panelmonterad_vp
12-24 V DC with integrated voltage converter.
Supports fast charging methods Power Delivery and Quick Charge an PPS.
With or without blue LED that shows voltage.
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 2x USB-C: up to max. 2x 3 A (2x 30 watts).
Current consumption: < 5 mA.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit; E1-approval.
Installation hole: ∅ 28 mm / 36 mm with mounting plate; fastening by hexagon nut (by screws), cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm².
Supports fast charging methods Power Delivery and Quick Charge an PPS.
With or without blue LED that shows voltage.
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 2x USB-C: up to max. 2x 3 A (2x 30 watts).
Current consumption: < 5 mA.
Protection against: reverse polarity, overload, over temperature, overvoltage, short-circuit; E1-approval.
Installation hole: ∅ 28 mm / 36 mm with mounting plate; fastening by hexagon nut (by screws), cable connection pre-assembled approx. 15 cm, 2 x 0.5 mm².
Power USB-C Built-In Socket PD/QC max. 50 watt
Uttag_USB-C_PD_QC_max.50W_panelmonterad_vp
12-24 V DC with integrated voltage converter.
Supports fast charging methods Power Delivery and Quick Charge an PPS.
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 1x USB-C: up to max. 3 A (50 watt),
current consumption < 1 mA
Protection against: overload, over temperature, overvoltage, short-circuit; E1-approval.
Installation hole: ∅ 28 mm; fastening by hexagon nut, cable connection
pre-assembled approx. 15 cm, 2 x 0.5 mm².
Supports fast charging methods Power Delivery and Quick Charge an PPS.
Output 5 V, 9 V, 12 V and at 24 V input also 15 V and 20 V output.
Output 1x USB-C: up to max. 3 A (50 watt),
current consumption < 1 mA
Protection against: overload, over temperature, overvoltage, short-circuit; E1-approval.
Installation hole: ∅ 28 mm; fastening by hexagon nut, cable connection
pre-assembled approx. 15 cm, 2 x 0.5 mm².
- Total: 17
