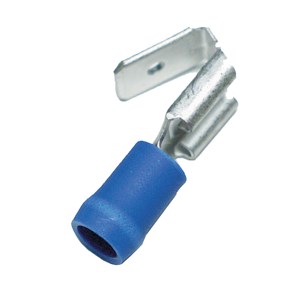

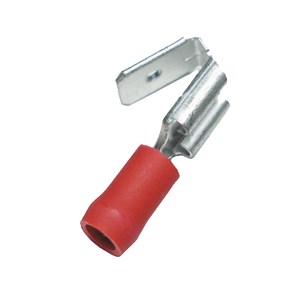

Piggyback disconnects A-series
87501
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- Yes
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
- UL-File No.:
- E70188
Piggyback disconnects A PL-series
66101
PVC-insulated terminals. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- Yes
- Strip length:
- 6-7 mm
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
Piggyback disconnects AA-series
88801
PVC-insulated terminals. Manufactured in Japan to the highest quality standards. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-15 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Red
- With cam clamp:
- No
- With tap spreader:
- Yes
- Material insulation:
- Polyvinyl chloride (PVC)
- Fire classification:
- According to UL94V0
- Operating temperature:
- -40-75 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Flammability rating (UL94):
- V0
