- Total: 5

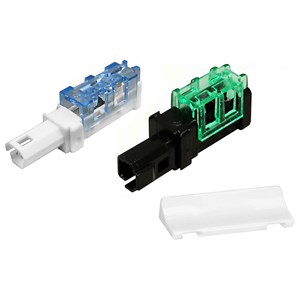

IDC Skarvkontakt NDC-Serien
NDC_VP
Öppningsbar skarvkontakt för kabel.
Kabelinstallation utan behov av att skala kablarna eller användning av pressverktyg. En kontakt per kabel behövs, vänd ena kontakten upp och ned och tryck sedan ihop kontakterna. Kontakterna kan byggas ihop för flera poler.
Kontakter: Förtent brons
Isolering: Polykarbonat
Area: Se nedan
Max spänning: 100V
Max ström:
NDC 2824: 1A för AWG28-AWG26, 2A för AWG24.
NDC 2420: 2A för AWG24-AWG22, 3A för AWG20.
Max kabeldiameter:
NDC 2824: 1.6 mm
NDC 2420: 2.1 mm
Temperaturområde: -20°C - +75°C
Monteringstemperatur: 0°C - 40°C
Kabelinstallation utan behov av att skala kablarna eller användning av pressverktyg. En kontakt per kabel behövs, vänd ena kontakten upp och ned och tryck sedan ihop kontakterna. Kontakterna kan byggas ihop för flera poler.
Kontakter: Förtent brons
Isolering: Polykarbonat
Area: Se nedan
Max spänning: 100V
Max ström:
NDC 2824: 1A för AWG28-AWG26, 2A för AWG24.
NDC 2420: 2A för AWG24-AWG22, 3A för AWG20.
Max kabeldiameter:
NDC 2824: 1.6 mm
NDC 2420: 2.1 mm
Temperaturområde: -20°C - +75°C
Monteringstemperatur: 0°C - 40°C
Lighting connector, with lever
Kopplingsplint_belysning_vp
Terminal blocks that are 2 or 5-pole.
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
- Number of clamp positions (device side):
- 4-10 .
- Type of locking/unlocking:
- Lever
- Nominal voltage:
- 600 V
- Nominal current:
- 32 A
- Suitable for solid conductors:
- Yes
- Transparent:
- No
- Number of clamp positions:
- 4-10 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Strip length:
- 11 mm
- Colour:
- Multi-coloured
- Operating temperature:
- -40-105 °C
- Flammability rating (UL94):
- V2

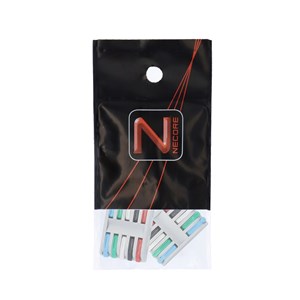

Lighting connector, with lever - Consumer pack
Kopplingsplint_belysning_Pin-pac_vp
Terminal blocks that are 2 or 5-pole.
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
Suitable for solid, stranded and flexible conductors. Solid conductors can be inserted even when the connector is closed. Flexible conductors should be twisted before termination.
No tools required.
Grey polycarbonate (PC) housing.
Copper conductors and stainless steel spring.
Contact resistance: ≤0.015 Ω
Insulation resistance: ≥1000 MΩ
- Number of clamp positions (device side):
- 10 .
- Type of locking/unlocking:
- Lever
- Nominal voltage:
- 600 V
- Nominal current:
- 32 A
- Suitable for solid conductors:
- Yes
- Transparent:
- No
- Number of clamp positions:
- 10 .
- With operation lever:
- Yes
- Suitable for solid core:
- Yes
- Suitable for flexible core:
- Yes
- Suitable for multi-wire core:
- Yes
- Strip length:
- 11 mm
- Colour:
- Multi-coloured
- Operating temperature:
- -40-105 °C
- Flammability rating (UL94):
- V2
KOPPLINGSPLINTAR LED - S 3050 - Konsumentförpackning
KOPPLINGSPLINT_S-3050-Konsumentförpackning_vp
Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Number of poles:
- 2 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection

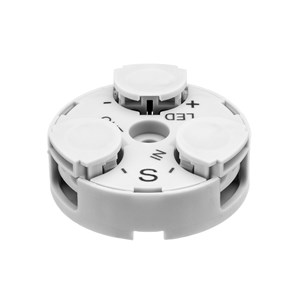

KOPPLINGSPLINTAR LED - S 3050
66640
Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Number of poles:
- 1 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection
- Number of clamp positions per pole:
- 2 .
- Max. rated current:
- 6 A
- With PE-rail:
- No
- With N-rail:
- No
- Total: 5
