- Total: 3
Receptacle PBT-series
Isolerad_flatstiftshylsor_PBT-serien_vp
Polycarbonate-insulated terminals. They have an additional copper sleeve to achieve minimal resistance and higher pull-out strength. The terminals can be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Material:
- Brass
- Halogen free:
- Yes
Flatstiftshylsor PB-serien
Isolerad_flatstiftshylsor_PB-serien_vp
Polycarbonate-insulated cable lugs. Welded neck and soft-annealed construction ensure reliable crimping in any direction. Easy-entry neck design allows fast and secure conductor insertion, reducing the risk of bent strands and preventing flashover or degraded electrical performance. Made from brass and electrolytically tin-plated for excellent corrosion protection.
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Material:
- Brass
- Halogen free:
- Yes

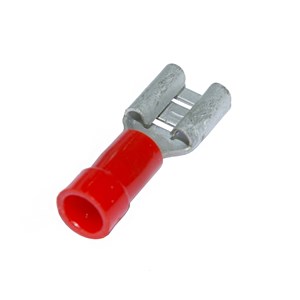

Tab female disconnects AE-series FLS
135701
Polycarbonate-insulated cable lugs. Welded neck and soft-annealed construction ensure reliable crimping in any direction. Easy-entry neck design allows fast and secure conductor insertion, reducing the risk of bent strands and preventing flashover or degraded electrical performance. Made from brass and electrolytically tin-plated for excellent corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polycarbonate (PC)
- Operating temperature:
- -150-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- No
- Total: 3
