- Total: 7

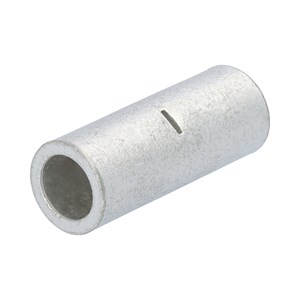

KSF - Copper connectors 10-500mm²
14501
Copper tube splices for the Nordic market. For stranded wires. (Class 5 and class 6)
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: F 25 11
F = KSF // 25 = 25 wire // 11 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: F 25 11
F = KSF // 25 = 25 wire // 11 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Model:
- UL model
- Max. current (Imax):
- 66-745 A
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Series:
- KRF/KSF (10-500mm2)
KSD - Copper connectors 16-630mm²
14601
Copper tube splices for the Nordic market. For solid wires. (class 2)
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: D 25 9
D = KSD // 25 = 25 wire // 9 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: D 25 9
D = KSD // 25 = 25 wire // 9 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
- Suitable for Class 2 conductor:
- Yes
- Model:
- Standard version
- Max. current (Imax):
- 97-1027 A
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Series:
- KRD/KSD(10-630mm2)
Skarv för Enkel – flertrådig kabel
Rörskarvhylsor KS_vp
Copper connectors that can be used when connecting solid wires to stranded wires.
Material: 99.9% pure copper
Surface:> 4μ Sn
Material: 99.9% pure copper
Surface:> 4μ Sn
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
KS - Copper connectors 0.75-6mm²
KS - Rörskarvhylsor 0.75-6mm2
Copper tube splices for the Nordic market. For stranded (class 5 and class 6) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: 4
4 = 4mm²
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: 4
4 = 4mm²
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Suitable for Class 6 conductor:
- Yes
- Model:
- UL model
- Max. current (Imax):
- 14-51 A
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Series:
- KR/KS (0.75-6mm2)
CUT - Skarvhylsa för jordlina 1.5-25mm²
13202
Connectors for solid copper conductors
Material: 99.9% pure copper
Material: 99.9% pure copper
- Suitable for Class 1 conductor:
- Yes
- Suitable for Class 2 conductor:
- Yes
- Model:
- Standard version
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- No
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Bare
- Material:
- Copper
- Series:
- CUT
KSDIN - Copper connectors 6-400mm²
Rörskarvhylsor_KSDIN_vp
Copper tube splices according to DIN 46267. Suitable for multi-stranded conductors (class 2 and class 5).
Material: 99.9% pure Cu
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: n35DIN
n = Nemiq // 35 = 35 mm² cable // DIN = DIN46267
Material: 99.9% pure Cu
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: n35DIN
n = Nemiq // 35 = 35 mm² cable // DIN = DIN46267
- Model:
- UL model
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 30 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Surface protection:
- Tinned
- Material:
- Copper
KST - Copper connectors 10-500mm²
14401
Copper tube splices for the Nordic market. For stranded (class 5) and solid wires (class 2).
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: T 25 10
T = KST // 25 = 25 wire // 10 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
Material: 99.9% pure copper
Surface: > 4µ Sn
Inscriptions on the splices palm can for ie be: T 25 10
T = KST // 25 = 25 wire // 10 = Outside diameter of the neck (B)
When crimping with hexagon dies neck inscription and die markings must conform.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- DIN-version
- Max. current (Imax):
- 66-600 A
- Number of branches:
- 0 N/A
- Insulation:
- None
- Colour insulation:
- N/A
- Sleeve form:
- Short
- Suitable for solid conductors:
- Yes
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- For pull protected connections:
- No
- Voltage level:
- Up to 35 kV
- Type of connection:
- Other
- Oil stop/centre bar:
- No
- Max Temp:
- 150 °C
- Surface protection:
- Tinned
- Material:
- Copper
- Series:
- KRT/KST(10-500mm2)
- Total: 7
