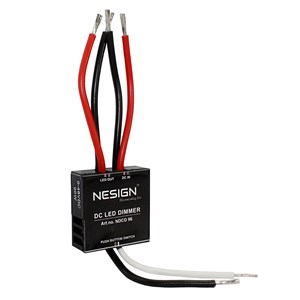

DC dimmer for use together with any push-button switch. Dim up to 96 watts (8A/12V or 4A/24V) of incandescent, halogen or LED lighting.Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 12 or 24 Volt DC power is present.Dims “non-dimmable” constant voltage LED’s.Suitable for 12VDC and 24VDC strip LED’s.Suitable for RGB or tunable white LED’sDigital control provides accurate and flicker free dimming to very low intensityNo minimum loadConnect any number of DC dimmers to a single push-button switch.
12V @ 8A24V @ 4A48V @ 2A

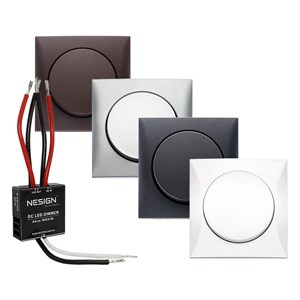

DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips.
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.

Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.

9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm


EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU

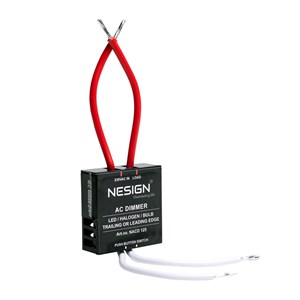

AC LED DIMMER ~ 230VAC, 125W (0.5A), 50Hz, IP20. Kompakt universell dimmer för återfjädrande tryckknappsbrytare. Lätt att installera bakom den befintliga ljusbrytaren. Kräver ingen neutral ledning. Lämplig för LED med externt drivdon samt för eftermonterad LED, halogen eller glödlampa.
Trailing or Leading edge.

Minne: återgår till tidigare dimmerinställning vid start.
Vid strömförlust t.ex. strömavbrott startar dimmern på 50% vid start.
Arbetstemperatur: -5 - + 45° C
Mått: 36 x 36 x 12 mm
Trådlängd: 60 mm
IEC 60669-1IEC 60669-2-1

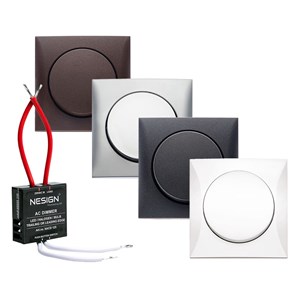

AC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights with external driver.
Universal push-button switch dimmer for universal load compatibility. The units utilise powerful and sophisticated dimming technology to provide full control of almost any type of load. The dimmer also incorporate overcurrent and over-temperature protection devices and are capable of withstanding persistent short circuit conditions.

Accurate and flicker free dimming to very low intensity.

Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.

230VAC, 125W (0.5A), 50Hz, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm

EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety: IEC 60669-1: 2017, IEC 60669-2-1: 2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
