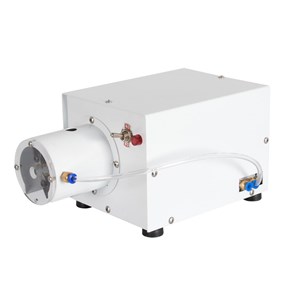

The wire stripping and twisting machine for processing inner multi-cores of jacket cables, insert the wire head into the rotary blade and pull it out quickly, the wire will be stripped and twisted automatically.

Technical data:
Conductor cross-section: 0.14-6mm2 (AWG 26-10)
Twisting length: 3-45 mm
Stipping length: 3-45 mm
Weight: 10 kg
Power source: 220-240V AC/50HZ
Air Supply: 4-6 Bar
Dimension: 320 x 185 x 170 mm

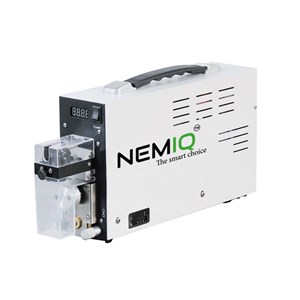

NTCS 00340 is a electrically powered stripping machine for solid and multi-stranded cabled. NTCS 00340 is designed to process cables with cross-sections ranging from 0.03 to 4mm² with a absolute precision.

Technical data:
Max. Stripping length: 20mm
Diameter setting accuracy: 0.01mm
Processing time: 2pcs/s
Available cross section: 0.03-4mm2
Stripping accuracy: Entire-strip: 0.5mm, Half-strip: 6mm
Weight: 4.5kg
Dimension: 380 x 85 x 188 mm
Power supply: 220-240V AC / 50Hz

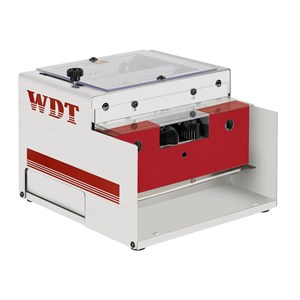

Pneumatisk skalmaskin tillverkad av WDT, med 6 olika hylsor för kablar med diameter mellan 4-15 mm (6-70 mm²).
Lätt hantering och exakt centrering underlättar för ett utomordentligt resultat.

Tekniska data:
Dimensioner: 265 x 230 x 200 mm
Vikt: 11.0 kg
Lufttryck: max. 6 bar / 87 PSI
Max. skallängd: 170 mm
Skallängd: 5-50 mm
Max Kabeldiameter: 16 mm
Grundutrustning: - Pneumatisk fotpedal - Skyddskåpor - 3 set med knivar - 6 centreringshylsor - Tryckslang - Verktygsset
