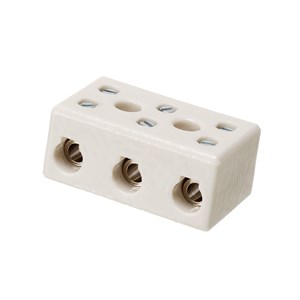

Porcelain connectors type 157 - Adels Contact

Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm

Distance: 10.5 mm
Cable area: up to 6 mm² (VDE 2.5 mm²) with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage rating: 400 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.2 mm, cc 10.5 mm

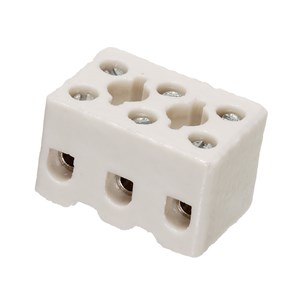

Connectors porcelain type 153 - Adels Contact

Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M3 x 6 mm.
Torque: 0.5 Nm

Distance: 10 mm
Cable area: up to 6mm² with wire protection DS up to 2.5 mm²
Wire protectors: Stainless steel spring
Voltage ratin 380 V
Current rating: EN60598 16 A, EN60998 24 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 7-7.5 mm
Mounting: 3.3 mm, cc 10 mm

Connectors porcelain type PM - Adels Contact

Porcelain C 111 EN 60 672, white, outer surface glazed (except ground surface).
Inserts in tinned brass.
Screws in zinc plated steel, chromed M4 x 9 mm.
Torque: 1.2 Nm

Distance: 18 mm
Cable area: up to 16 mm² with wire protection DS up to 6 mm²
Wire protectors: Tinned bronze
Voltage rating: 380 V
Current rating: EN60598 41 A, EN60998 41 A
Temperature range: Porcelain 1000° C, contacts 350° C
Stripping length: 9.5-10 mm
