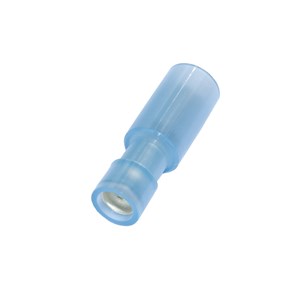

Bullet female terminals N PLD-series
15902
Nylon-insulated terminals. They have an additional copper sleeve to achieve minimal resistance and higher pull-out strength. The terminals can be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10-24 A
- Insulation:
- Fully isolated
- Colour insulation:
- Blue, Yellow, Red
- With cam clamp:
- No
- With tap spreader:
- No
- Strip length:
- 10.5-13 mm
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Bullet female terminals N-series
18202
Nylon-insulated terminals. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from brass and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Grey
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
- UL-File No.:
- E44245
- Availability:
- No
- Model:
- Bushing
- Max. current (Imax):
- 10 A
- Insulation:
- Fully isolated
- Colour insulation:
- Red
- With cam clamp:
- No
- With tap spreader:
- No
- Material insulation:
- Polyamide (PA)
- Material:
- Brass
- Voltage max:
- 300V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
- UL-File No.:
- E44245
- Total: 3
