- Total: 7

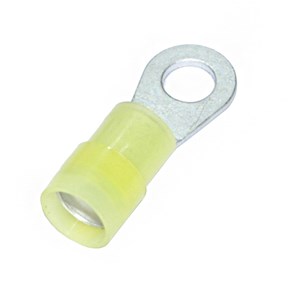

Ring terminals N-series
20303
Nylon-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
- UL-File No.:
- E42024
Ring terminals NT PL-series (DIN)
16105
Nylon-insulated terminals. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection. The product is manufactured in accordance with DIN 46237.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- Yes
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Strip length:
- 7.5-9 mm
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Ring terminals N PL-series
16104
Nylon-insulated terminals. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Strip length:
- 7.5-9.5 mm
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Ring terminals N PLD-series
16106
Nylon-insulated terminals. They have an additional copper sleeve to achieve minimal resistance and higher pull-out strength. The terminals can be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19-48 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Long
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Strip length:
- 7.5-9.5 mm
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Ring terminals A-series, 10-35 mm², nylon
Ringkabelskor A-serien Nylon_vp
Nylon-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 62-160 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue, Yellow, Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2
Ring terminals NB-series, 0.5-6 mm², nylon
18402
Nylon-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 16 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Yellow
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes
- Flammability rating (UL94):
- V2

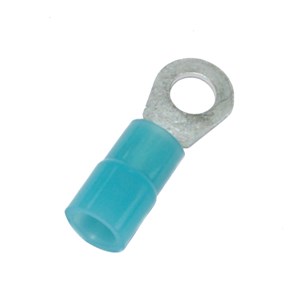

- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 27 A
- Flange shape:
- Ring shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Blue
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polyamide (PA)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-105 °C
- Material:
- Copper
- Voltage max:
- 600V
- Halogen free:
- Yes, No
- Flammability rating (UL94):
- V0, V2
- Total: 7
