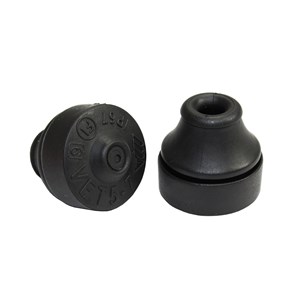

Grommets which both seals and locks. Locking by inserting the cable through the sleeve and then pull backcable a few millimeters, where the rubber rolls back and locksthe cable.

The thickness of the hole where the seal must be affixed can be 1.0-4.0 mm for PG-grommets and 1.3-5.0 mm for metric grommets.

Chloroprene (CR) has very good resistanceto oils and is self-extinguishing. Chloroprene is age- and weather-resistant.

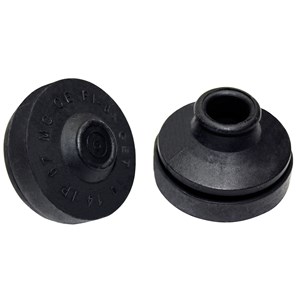

Grommets which both seals and locks. Locking by inserting the cable through the sleeve and then pull back the cable a few millimeters, where the rubber rolls back and locks the cable.

The thickness of the hole where the seal must be affixed can be 1.0-4.0 mm.

Protection: IP 67 within the specifies cable diameter(for both materials).
Material: Thermoplastic Elastomer (TPE).
Self-extinguishing.
Weather-resistant.
Temperature range: -40° C to +100° C
UL94 V-0.

LMC 14 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 14 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 14 Multigate is suitable for both outdoor and indoor use.
LMC 14 Multigate gives protection against water splashed from all directions.
LMC 14 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 14 IP54 Multigate will lead through and seal cables as follows: 24 - 54 mm 2 pcs14 - 22 mm 3 pcs14 - 18 mm 4 pcs10 - 14 mm 5 pcsTotal of 14 cables

LMC 25 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 25 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 25 Multigate is suitable for both outdoor and indoor use.
LMC 25 Multigate gives protection against water splashed from all directions.
LMC 25 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 25 IP54 Multigate will lead through and seal cables as follows: 14 - 35 mm 1 pc14 - 22 mm 5 pcs14 - 18 mm 12 pcs10 - 14 mm 5 pcs3.5 - 11 mm 2 pcsTotal of 25 cables

LMC 35 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 35 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 35 Multigate is suitable for both outdoor and indoor use.
LMC 35 Multigate gives protection against water splashed from all directions.
LMC 35 Multigate is inspected and sertified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 35 IP44 Multigate will lead through and seal cables as follows: 15 - 32 mm 1 pc12 - 18 mm 2 pcs10 - 14 mm 16 pcs7 - 12 mm 14 pcs6 - 10 mm 2 pcsTotal of 35 cables

LMC 51 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
LMC 51 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
LMC 51 Multigate is suitable for both outdoor and indoor use.
LMC 51 Multigate gives protection against water splashed from all directions.
LMC 51 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
LMC 51 IP54 Multigate will lead through and seal cables as follows: 15 - 25 mm 1 pc7 - 13 mm 50 pcsTotal of 51 cables

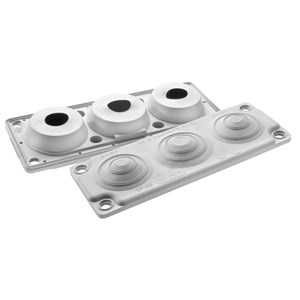

MB 4 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a B-standard cut-out (or FL 13)
MB 4 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MB 4 Multigate is suitable for both outdoor and indoor use.
MB 4 Multigate gives protection for limited ingress of dust and against water splashed from all directions.
MB 4 Multigate is inspected and sertified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards
All article numbers ending with “F” include fastening rivets.
MB 4 Multigate will lead through and seal cables as follows: 10 - 25 mm 4 pcsTotal of 4 cables

MB 5/11 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a B-standard cut-out (or FL 13).
MB 5/11 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MB 5/11 Multigate is suitable for both out door and indoor use.
MB 5/11 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m.
MB 5/11 Multigate can be used instead of MB 5 Multigate. The configuration has the same openings than MB 5 and 6 extra.
MB 5/11 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.

MC 10 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 10 Multigate is metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 10 Multigate is suitable for both outdoor and indoor use.
MC 10 Multigate gives protection for limited ingress of dust and against water splashed from all directions.
MC 10 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 10 Multigate will lead through and seal cables as follows: 7 - 12 mm 2 pcs10 - 30 mm 8 pcsTotal of 10 cables

MC 16 Reversible Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21)
MC 16 Reversible Multigate is plastic reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 16 Reversible Multigate can be used by two different ways. When the Multigate is used “facade” up, it works as a regular IP54 enclosure cable gland plate. The product contains a gasket against the cabinet and it comes with self-locking pins. This means that no special tools are needed at any point of the installation. When the Multigate is used reversed it functions as a piping grommet in dry space swichboards. Pipes lock securely to the seal in the gland plate by the friction of the elastic material.Membranes on the plate seal the pipes and effectively prevent condensate formation in pipes that run, for instance, through attic space. The self-locking pins supplied with the Multigate are also suitable for reverse mounting.
MC 16 Reversible Multigate is suitable for both outdoor and indoor use. MC 16 Reversible Multigate gives protection for limited ingress of dust and against water splashed from all directions.
MC 16 Reversible Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 16 Multigate will lead through and seal cables as follows: 10 - 20 mm 15 pcs10 - 30 mm 1 pcTotal of 16 cables

MC 25 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 25 Multigate is well known metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 25 Multigate is suitable for both outdoor and indoor use.
MC 25 Multigate gives absolute protection against dust and spraying water from all directions.
MC 25 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 25 Multigate will lead through and seal cables as follows: 5 - 7 mm 4 pcs8 - 12 mm 4 pcs10 - 14 mm 12 pcs14 - 20 mm 4 pcs20 - 26 mm 1 pcTotal of 25 cables

MC 25/27 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 25/27 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit. MC 25/27 Multigate is suitable for both outdoor and indoor use.
MC 25/27 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m.
MC 25/27 Multigate can be used instead of MC 25 Multigate. The configuration has the same openings than MC 25 and 2 extra.
MC 25/27 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 25/27 Multigate will lead through and seal cables as follows:5 - 7 mm 4 pcs8 - 12 mm 4 pcs10 - 14 mm 13 pcs14 - 20 mm 4 pcs20 - 26 mm 2 pcsTotal of 27 cables

MC 3 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21 ).
MC 3 Multigate is well known metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 3 Multigate is suitable for both outdoor and indoor use.
MC 3 Multigate gives absolute protection against dust and spraying water from all directions.
MC 3 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 3 Multigate will lead through and seal cables as follows: 24 - 54 mm 2 pcs IP6530 - 60 mm 1 pc IP658 - 12 mm 4 pcs IP54Total of 7 cables

MC 3/7 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 3/7 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 3/7 Multigate is suitable for both outdoor and indoor use.
MC 3/7 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m.
MC 3/7 Multigate can be used instead of MC 3 Multigate. The configuration has the same openings than MC 3.
MC 3/7 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 3/7 Multigate will lead through and seal cables as follows:
24 - 54 mm 2 pcs
30 - 60 mm 1 pc
10 - 14 mm 4 pcs
Total of 7 cables

MC 35 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 35 Multigate is well known metal reinforced cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 35 Multigate is suitable for both outdoor and indoor use.
MC 35 Multigate gives absolute protection against dust and spraying water from all directions.
MC 35 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 35 Multigate will lead through and seal cables as follows: 6 - 10 mm 2 pcs7 - 12 mm 14 pcs10 - 14 mm 16 pcs12 - 18 mm 2 pcs17 - 32 mm 1 pcTotal of 35 cables

MC 35/37 Multigate is suitable for leading through both low and medium power current cables as well as various types of tubing. It fits directly to a C-standard cut-out (or FL 21).
MC 35/37 Multigate is metal reinforced new type of cable gland plate made of various types of polymers. It meets the respective IP enclosure classes as it does not need separate gaskets or glands which makes it very easy to use, providing innumerable advantages in a single assembly unit.
MC 35/37 Multigate is suitable for both outdoor and indoor use.
MC 35/37 Multigate gives absolute protection against dust and both strong jets of water from all direction and against the effects of immersion between 15 cm and 1,0 m.
MC 35/37 Multigate can be used instead of MC 35 Multigate. The configuration has the same openings than MC 35 and 2 extra.
MC 35/37 Multigate is inspected and certified by SGS FIMKO: the Finnish authority in charge of electrical equipment safety standards.
All article numbers ending with “F” include fastening rivets.
MC 35/37 Multigate will lead through and seal cables as follows: 6 - 10 mm 4 pcs8 - 12 mm 14 pcs10 - 14 mm 16 pcs12 - 18 mm 2 pcs17 - 32 mm 1 pcTotal of 37 cables

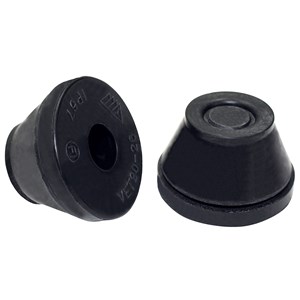

Grommets which both seals and locks. Locking by inserting the cable through the sleeve and then pull back the cable a few millimeters, where the rubber rolls back and locks the cable.

The thickness of the hole where the seal must be affixed can be 1.3-5.0 mm.

Protection: IP 67 within the specifies cable diameter(for both materials).
Material: Thermoplastic Elastomer (TPE).
Self-extinguishing.
Weather-resistant.
Temperature range: -40° C to +100° C
