MSP Downlight 1-Pack
A very powerful LED in frame which can tilt.The optic angle can be changed by switching between included reflectors. Honey comb is included to reduce blinding.
Delivered in a complete kit including spotlight, frame, driver, three different reflectors, 15°, 25° and 35° and honey comb.Available in white, black or aluminum color.
Technical data:
Power: 12W
Lumen: See below.
Dimmable: Yes
Light beam spread: See below.
Color temp: See below.
IP rating: IP20
Temp. Range: -10°C to +50°C
Life-span: 70% after 50.000 h
Amperage: 350mA (constant)
Amount of LED’s: 1pcs
Type of LED: COB, CREE
CRI: 90
Optics: Reflector with a prism in front of the LED.
Energy rating: A++
Cable: 400 mm AWG20
Size: Diameter = 93 mm, Depth = 65 mm
Installation: In holes sized 78-88 mm.
Springs with rubber protection. Parallel connector can be used if 12W is too powerful. Can be driven at 50% or 33% of full performance if 1 or 2 extra downlights are installed with parallel connector using the same driver.
Recommended drivers: LDD185 = 1 spotlight. Included in the kit.
Delivered in a complete kit including spotlight, frame, driver, three different reflectors, 15°, 25° and 35° and honey comb.Available in white, black or aluminum color.
Technical data:
Power: 12W
Lumen: See below.
Dimmable: Yes
Light beam spread: See below.
Color temp: See below.
IP rating: IP20
Temp. Range: -10°C to +50°C
Life-span: 70% after 50.000 h
Amperage: 350mA (constant)
Amount of LED’s: 1pcs
Type of LED: COB, CREE
CRI: 90
Optics: Reflector with a prism in front of the LED.
Energy rating: A++
Cable: 400 mm AWG20
Size: Diameter = 93 mm, Depth = 65 mm
Installation: In holes sized 78-88 mm.
Springs with rubber protection. Parallel connector can be used if 12W is too powerful. Can be driven at 50% or 33% of full performance if 1 or 2 extra downlights are installed with parallel connector using the same driver.
Recommended drivers: LDD185 = 1 spotlight. Included in the kit.
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 13 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 1170 lm
- Lamp efficacy:
- 90 lm/W
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP20
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 1170 lm
LED ARMATUR 60x60mm
LED Luminaires for pendant installation or surface mount to the ceiling.
Technical data:
Length: See below.
Height: 60 mm
Width: 60 mm
Color temp: See below.
Efficacy: Approx. 100lm/W, See below.
Life-span: 50.000h
Light beam spread: 110°
Voltage: 110-250VAC
Type of LED: SMD 2835 LED
Power: See below.
Dimmable: Yes
CRI: RA80
Lens: PMMA
Energy rating: A++
On/Off delay: <1s
IP rating: IP20
Driver: On/Off, 0-10V or Dali. See below.
Warranty: 3 years.
Technical data:
Length: See below.
Height: 60 mm
Width: 60 mm
Color temp: See below.
Efficacy: Approx. 100lm/W, See below.
Life-span: 50.000h
Light beam spread: 110°
Voltage: 110-250VAC
Type of LED: SMD 2835 LED
Power: See below.
Dimmable: Yes
CRI: RA80
Lens: PMMA
Energy rating: A++
On/Off delay: <1s
IP rating: IP20
Driver: On/Off, 0-10V or Dali. See below.
Warranty: 3 years.
- Dimming 0-10 V:
- Yes
- Dimming DALI:
- Yes
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Housing colour:
- Grey
- Voltage type:
- AC
- Nominal voltage:
- 110-250 V
- With control gear:
- Yes
- Light distribution:
- Symmetric
- Rated life time L70/B50 at 25 °C:
- 50000 h
- Max. system power:
- 28-50 W
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 80-89
- Luminaire efficacy:
- 100 lm/W
- Degree of protection (IP):
- IP20
- Rated luminous flux according to IEC 62722-2-1:
- 2900-4900 lm
LED Spotlight MSP-Serien
A very powerful LED spotlight which shall be used with a frame, reflector and maybe a honecomb.There are both frames with and without tilt.
Technical data:Power: 13WLumen: See below.Dimmable: YesLight beam spread: Depends on your choice of reflectorColor temp: See below.IP rating: IP20Temp. Range: -10°C to +50°CLife-span: 70% after 50.000hCurrent: Constant 350mAAmount of LED’s: 1pcsType of LED: COB, CREECRI: 90Optics: Reflector with a prism in front of the LED.Energy rating: A++Cable: 400mm AWG20Size: Depth=50mm, Height=60mmThis LED can be used in frames of white, black or aluminum color.
Technical data:Power: 13WLumen: See below.Dimmable: YesLight beam spread: Depends on your choice of reflectorColor temp: See below.IP rating: IP20Temp. Range: -10°C to +50°CLife-span: 70% after 50.000hCurrent: Constant 350mAAmount of LED’s: 1pcsType of LED: COB, CREECRI: 90Optics: Reflector with a prism in front of the LED.Energy rating: A++Cable: 400mm AWG20Size: Depth=50mm, Height=60mmThis LED can be used in frames of white, black or aluminum color.
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Material cover:
- None
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- With control gear:
- No
- Dimming depending on control gear:
- Yes
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 12 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 1170 lm
- Lamp efficacy:
- 90 lm/W
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Connection type:
- Crimping
- Degree of protection (IP):
- IP20
- Rated luminous flux according to IEC 62722-2-1:
- 1170 lm
LSC Förlängningskablar
Extension cables in different lengths.Used for when connectors or drivers can’t be placed adjacent to LED.
Dimbart drivdon konstant spänning
Drivers for LED StripsTechnical data:Voltage: 220-240 VACFrequency: 50-60 HzSize (LxWxH): 135x45x32mmTemp. Range: -20°C to +50°CIP rating: IP65Dimming: Leading Edge & TRIACIP rating: IP65
Installation:Cables for both input and output are 150mm, 1.5mm2.Suitable to be installed on top of suspended ceilings, inside lockers etc.See accessories below for appropriate connector.
Installation:Cables for both input and output are 150mm, 1.5mm2.Suitable to be installed on top of suspended ceilings, inside lockers etc.See accessories below for appropriate connector.
- Suitable for outdoor use:
- Yes
- Dimming phase cut-off (trailing edge):
- Yes
- Dimming phase cut-on (leading edge):
- Yes
- Housing:
- Plastic housing
- Suitable for constant current:
- No
- Suitable for constant voltage:
- Yes
- Output voltage:
- 24 V
- Output current:
- 0-3200 mA
- Output power:
- 0-75 W
- Protection class according to IEC 61140:
- III
- Degree of protection (IP):
- IP65
- Model:
- Dynamic

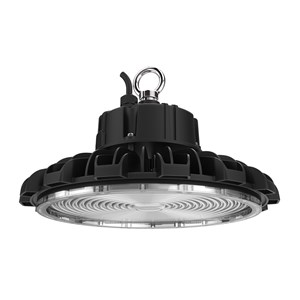

High Bay Ufo - Dali
Luminaires for industrial use, garages, warehouses, gymnasiums etc. This luminaire is newly developed and very compact in size, perfect for modern buildings where there are lots of other components and installations that must fit.
Technical data:
Diodes: Nichia
Performance: 150 lm / W
Power: 40-200 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 60-120°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
Technical data:
Diodes: Nichia
Performance: 150 lm / W
Power: 40-200 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 60-120°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
High Bay Linear - Dali
Luminaires for industrial use, garages, warehouses, gymnasiums etc. The oblong design makes this product very appropriate for being mounted between shelves and in aisles for forklifts.
Technical data:
Diodes: Nichia
Performance: 140 lm / W
Power: 50-240 W. Can be mounted in double rows for 240-480 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 80 x 40° or 130 x 55°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
Technical data:
Diodes: Nichia
Performance: 140 lm / W
Power: 50-240 W. Can be mounted in double rows for 240-480 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 80 x 40° or 130 x 55°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
High Bay Sport
High Bay Sports är armaturerna som klarar de högt ställda belysningskraven för racketsporter som Padel och Tennis, där bra och jämnt ljus är viktigt för utövningen. Beroende på setup klarar High Bay Sports både standarden från Svenska Idrottsförbundet eller Europeisk standard för nationellt och internationellt tävlingsspel*.
Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens väggfäste.
Armaturens gedigna konstruktion och kraftiga belysning gör den även lämplig för andra offentliga utrymmen såsom parkeringsgarage/platser, byggnader, bensinstationer osv.
Dioder: Nichia
Prestanda: 140lm/W
Effekt: 100W/150W
Dimbar: Ja
CRI: RA80
IP-klass: IP65
Ljusvinkel: 60x9°
Drivdon: 1-10V
Ljustemperatur: 4000K
Garanti: 5 år
Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens väggfäste.
Armaturens gedigna konstruktion och kraftiga belysning gör den även lämplig för andra offentliga utrymmen såsom parkeringsgarage/platser, byggnader, bensinstationer osv.
Dioder: Nichia
Prestanda: 140lm/W
Effekt: 100W/150W
Dimbar: Ja
CRI: RA80
IP-klass: IP65
Ljusvinkel: 60x9°
Drivdon: 1-10V
Ljustemperatur: 4000K
Garanti: 5 år
LED List COB 24VDC, IP20
Enkel installation med dubbelhäftande 3M tejp på baksidan.
Teknisk data:
Effekt: 8 W/m
Längd: 5 m
Bredd: 4 mm
Klippintervall: 62,5mm
Ljustemperatur: 2700KIP20
Lumen: 744 LM/m, 93 LM/W
Spänning: 24V DC
Ström: 333mA/m
Color Rendering Index(CRI): 90+
Energiklass: A++
Minimum bockningsradie: ≥50 mm
TUV-CE, UL, RoHs
Teknisk data:
Effekt: 8 W/m
Längd: 5 m
Bredd: 4 mm
Klippintervall: 62,5mm
Ljustemperatur: 2700KIP20
Lumen: 744 LM/m, 93 LM/W
Spänning: 24V DC
Ström: 333mA/m
Color Rendering Index(CRI): 90+
Energiklass: A++
Minimum bockningsradie: ≥50 mm
TUV-CE, UL, RoHs
- Max. system power:
- 40 W
- Colour temperature:
- 2700 K
- Number of poles:
- 2 .
- Lamp power per meter:
- 8 W
- Lamp power per foot:
- 2.439 W
- Luminous flux per meter:
- 93 lm
- Lamp voltage:
- 24 V
High Bay Linear - OnOff
Luminaires for industrial use, garages, warehouses, gymnasiums etc. The oblong design makes this product very appropriate for being mounted between shelves and in aisles for forklifts.
Technical data:
Diodes: Nichia
Performance: 140 lm / W
Power: 50-240 W. Can be mounted in double rows for 240-480 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 80 x 40° or 130 x 55°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
Technical data:
Diodes: Nichia
Performance: 140 lm / W
Power: 50-240 W. Can be mounted in double rows for 240-480 W.
Dimmable: Yes
CRI: RA80
IP rating: IP65
Light beam spread: 80 x 40° or 130 x 55°. See below.
Driver: On/Off, 0-10 V or Dali. See below.
Color temp: 3500-4500 K (Standard), other color temperatures per customer request.
Warranty: 5 years.
Options: Can be mounted with different types of holders, chains, motion detectors, light sensors etc.
Utomhusbelysning för väggmontage
WOT är armaturerna för utomhusbelysning med högt ställda belysningskrav. Armaturens gedigna konstruktion och kraftiga belysning gör den lämplig för offentliga utrymmen såsom parkeringsplatser/garage, byggnader, bensinstationer marinor, uppställningsplatser m.m.
Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens väggfäste.
Dioder: Nichia
Prestanda: 140 lm / W
Effekt: 100 W / 150 W
Dimbar: Ja
CRI: RA75
IP-klass: IP65
Ljusvinkel: 60° x 90°
Drivdon: 1-10 V
Ljustemperatur: 4000 K
Garanti: 5 år
Installation underlättas av ljusvinkelmarkörer/gradskalor på armaturens väggfäste.
Dioder: Nichia
Prestanda: 140 lm / W
Effekt: 100 W / 150 W
Dimbar: Ja
CRI: RA75
IP-klass: IP65
Ljusvinkel: 60° x 90°
Drivdon: 1-10 V
Ljustemperatur: 4000 K
Garanti: 5 år
- Dimming 1-10 V:
- Yes
- Suitable for wall mounting:
- Yes
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Housing colour:
- Grey
- Voltage type:
- AC
- With control gear:
- Yes
- Max. system power:
- 100-150 W
- Colour temperature:
- 3500-4500 K
- Colour rendering index CRI:
- 70-79
- Luminaire efficacy:
- 140 lm/W
- Degree of protection (IP):
- IP65
DC dimmer for rocker push-button
DC dimmer for use together with any push-button switch. Dim up to 96 watts (8A/12V or 4A/24V) of incandescent, halogen or LED lighting.Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 12 or 24 Volt DC power is present.Dims “non-dimmable” constant voltage LED’s.Suitable for 12VDC and 24VDC strip LED’s.Suitable for RGB or tunable white LED’sDigital control provides accurate and flicker free dimming to very low intensityNo minimum loadConnect any number of DC dimmers to a single push-button switch.
12V @ 8A24V @ 4A48V @ 2A
12V @ 8A24V @ 4A48V @ 2A
DC dimmer with Berker Integro rocker push-button
DC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights/strips.
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
Perfect for RVs, caravans, trailers, boats, cars, trucks, or anywhere 9- 48VDC is present.
Accurate and flicker free dimming to very low intensity. No minimum load.
Connect any number of DC dimmers to a single push-button switch.
Connect any no of push-button switch to dimmer.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
9-48VDC, 96W, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety IEC 61347-2-13:2014/AMD1:2016 with IEC 61347-1:2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
AC Dimmer for rocker push-button
AC LED DIMMER ~ 230VAC, 125W (0.5A), 50Hz, IP20. Kompakt universell dimmer för återfjädrande tryckknappsbrytare. Lätt att installera bakom den befintliga ljusbrytaren. Kräver ingen neutral ledning. Lämplig för LED med externt drivdon samt för eftermonterad LED, halogen eller glödlampa.
Trailing or Leading edge.
Minne: återgår till tidigare dimmerinställning vid start.
Vid strömförlust t.ex. strömavbrott startar dimmern på 50% vid start.
Arbetstemperatur: -5 - + 45° C
Mått: 36 x 36 x 12 mm
Trådlängd: 60 mm
IEC 60669-1IEC 60669-2-1
Trailing or Leading edge.
Minne: återgår till tidigare dimmerinställning vid start.
Vid strömförlust t.ex. strömavbrott startar dimmern på 50% vid start.
Arbetstemperatur: -5 - + 45° C
Mått: 36 x 36 x 12 mm
Trådlängd: 60 mm
IEC 60669-1IEC 60669-2-1
KOPPLINGSPLINTAR LED - S 3050 - Konsumentförpackning
Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Number of poles:
- 2 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection
LED Strip SMD 230V, IP65
230V LED strip där inget drivdon behövs. För att undvika problemet om vart man ska gömma drivdonet är denna LED strip lösningen, då det inte behövs något drivdon utan kan kopplas med 230V direkt.
LED stripen är 5m och det kan förkortas till önskad längd med 10cm intevall.
På LED stripen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd.
På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP65 kaplingsklass.
IP65
Color Rendering Index(CRI): 80
TUV-CE, RoHs
LED stripen är 5m och det kan förkortas till önskad längd med 10cm intevall.
På LED stripen finns det klipppunkter med kopparbleck där LED stripen kan klippas till önskad längd.
På dessa bleck kan man löda på nya kablar, löddningspunkterna behöver tätas med silikon för att uppnå IP65 kaplingsklass.
IP65
Color Rendering Index(CRI): 80
TUV-CE, RoHs
- Max. system power:
- 75 W
- Colour temperature:
- 2700 K
- Number of poles:
- 2 .
- Lamp power per meter:
- 15 W
- Lamp power per foot:
- 4.573 W
- Luminous flux per meter:
- 1470 lm
- Lamp voltage:
- 220-240 V
ArtLight till 3-fasskena, 10W
ArtLight is a contour spotlight with advanced optics, ideal for actively illuminating selected areas. With simple adjustments, you can switch from circular to rectangular or square light distribution with sharp or diffuse edges and change the beam angle between 20°-35°. This flexibility opens up many possibilities for illuminating artworks or other objects.
Framing, for example, a painting by projecting light within its edges creates a dramatic self-illuminating effect.
Rotatable: 330°
Tiltable: 90°
Beam angle: 20°-35°
• Easy to adjust the lighting directly without extra tools.
• Enhances the colors of art or pictures in the best way with excellent color rendering with a CRI of 95.
• Uses already installed 3-phase tracks.
Spotlight diameter: 45 mm
Spotlight length: 150 mm
Maximum projection from track: 216 mm
Track adapter: 150 x 32 x 46 (L x W x H).
Framing, for example, a painting by projecting light within its edges creates a dramatic self-illuminating effect.
Rotatable: 330°
Tiltable: 90°
Beam angle: 20°-35°
• Easy to adjust the lighting directly without extra tools.
• Enhances the colors of art or pictures in the best way with excellent color rendering with a CRI of 95.
• Uses already installed 3-phase tracks.
Spotlight diameter: 45 mm
Spotlight length: 150 mm
Maximum projection from track: 216 mm
Track adapter: 150 x 32 x 46 (L x W x H).
- Dimming phase cut-on (leading edge):
- Yes
- Housing material:
- Aluminium
- Suitable for surface mounting:
- Yes
- Suitable for built-in mounting:
- No
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- Yes
- Suitable for clamp-mounting:
- No
- Adjustability:
- Rotating and swivelling
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Black
- Material cover:
- None
- Surface brushed:
- No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- Yes
- Reflector:
- High-gloss
- Light distribution:
- Symmetric
- Beam angle:
- Variable beam angle
- Light outlet:
- Direct
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 10 W
- Colour of light:
- White
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 90-100
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Covering of the luminaire with thermally insulating material possible:
- No
- Connection type:
- Other
- Emergency power supply integrated:
- No
- Surface protection:
- Powder coating
LED Spotlight LSP-Serien i butiksförpackning
Small downlights which can be put in different sized frames. There are frames for different applications, they can be round, square or rectangular. These downlights can be tilted, only use high quality components and has a premium feeling.Works for both indoor and outdoor use.Technical data:Power: 3.3WLumen: See below.Dimmable: YesLight beam spread: 60°Color temp: See below.IP rating: IP54Temp. Range: -20°C to +50°CLife-span: 70% after 50.000hVoltage: 1-10VCurrent: Constant 350mAAmount of LED’s: 1pcsType of LED: COB, CREE CXA1304-2 STEPCRI: RA90Optics: Reflector with a prism in front of the LED.Glass: ClearEnergy rating: A++Cable: 100mm AWG22 with connector.Size: Depth=50mm, Height=60mmAvailable in white, black or aluminum color.
- Dimmable:
- Yes
- Dimming 0-10 V:
- No
- Dimming 1-10 V:
- No
- Dimming DALI:
- No
- Dimming DSI:
- No
- Dimming DMX:
- No
- Dimming potentiometer (integrated):
- No
- Dimming GPRS:
- No
- Dimming LineSwitch:
- No
- Dimming manufacturer's proprietary system:
- No
- Dimming mains voltage modulation:
- No
- Dimming phase cut-off (trailing edge):
- No
- Dimming phase cut-on (leading edge):
- No
- Dimming programmable:
- No
- Dimming RF:
- No
- Dimming Sine Wave Reduction:
- No
- Dimming Touch and Dim:
- No
- Dimming Zigbee:
- No
- Protection class according to IEC 61140:
- III
- Housing material:
- Aluminium
- Suitable for surface mounting:
- No
- Suitable for built-in mounting:
- Yes
- Suitable for wall mounting:
- No
- Suitable for suspended mounting:
- No
- Suitable for ceiling mounting:
- Yes
- Suitable for traverse mounting:
- No
- Suitable for pedestal/floor mounting:
- No
- Suitable for light-track mounting:
- No
- Suitable for clamp-mounting:
- No
- Suitable for low voltage cable system:
- No
- Adjustability:
- Rotatable
- With movement sensor:
- No
- With light sensor:
- No
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Suitable for number of light sources:
- 1 .
- Lamp holder:
- None
- Housing colour:
- Aluminium, Black, White
- Material cover:
- None
- Surface brushed:
- Yes, No
- Voltage type:
- AC
- Nominal voltage:
- 220-240 V
- Type of control gear:
- LED operating device current-controlled
- With control gear:
- No
- Dimming depending on control gear:
- Yes
- Reflector:
- High-gloss
- Light distributor:
- Reflector
- Light distribution:
- Symmetric
- Beam angle:
- 41-80° - Wide beam
- Light outlet:
- Direct
- Energy efficiency class of the built-in lamp:
- A++, A+, A (LED)
- Degree of protection (NEMA):
- Other
- Suitable for lamp power:
- 0 N/A
- Max. system power:
- 3.3 W
- Colour of light:
- White
- Colour temperature:
- 2700 K
- Colour rendering index CRI:
- 90-100
- Luminous flux:
- 310 lm
- Lamp efficacy:
- 94 lm/W
- Luminous intensity:
- 368 cd
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:
- No
- Suitable for workplace according to EN 12464-1:
- No
- Covering of the luminaire with thermally insulating material possible:
- Yes
- Connection type:
- Crimping
- Frame shape:
- Round
- Degree of protection (IP):
- IP54
- Surface protection:
- Other, Powder coating
- Rated luminous flux according to IEC 62722-2-1:
- 310 lm
