- Total: 14
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Pink, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 3-30 A
- Nominal current:
- 3-30 A
- Transparent:
- Yes
- Fuse type:
- Micro II

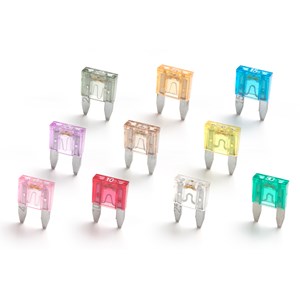

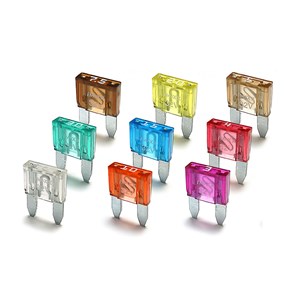

Minisäkringar i Nylon (PA) - 58V
Mini_VP
Maximum voltage: 58 V DCCurrent rating: 2-30 AMaterial: Nylon (PA)Size (W x D x H): 11.0 x 3.8 x 16.2 mm
- Release characteristic:
- Fast (F)
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Natural colour, Pink, Red, Purple, Other
- Nominal voltage DC:
- 58 V
- Max. current (Imax):
- 2-30 A
- Nominal current:
- 2-30 A
- Fuse type:
- Mini
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Red, Other
- Nominal voltage DC:
- 28 V
- Nominal current:
- 5-40 A
- Transparent:
- No
Midi fuses - 58V
Flatsäkringar_MIDI_vp
Maximal spänning: 58 V DC
Ström: 2-40 A
Material: Nylon PA66, Zink Alloy
Drifttemperaturområde: -40° C - 125° C
Standard: ISO 8820-3
Storlek (B x D x H): 19.1 x 5.1 x 18.6 mm
Ström: 2-40 A
Material: Nylon PA66, Zink Alloy
Drifttemperaturområde: -40° C - 125° C
Standard: ISO 8820-3
Storlek (B x D x H): 19.1 x 5.1 x 18.6 mm
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Pink, Red, Purple, Other
- Nominal current:
- 2-40 A
- Transparent:
- Yes
Midi fuses
10204
Maximum voltage: 32 V DCCurrent rating: 1-40 ASize (W x D x H): 18.8 x 5.0 x 18.7 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Fast (F)
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 2-40 A
- Nominal current:
- 2-40 A
- Fuse type:
- Midi

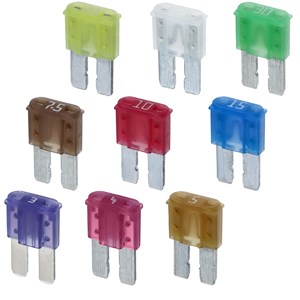

Flatsäkring Micro
10201
A type of blade fuse that Mazda, Toyota and Lexus have started using in some models.Maximum voltage: 58 V DCCurrent rating: 2-30 ASize (W x D x H): 11.0 x 3.8 x 8.8 mm
- Release characteristic:
- Fast (F)
- Type of current:
- DC
- Colour code:
- Amber, Blue, Brown, Yellow, Grey, Green, Pink, Red, Purple, Other
- Nominal voltage DC:
- 58 V
- Max. current (Imax):
- 2-30 A
- Nominal current:
- 2-30 A
- Fuse type:
- Micro

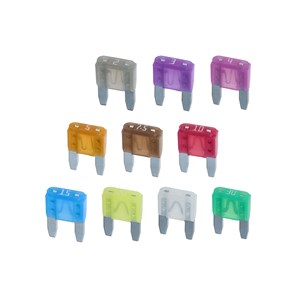

Minisäkringar i Polykarbonat (PC) - 32V
10202
Maximum voltage: 32 V DCCurrent rating: 2-30 AMaterial: Polycarbonate (PC)Size (W x D x H): 11.0 x 3.8 x 16.2 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Pink, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 3-30 A
- Nominal current:
- 3-35 A
- Fuse type:
- Mini

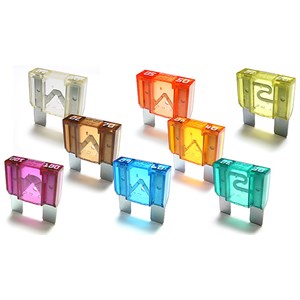

Maxi fuses
10206
Maximum voltage: 32 V DCCurrent rating: 2-100 ASize (W x D x H): 29.5 x 8.9 x 34.3 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Natural colour, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 20-100 A
- Nominal current:
- 20-100 A
- Fuse type:
- Maxi
Mini fuses with indicator diode
10207
Mini fuse, BL-seriesThe built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).
Saves a lot of time troubleshooting.Maximum voltage: 32 V DCCurrent rating: 2-30 ASize excl. lamp (W x D x H): 11.3 x 4.1 x 16.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Saves a lot of time troubleshooting.Maximum voltage: 32 V DCCurrent rating: 2-30 ASize excl. lamp (W x D x H): 11.3 x 4.1 x 16.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Pink, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 2-30 A
- Nominal current:
- 2-30 A
- Fuse type:
- Mini

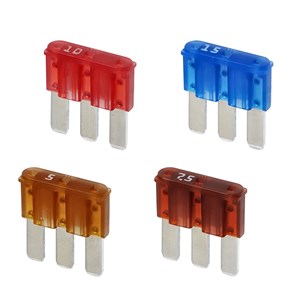

- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Red, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 5-15 A
- Nominal current:
- 5-15 A
- Fuse type:
- Micro III
Flatsäkring, Maxi C
Flatsäkring MAXI C_vp
A type of blade fuse that FCA & Volkswagen group have started using in some new models.
Maximum voltage: 32 V DC
Current: 20-60 A
• Meets international specs, complies to ISO 8820-10
• Element visibility from side, semitransparent fuse body
• Check fuse in fuse block using test points at top of the fuse
• Safe and highly reliable/consistent operation with a single piece construction
• Color coded body materials with OCR printed rating
• High temperature resistive plastics used for fuse body materials
• Time-delayed functioning with purpose designed element shapes
• Body material PA66 (U.L. 94 Flammability rating – V2)
• Element material, Zinc alloy, silver plated blades
Maximum voltage: 32 V DC
Current: 20-60 A
• Meets international specs, complies to ISO 8820-10
• Element visibility from side, semitransparent fuse body
• Check fuse in fuse block using test points at top of the fuse
• Safe and highly reliable/consistent operation with a single piece construction
• Color coded body materials with OCR printed rating
• High temperature resistive plastics used for fuse body materials
• Time-delayed functioning with purpose designed element shapes
• Body material PA66 (U.L. 94 Flammability rating – V2)
• Element material, Zinc alloy, silver plated blades
- Type of current:
- DC
- Colour code:
- Blue, Yellow, Green, Red, Other
- Nominal current:
- 20-60 A
- Transparent:
- Yes
Midisäkringar
MIDIOTO_säkringar_vp
Maximum voltage: 32 V DCCurrent rating: 1-40 ASize (W x D x H): 18.8 x 5.0 x 18.7 mm
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Fast (F)
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Grey, Green, Pink, Red, Black, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 1-40 A
- Nominal current:
- 1-40 A
- Fuse type:
- Midi
Midi fuses with indicator diode
77775
Midi fuse, BL-series
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).Saves a lot of time troubleshooting.
Maximum voltage: 32 V DCCurrent rating: 3-30 ASize excl. lamp (W x D x H): 18.8 x 5.3 x 18.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode,then with the suffix -PP added to the end of the part number.
The built-in miniature lamp (Bulb or LED) lights-up after the fusing element has interrupted (show-blow).Saves a lot of time troubleshooting.
Maximum voltage: 32 V DCCurrent rating: 3-30 ASize excl. lamp (W x D x H): 18.8 x 5.3 x 18.7 mmLamp height: 3.5 mm
This part is also available in retail packaging (pin-pac) with barcode,then with the suffix -PP added to the end of the part number.
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Blue, Brown, Yellow, Green, Pink, Red, Purple, Other
- Nominal voltage DC:
- 32 V
- Max. current (Imax):
- 3-30 A
- Nominal current:
- 3-30 A
- Fuse type:
- Midi

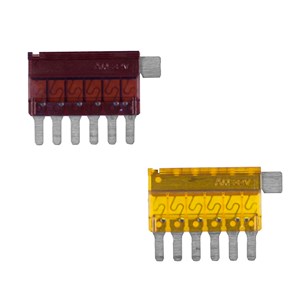

Multisäkring, 32 V DC
77801
Multi fuse relay with 6 fuses in one housing.For Mercedes cars.
Maximum voltage: 32 V DCCurrent rating: 5-7.5 ASize (W x D x H): 18.8 x 5.0 x 18.7 mm
Used in models:ML > 2010 W166GLE > 2018 W167C > 2014 W205E > 2016 W213S > 2013 W222E - Coupe > 2016 W238GLC > 2015 W253G > 2012 W463Sprinter > 2014 W907
Maximum voltage: 32 V DCCurrent rating: 5-7.5 ASize (W x D x H): 18.8 x 5.0 x 18.7 mm
Used in models:ML > 2010 W166GLE > 2018 W167C > 2014 W205E > 2016 W213S > 2013 W222E - Coupe > 2016 W238GLC > 2015 W253G > 2012 W463Sprinter > 2014 W907
- Release characteristic:
- Medium time-lag
- Type of current:
- DC
- Colour code:
- Brown, Other
- Nominal voltage DC:
- 32 V
- Nominal current:
- 5-7.5 A
