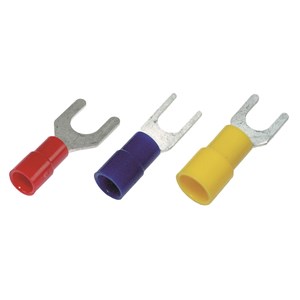

Gaffelkabelskor med bockad framkant PB-serien
Gaffelkabelskor_med_bockad_framkant_PB_serien_vp
Polycarbonate-insulated terminals. Manufactured in Japan to the highest quality standards. They feature a welded neck and are annealed, allowing the terminals to be crimped in any direction. Neck with Easy Entry for faster and easier insertion of the conductor into the terminal. This reduces the risk of bent strands, thereby eliminating the risk of flashover and degraded electrical performance. Manufactured from 99.95% pure copper and electro-tin plated for optimal corrosion protection.
- Suitable for Class 2 conductor:
- Yes
- Suitable for Class 5 conductor:
- Yes
- Reel/roll packaging:
- No
- Max. current (Imax):
- 19 A
- Flange shape:
- Fork shape
- According to DIN:
- No
- Insulation:
- Partially isolated
- Colour insulation:
- Red
- Sleeve form:
- Short
- Suitable for solid conductors:
- No
- Suitable for stranded conductors:
- Yes
- Suitable for fine strand conductors:
- Yes
- Suitable for high temperatures (to 650 °C):
- No
- Suitable for insulated varnish:
- No
- Suitable for round conductors:
- Yes
- Suitable for flat conductors:
- No
- Surface protection:
- Tinned
- Material insulation:
- Polycarbonate (PC)
- Fire classification:
- According to UL94V2
- Operating temperature:
- -40-125 °C
- Material:
- Copper
- Voltage max:
- 600V
- Flammability rating (UL94):
- V2
- UL-File No.:
- E44245
