Pressverktyg Rullpressning
CRB 0560 / CRB 0560 L

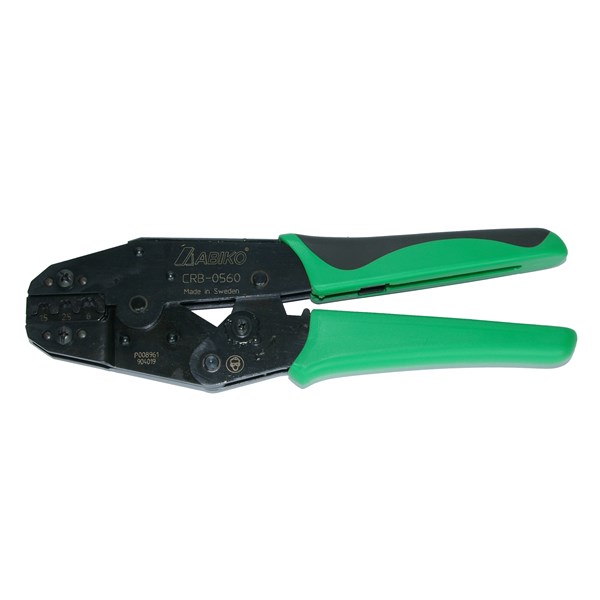

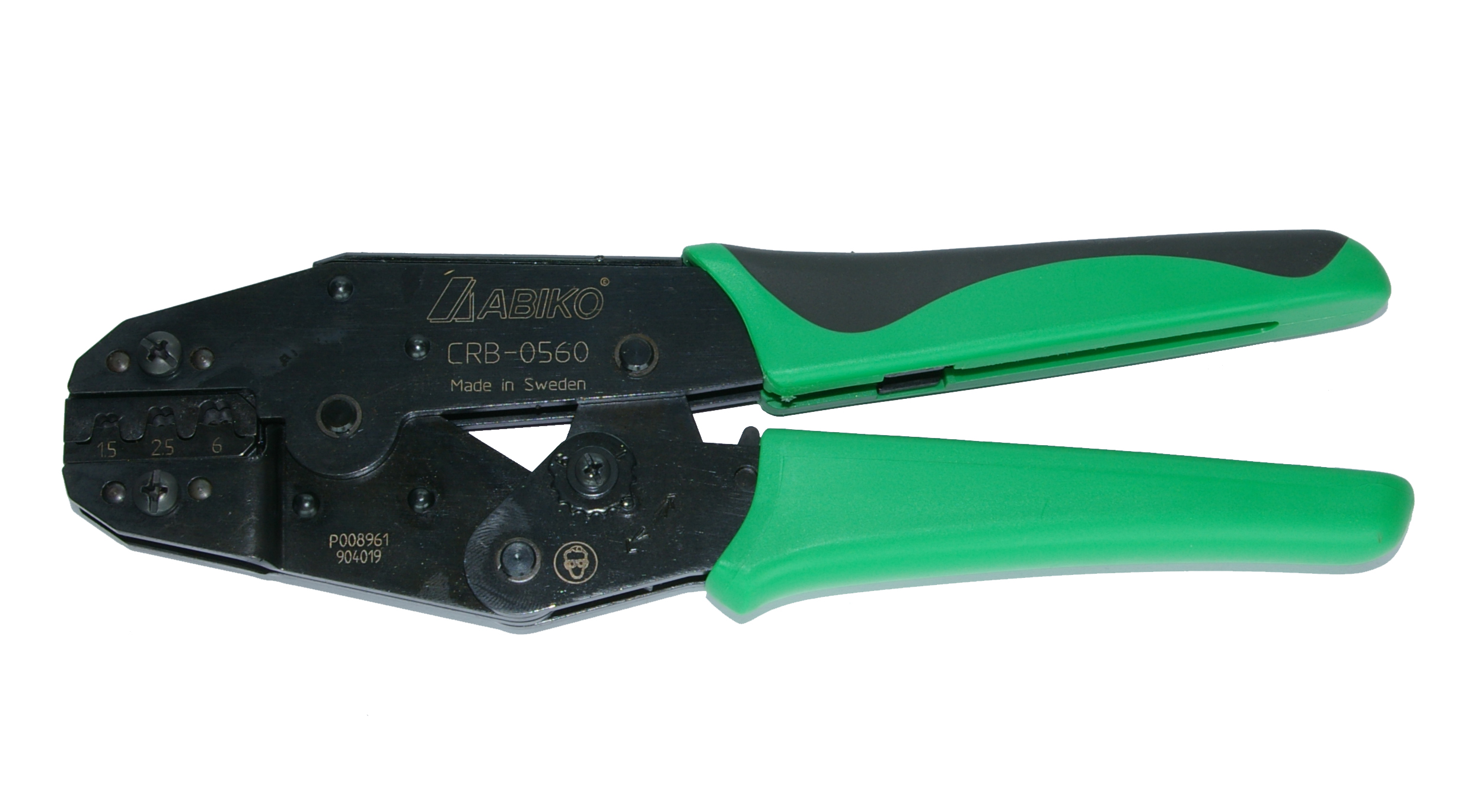

CRB 0560 är ett pressverktyg för rullpressning av kabelskor (open barrel) med ledarea från 0.5-6.0 mm².
Det finns 3 uttag i verktygets pressback:
1: 0.5-1.5 mm² (AWG 20-16)
2: 1.5-2.5 mm² (AWG 16-14)
3: 4.0-6.0 mm² (AWG 12-10)
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 230 mm
CRB 0560 L: Tången levereras i en väska med 3 st kabelskohållare/locators.
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Non-insulated terminals, roller compaction
- Compression shape:
- Roll compression (shrinking)
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
Product Description | Cross section | MOQ | Unit | Length | Availability | ||
---|---|---|---|---|---|---|---|
PRESSVERKTYG RULLPRESS, 0.5-6.0mm2 | 0.5-6 mm² | 1 . | pcs | 230 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
Technical Properties
- Total: 1
Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PRESSVERKTYG RULLPRESS, 0.5-6.0mm2 | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Non-insulated terminals, roller compaction | Roll compression (shrinking) |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|
PRESSVERKTYG RULLPRESS, 0.5-6.0mm2 | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | CRB0560 |
Yes
|
|
|
