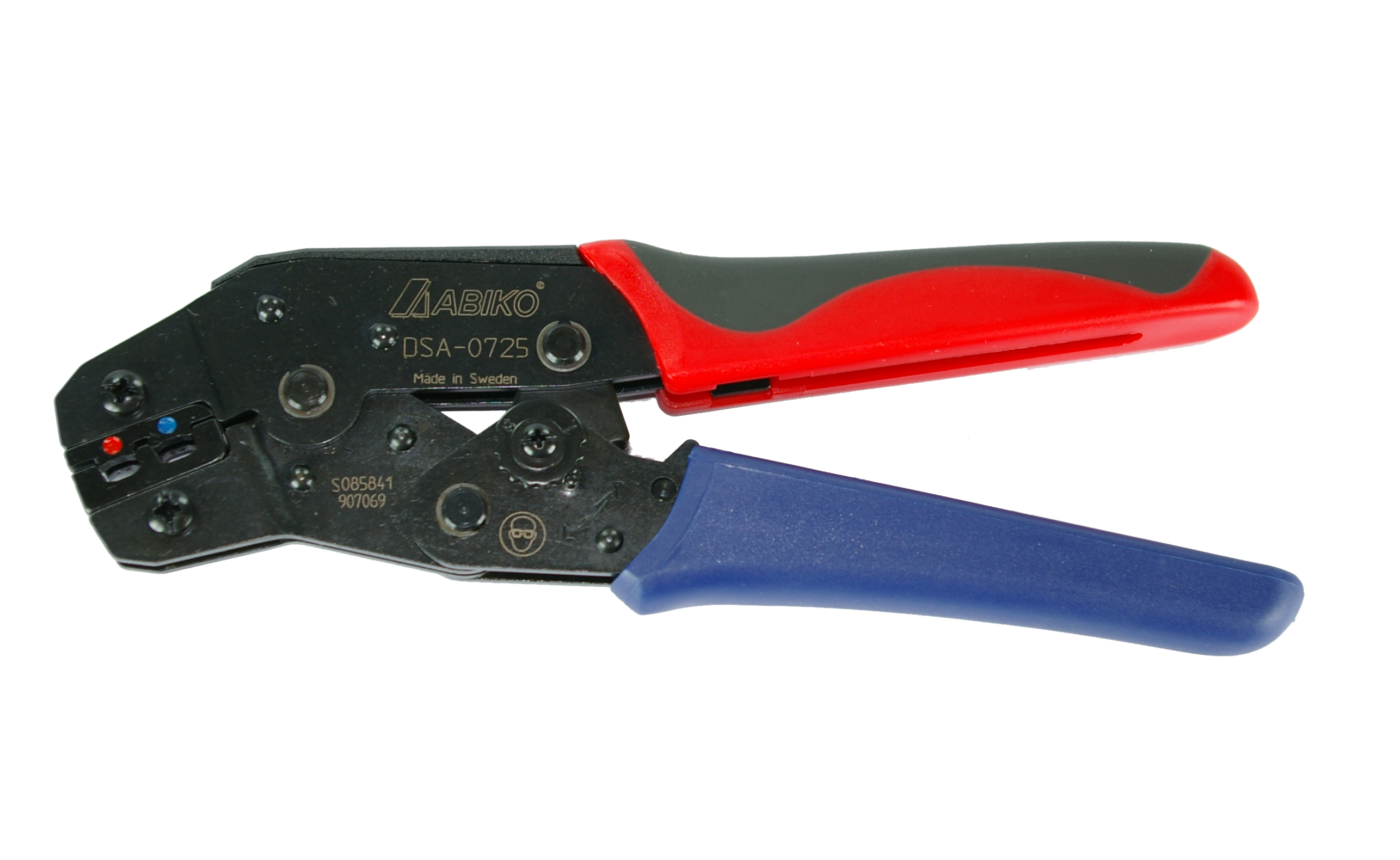

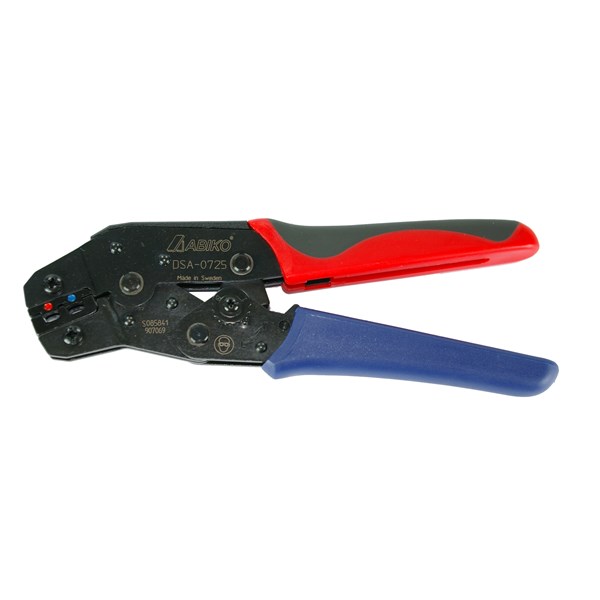

DSA 0725
DSA 0725 är ett symmetriskt pressverktyg för 0.75-2.5 mm² (AWG 18-14) isolerade kabelskor.
Har löstagbara backar. Levereras i blisterförpackning för butiksexponering.
Det finns 2 uttag i verktygets pressback:
Röd: 0.75-1.5 mm²
Blå: 1.5-2.5 mm²
Pressverktyget är en ratchettång med inbyggd returspärr som garanterar att kontaktpressningen fullföljs.
Längd: 195 mm
Technical properties
- With locking device (for mechanical tools):
- Yes
- Inserts exchangeable:
- No
- Number of included inserts:
- 1 .
- With automatic return:
- Yes
- Cycle time:
- 2 s
- Suitable for:
- Cable lugs and connectors
- Construction/operation:
- Mechanical
- For component:
- Insulated terminals
- Compression shape:
- Oval pressing
Show more
Item List
Accessories
Related products
Spare Parts
Product video
Documents
Dimensions
- Total: 1
Product Description | Cross section | MOQ | Unit | Length | Availability | ||
---|---|---|---|---|---|---|---|
PRESSVERKTYG ISOLERADE KABELSKOR, 0.75-2.5mm2, SYMMETRISK | 0.75-2.5 mm² | 1 . | pcs | 195 mm |
Yes
|
|
|
- Total: 1
Similar Options
Approvals
- Total: 1
Product Description | Availability | ||
---|---|---|---|
PRESSVERKTYG ISOLERADE KABELSKOR, 0.75-2.5mm2, SYMMETRISK |
Yes
|
|
|
- Total: 1
Technical Properties
- Total: 1
Product Description | With locking device (for mechanical tools) | Inserts exchangeable | Number of included inserts | With automatic return | Cycle time | Suitable for | Construction/operation | For component | Compression shape | Availability | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
PRESSVERKTYG ISOLERADE KABELSKOR, 0.75-2.5mm2, SYMMETRISK | Yes | No | 1 . | Yes | 2 s | Cable lugs and connectors | Mechanical | Insulated terminals | Oval pressing |
Yes
|
|
|
- Total: 1
Other information
- Total: 1
Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
---|---|---|---|---|---|---|---|---|---|
PRESSVERKTYG ISOLERADE KABELSKOR, 0.75-2.5mm2, SYMMETRISK | EC000168 - Crimp tool cable lugs, cable end sleeves, screen connection | 9.0 |
|
One Hand (ratchet) | PRESSVERKTYG ISOLERADE KABELSKOR | DSA0725 |
Yes
|
|
|
- Total: 1
