2684-7600-01-00
HYDRAULISK CYLINDER 19 (3/4"), .
2684-7600-01-00
- Availability:
-
No
- Total: 1
Related items
Hydraulisk cylinder

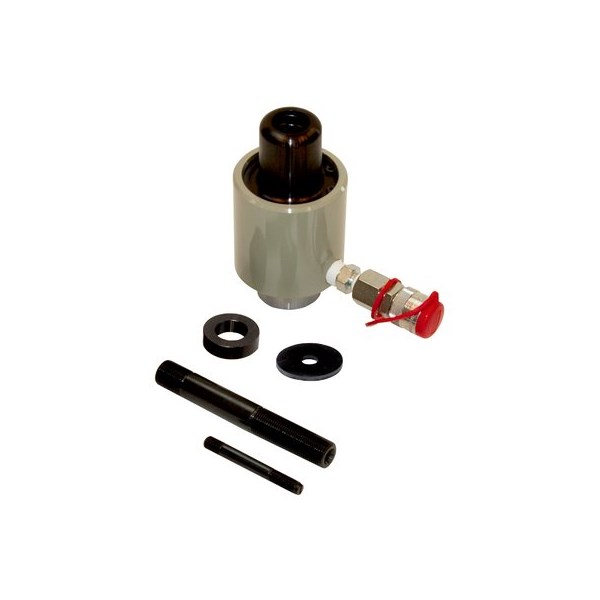

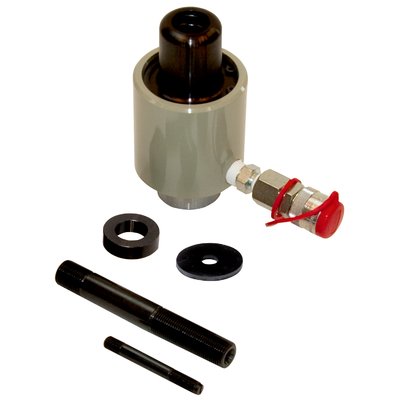

Hydraulic cylinder with quick release coupling,designed for confined space, washer, spacer sleeve and 2 draw studs ø 9.5 mm (3/8“) and ø 19 mm (3/4”).
Dimension: Punching cylinder: ø 78 x 148 mm
Suitable for: round punches up to ø 120 mm / square punches 92 mm / rectangular punches up to 138 mm diagonal
Max. sheet metal thickness: Sheet steel 3 mm; 11 ga / Stainless steel 2 mm; 14 ga / Aluminum 4 mm; 6 ga
Threaded for: 19 mm (3/4”) draw studs
Operating pressure: 450 bar
Weight: 2.7 kg
Piston stroke: 28 mm
- Total: 1
Product Properties
Dimensions
| MOQ | 1 . |
|---|---|
| Unit | pcs |
Logistics
| Barcode | |
|---|---|
| Country of origin | DE |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | 2684-7600-01-00 |
| Taric code | 84679900 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC001085 - Pliers for hole punch |
|---|---|
| ETIM-Release | 8.0 |
| Trademark | Häwa |
| Product Group | Portable Stamping tools, manual |
| Search Description | HYDRAULISK CYLINDER 19 (3/4") |
| Alternative SKU | 2684-7600-01-00 |
Compliance
| REACH | No SVHC (Latest. 23 Jan 2024) |
|---|---|
| RoHS | N/A |
| SCIP | Not Applicable |
