360 view

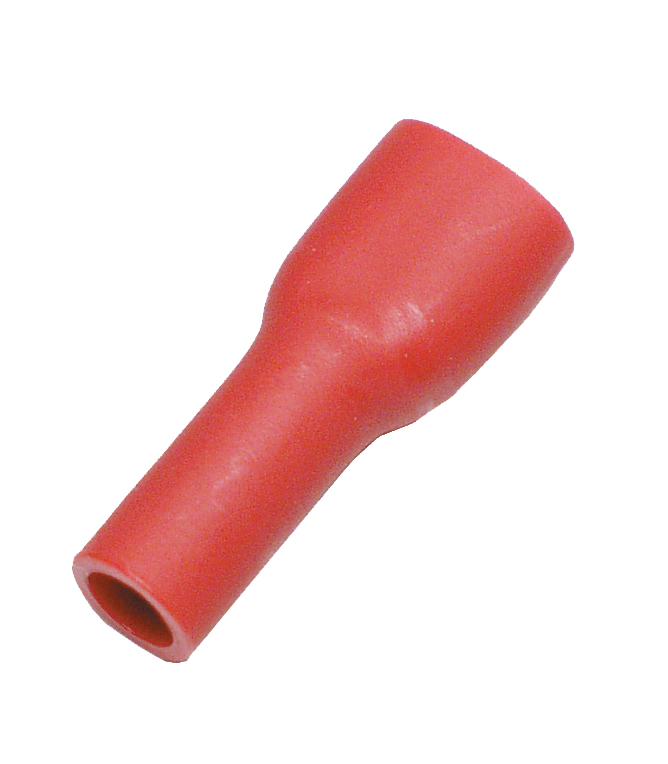

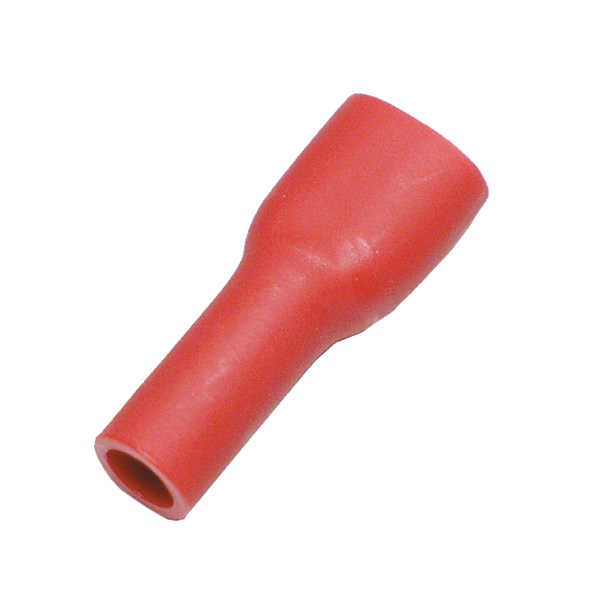

A 1504 FLF-5

FULLY INSULATED RECEPTACLE RED, 4.8x0.5mm

Sku

A 1504 FLF-5

Availability:: Yes

Page size:

Total: 1

	Product Description	Stock code
	Fully Insulated female disconnects A-series	64501			.

Total: 1

Page size:

Total: 1

Related items

Fully Insulated female disconnects A-series

64501

Long copper sleeve Receptacles with suffix “BR” are made in bronze, not brass.

Total: 1

E0842366

Product Properties:

Model	Bushing
Max. current (Imax)	15 A
Insulation	Fully isolated
Colour insulation	Red
With cam clamp	No
With tap spreader	No
Material insulation	Polyvinyl chloride (PVC)
Operating temperature	-25-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

Dimensions:

ID	2.7 mm
L	20 mm
N	11 mm
W	4.8 mm
MOQ	100 .
Unit	pcs
Nominal cross section	0.5-1.65 mm²
AWG-range	22-16 .
Plug dimensions	Flat 4.8x0.5 mm

Approvals:

UL-File No.	E70188
Approved according to CE	Yes
Approved according to CSA	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V0

Logistic information:

Barcode	733117610016
Country of origin	JP
E-no	E0842366
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	A 1504 FLF-5
Taric code	85369010
Unit	pcs

Other information:

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	JST
Product Group	Fully Insulated Receptacle - PVC
Search Description	19851100 , LVDDF1.25-187A-5 (LF
Alternative SKU	A1504FLF-5

Compliance:

Conflict Minerals	Yes, see report under tab "Documents"
PFAS	No PFAS
REACH	No SVHC (240 Subs. 23 Jan 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)
ECCN Primary Classification	N/A
ECCN Export Control Code Number	EAR99

Genererate statement of compliance:

Product Properties

Model	Bushing
Max. current (Imax)	15 A
Insulation	Fully isolated
Colour insulation	Red
With cam clamp	No
With tap spreader	No
Material insulation	Polyvinyl chloride (PVC)
Operating temperature	-25-75 °C
Material	Brass
Voltage max	300V
Halogen free	No
Packaging	Loose piece

Dimensions

ID	2.7 mm
L	20 mm
N	11 mm
W	4.8 mm
MOQ	100 .
Unit	pcs
Nominal cross section	0.5-1.65 mm²
AWG-range	22-16 .
Plug dimensions	Flat 4.8x0.5 mm

Logistics

Barcode	733117610016
Country of origin	JP
E-no	E0842366
Item status	Stock item, normally in stock with reservation for in between sales.
MOQ	100 .
Packaging	Loose piece
Stock code	A 1504 FLF-5
Taric code	85369010
Unit	pcs

Approvals

UL-File No.	E70188
Approved according to CE	Yes
Approved according to CSA	Yes
With approval according to UL	Yes
Inflammability class of insulation material according to with UL94	V0

Other info

ETIM-Class	EC000516 - Round or flat plug/receptacle
ETIM-Release	9.0
Trademark	JST
Product Group	Fully Insulated Receptacle - PVC
Search Description	19851100 , LVDDF1.25-187A-5 (LF
Alternative SKU	A1504FLF-5

Compliance

Conflict Minerals	Yes, see report under tab "Documents"
PFAS	No PFAS
REACH	No SVHC (240 Subs. 23 Jan 2024)
RoHS	RoHS 3 (2015/863)
SCIP	Not Applicable
US TSCA	No (5 PBT Subs, Feb 2021)
ECCN Primary Classification	N/A
ECCN Export Control Code Number	EAR99

Genererate statement of compliance:
