12556599-1000

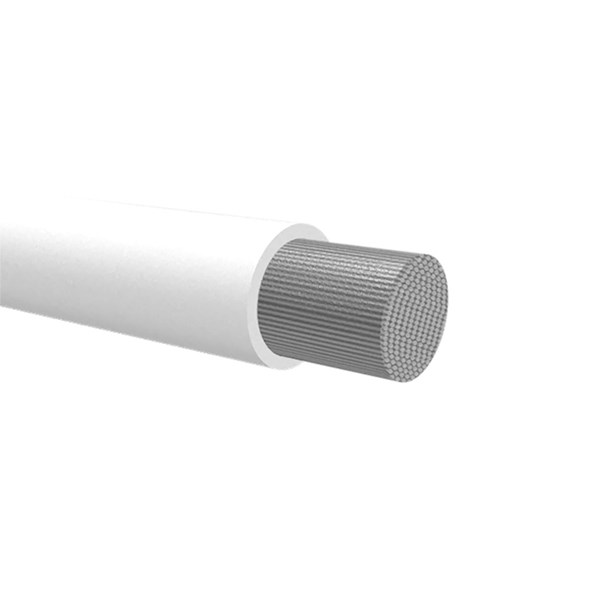

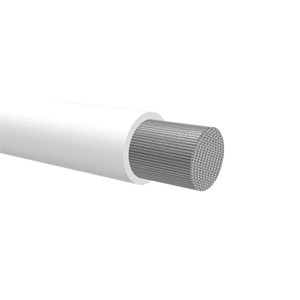

RADOX UL3271, AWG 18, WHITE SPOOL HS400, 600V, FT, 125C
12556599-1000
- Availability:
-
No
- Total: 1
Related items
RADOX 3271
Flexibel kopplingskabel för intern kabeldragning i lampor, uppvärmningsanordningar, elektriska maskiner, styr- och apparatskåp, samt inom byggnadsindustrin. Idealisk för installation inuti rör samt för utanpåliggande installation.
Mycket goda elektriska och mekaniska egenskaper. Brett temperaturområde samt hög tålighet mot oljor, ozon, hydrolys och mekanisk påverkan. Kopplingstråden är svårantändlig, vid brand utvecklas minimalt med rök och inga korrosiva gaser avges.
- Total: 1
Product Properties
| Number of cores | 1 . |
|---|---|
| Material core insulation | Polyolefin |
| Specification core insulation | Other |
| Core identification | None |
| Protective conductor | No |
| Material outer sheath | None |
| Specification material outer sheath | Other |
| Colour outer sheath | White |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Permitted cable outer temperature after assembling without vibration | -40-125 °C |
| Conductor material | Copper |
| Twisted cores | No |
| Max. conductor temperature | 125 °C |
| Screen | No |
| Protective barrier | N/A |
| Armouring/reinforcement | None |
| Insulation integrity | N/A |
| Drain wire | No |
| Nominal voltage | 600 V |
| Conductor category | Class 5 = flexible |
| Colour | White |
| Material insulation | Polyolefin (POE) |
| Operating temperature | -40-125 °C |
| Core colour | White |
| Conductor surface | Tinned |
| Halogen free | No |
| Packaging | Spool HS400 |
| Min. permitted bending radius, stationary application/permanent installation | 8.55 mm |
Dimensions
| Nominal cross section conductor | 0.823 mm² |
|---|---|
| MOQ | 5000 . |
| Outer diameter approx. | 2.85 mm |
| Min. permitted bending radius, stationary application/permanent installation | 8.55 mm |
| Unit | m |
| AWG size | 18 |
| Nominal voltage | 600 V |
Logistics
| Barcode | |
|---|---|
| Country of origin | CH |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 5000 . |
| Packaging | Spool HS400 |
| Stock code | 12556599-1000 |
| Taric code | 85444991 |
| Unit | m |
Approvals
| Approved according to EN 50267-2-1 | Yes |
|---|---|
| Approved according to EN 50267-2-2 | Yes |
| Approved according to EN 50268-2 | Yes |
| Approved according to IEC 60332-1 | Yes |
| Approved according to IEC 60754-1 | Yes |
| Approved according to IEC 60754-2 | Yes |
| Reaction-to-fire class according to EN 13501-6 | N/A |
| Smoke development class according to EN 13501-6 | N/A |
| Euro class flaming droplets/particles according to EN 13501-6 | N/A |
| Euro class acidity according to EN 13501-6 | N/A |
| Low smoke (according to EN 61034-2) | Yes |
| Low temperature resistant (according to EN 60811-504+505+506) | No |
| Oil resistant (according to EN 60811-404) | No |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
Other info
| ETIM-Class | EC003248 - Power cable < 1 kV, for permanent installation |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | Huber+Suhner |
| Product Group | Cable - Radox, UL3271 |
| Search Description | RXL UL3271 |
| Alternative SKU | 12556599-1000 |
Compliance
| CA Proposition 65 | No CA Prop65 |
|---|---|
| Conflict Minerals | Yes, see report under tab "Documents" |
| General compliance statement from manufacturer | https://www.nelco.se/Image/GetDocument/1184 |
| PFAS | No PFAS |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| US TSCA | No (5 PBT Subs, Feb 2021) |
