05001606-25

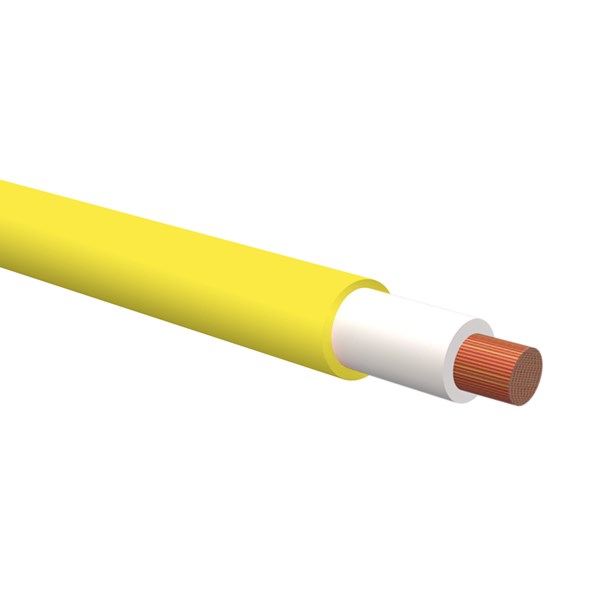

WELDING CABLE, DOUBLE INSULATED, 16mm2, YELLOW COIL, 600V, PVC, 80C

Sku

05001606-25

Availability:
No
  • Total: 1
Product Description
Svetskabel - Dubbelisolerad, ring
  • Total: 1
  • Total: 1

Related items

Svetskabel - Dubbelisolerad, ring

  • Total: 1
Number of cores 1 .
Material core insulation Polyvinyl chloride (PVC)
Specification core insulation Other
Core identification None
Protective conductor No
Material outer sheath None
Specification material outer sheath Other
Colour outer sheath Yellow
Flame retardant According to IEC/EN 60332-1-2
Permitted cable outer temperature after assembling without vibration -45-70 °C
Conductor material Copper
Twisted cores No
Max. conductor temperature 80 °C
Screen No
Protective barrier N/A
Armouring/reinforcement None
Insulation integrity N/A
Drain wire No
Nominal voltage 600 V
Halogen free No
Conductor category Class 6 = very flexible
Single insulated/Double insulated Double insulated
Colour Yellow
Material insulation Polyvinyl chloride (PVC)
Operating temperature -40-80 °C
Core colour Yellow
Conductor surface Bare
Packaging Ring
Min. permitted bending radius, stationary application/permanent installation 43.2 mm
Nominal cross section conductor 16 mm²
MOQ 25 .
Outer diameter approx. 10.8 mm
Min. permitted bending radius, stationary application/permanent installation 43.2 mm
Diameter conductor 16 mm
Unit m
Nominal voltage 600 V
Barcode 733117641629
Country of origin SE
Item status Non Stock Item, can be on stock but is not a regular stock item.
MOQ 25 .
Packaging Ring
Stock code 05001606-25
Taric code 85444991
Unit m
Reaction-to-fire class according to EN 13501-6 N/A
Smoke development class according to EN 13501-6 N/A
Euro class flaming droplets/particles according to EN 13501-6 N/A
Euro class acidity according to EN 13501-6 N/A
Halogen free No
Low smoke (according to EN 61034-2) No
Low temperature resistant (according to EN 60811-504+505+506) No
Oil resistant (according to EN 60811-404) No
Flame retardant According to IEC/EN 60332-1-2
ETIM-Class EC003248 - Power cable < 1 kV, for permanent installation
ETIM-Release 7.0
Trademark NEMIQ
Product Group Cable - Double insulated
Alternative SKU 05001606-25
CA Proposition 65 No CA Prop65
Conflict Minerals N/A, Contains no conflict minerals
