AC dimmer with Berker Integro rocker push-button
AC Dimmer återfjädrande_integro_vp
AC dimmer in kit with a Berker Integro push-button switch for use with incandescent, halogen or LED lights with external driver.
Universal push-button switch dimmer for universal load compatibility. The units utilise powerful and sophisticated dimming technology to provide full control of almost any type of load. The dimmer also incorporate overcurrent and over-temperature protection devices and are capable of withstanding persistent short circuit conditions.
Accurate and flicker free dimming to very low intensity.
Press dimmer switch once to turn on or off. The dimmer has memory function and returns to previous dimming when turned on.
Press and hold switch to dim up or down and release at desired level.
230VAC, 125W (0.5A), 50Hz, IP20
Temperature range: -5 - + 45° C
Measures: 36 x 36 x 12 mm
Cable lengths: 60 mm
EMC CISPR 15 (2018-05 ED.9.00), IEC 61547 (2009)
Safety: IEC 60669-1: 2017, IEC 60669-2-1: 2015
CE/EU Conformance Directive 2014/35/EU, Directive 2014/30/EU
Reflektorer och övriga tillbehör för MSP-Serien.
MSP ACCESSOARER
Choose reflector for different light beams.A honey comb to reduce blinding can be added for the MSP-series.
- Attachment of luminaire cover/post globe:
- Other
- Design of the grid/reflector:
- Glossy
- Kind of luminaire cover/post globe:
- Other
- Light distributor:
- Reflector
- Type of accessory/spare part:
- Reflector
- Beam angle:
- 15-35 °
- Colour:
- Chrome
- Accessory:
- Yes
- Spare part:
- No
KOPPLINGSPLINTAR LED - S 3050 - Konsumentförpackning
KOPPLINGSPLINT_S-3050-Konsumentförpackning_vp
Seriekoppling för LED.
IDC 3 x 2 polig, 0.34-0.5 mm² (IN, LED, OUT)
Kontakt: Tennplätterad brons
Material: Polyamid (Nylon, PA 6.6)
Montering: M3.5 eller limning
Spänning: 150V, EN60598-1
Ström: 6A (0.5 mm²) resp. 5A (0.34 mm²) vid temp 60° C
Temperatur: 100° C (kontinuerlig arbetstemp) 160° C (korttidstemp)
Färg: Ljusgrå
Brandklass: UL94 V-2
Skyddsklass: IP20
- Number of poles:
- 2 .
- Type of electrical connection 1:
- Insulation displacement connection
- Type of electrical connection 2:
- Insulation displacement connection
LED ARMATUR 60x60mm
LA6060
LED Luminaires for pendant installation or surface mount to the ceiling.
Technical data:
Length: See below.
Height: 60 mm
Width: 60 mm
Color temp: See below.
Efficacy: Approx. 100lm/W, See below.
Life-span: 50.000h
Light beam spread: 110°
Voltage: 110-250VAC
Type of LED: SMD 2835 LED
Power: See below.
Dimmable: Yes
CRI: RA80
Lens: PMMA
Energy rating: A++
On/Off delay: <1s
IP rating: IP20
Driver: On/Off, 0-10V or Dali. See below.
Warranty: 3 years.
- Dimming 0-10 V:
- Yes
- Dimming DALI:
- Yes
- Suitable for suspended mounting:
- Yes
- Suitable for ceiling mounting:
- Yes
- Lamp type:
- LED not exchangeable
- With light source:
- Yes
- Housing colour:
- Grey
- Voltage type:
- AC
- Nominal voltage:
- 110-250 V
- With control gear:
- Yes
- Light distribution:
- Symmetric
- Rated life time L70/B50 at 25 °C:
- 50000 h
- Max. system power:
- 28-50 W
- Colour temperature:
- 3000 K
- Colour rendering index CRI:
- 80-89
- Luminaire efficacy:
- 100 lm/W
- Degree of protection (IP):
- IP20
- Rated luminous flux according to IEC 62722-2-1:
- 2900-4900 lm

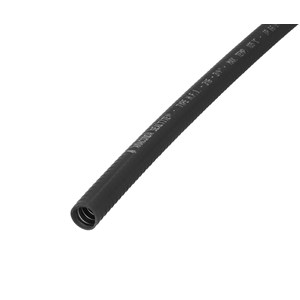

EF
85301
EF is the most common type of aluminium armoued conduit, and can be used in many different areas. Material: Galvanised steel core, leadfree PVC coverTemperature range: -25 degrees Celsius to +70 degrees Celsius , temporary +90 degrees Celsius Colours: Grey, black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black, Grey
- Surface protection:
- Galvanised
- Operating temperature:
- -25-70 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 66-67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes, No
- Approved in combination with protective conduit UL:
- Yes, No
OR
81001
OR is specially developed for areas where conduit systems are being exposed to oils and greases. The flexibility of the conduit is being safeguarded. Material: Galvanised steel core, leadfree PVC coverTemperature range: -15 degrees Celsius to +100 degrees Celsius , temporary +120 degrees Celsius Colour: Black
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC), oil resistant
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -15-100 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 45°-Bend
- Thread type:
- NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
HC
80401
Används vid stora temperaturskillnader. Yttermanteln behåller sin styrka både vid höga och låga temperaturer.
Konstruktion: Galvaniserad stålspiral med bomullspackning.
Yttermantel av PVC
Temperatur: -45° C till +105° C, tillfälligt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -45-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No
- Approved according to CSA:
- No
- With approval according to UL:
- No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 90°-elbow, 90°-Bend
- Thread type:
- Metric, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -40-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
HTDL
81301
HTDL har en integrerad koppartråd som gör att slangen kan användes för jordning. HTDL är UL och CSA godkänd.
Konstruktion: Galvaniserad stålspiral med integrerad kopparledare.
Termoplastisk PVC yttermantel
Temperatur: -40° C till +105° C, temporärt +120° C
Färg: Svart
- Compressive strength:
- 1250 N
- Bending strength:
- Flexible
- Tensile strength:
- 1000 N
- Sheathing material 1st coating:
- Polyvinyl chloride (PVC)
- Sheathing material 2nd coating (exterior):
- Not sheathed
- Sealing:
- Special fibre sealing
- Suitable for EX-applications:
- No
- Degree of protection (IP):
- IP67
- Colour:
- Black
- Surface protection:
- Galvanised
- Operating temperature:
- -45-105 °C
- Material:
- Steel
- Approved according to BWB:
- No
- Approved according to VDE-EMV/emc:
- No
- Approved according to FI:
- No

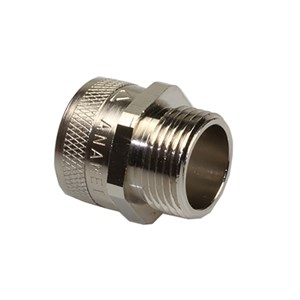

Slangförskruvning, Rak, Nickelpläterad mässing
84101
Male fittingMaterial: Nickel plated brassIP rating: IP67Temperature Range: -55 degrees Celsius to +160 degrees Celsius Typ 82129 are of Swiveltype which means that the portion of the screw which is attached to the hose van rotate even though the gland body is fixed in the estate.
- With grounding connection:
- No
- Revolving thread:
- Yes, No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric, PG, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes

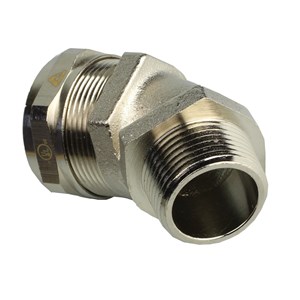

Vinkelslangförskruvning, 45º, Nickelpläterad mässing
85401
Material: Nickel plated brassProtection: IP67Temperature range: -55 degrees Celsius to +160 degrees Celsius
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 45°-Bend
- Thread type:
- Metric, PG, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes

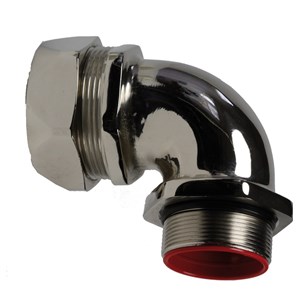

Vinkelslangförskruvning, 90º, Nickelpläterad mässing
85501
Material: Nickel plated brassProtection: IP67Temperature range: -55 degrees Celsius to +160 degrees Celsius
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 90°-Bend
- Thread type:
- Metric, PG, NPT
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
Slangförskruvning, Rak, Galvaniserat stål
83901
Material: Galvaniserat stål
Skyddsklass: IP67
Temperaturområde: -55º C till +250º C
NPT-förskruvning levereras inklusive kontramutter.
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Steel
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric, PG, NPT
- Construction type:
- External thread
- Surface protection:
- Galvanised
- Operating temperature:
- -55-300 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
Vinkelslangförskruvning, 45º, Galvaniserat stål
85901
Material: Galvaniserat stål
Skyddsklass: IP67
Temperaturområde: -55º C till +250º C
NPT-förskruvning levereras inklusive kontramutter.
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Steel
- Number of inlets:
- 1 .
- Model:
- 45°-Bend
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Surface protection:
- Galvanised
- Operating temperature:
- -55-300 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
Vinkelslangförskruvning, 90º, Galvaniserat stål
86001
Material: Galvaniserat stål
Skyddsklass: IP67
Temperaturområde: -55º C till +250º C
NPT-förskruvning levereras inklusive kontramutter.
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Steel
- Number of inlets:
- 1 .
- Model:
- 90°-Bend
- Thread type:
- Metric, PG
- Construction type:
- External thread
- Surface protection:
- Galvanised
- Operating temperature:
- -55-300 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
- Availability:
-
No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Stainless steel
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric
- Construction type:
- External thread
- Surface protection:
- Untreated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
- Availability:
-
No
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 54 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- Straight
- Thread type:
- Metric
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -55-260 °C
- Availability:
-
Yes
- With grounding connection:
- No
- Revolving thread:
- No
- Degree of protection (IP) conduit dependant:
- 67 .
- One-piece:
- No
- Housing material:
- Brass
- Number of inlets:
- 1 .
- Model:
- 90°-Bend
- Thread type:
- Metric
- Construction type:
- External thread
- Surface protection:
- Nickel-plated
- Operating temperature:
- -45-105 °C
- Approved in combination with protective conduit CSA:
- Yes
- Approved in combination with protective conduit UL:
- Yes
- Availability:
-
No
