A 2504 HO

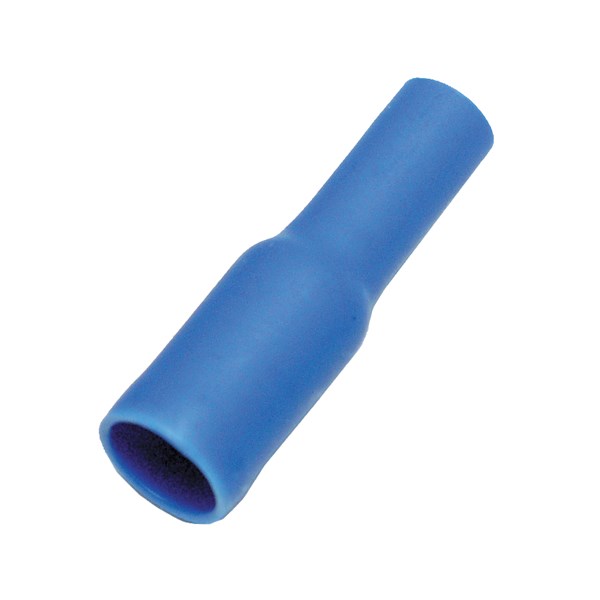

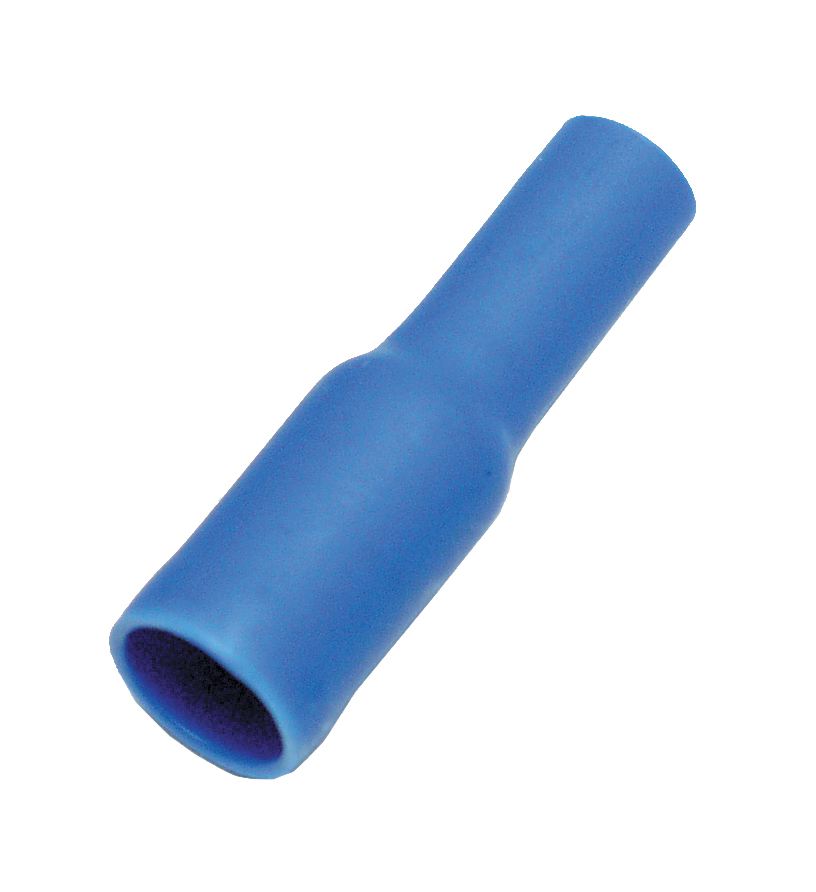

INSULATED BULLET FEMALE BLUE, 4mm
A 2504 HO
- Availability:
-
Yes
Product Properties
| Model | Bushing |
|---|---|
| Max. current (Imax) | 15 A |
| Insulation | Fully isolated |
| Colour insulation | Blue |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Operating temperature | -25-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 4.4 mm |
|---|---|
| E | 13.2 mm |
| L | 25.5 mm |
| N | 10 mm |
| W | 6.7 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 1.04-2.63 mm² |
| AWG-range | 16-14 . |
| Plug dimensions | Round 4 mm |
Logistics
| Barcode | 733117610067 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 2504 HO |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E42024 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | JST |
| Product Group | Bullet Female - PVC |
| Search Description | 19951600 , CVDGF2-5 |
| Alternative SKU | A2504HO |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| PFAS | No PFAS |
| REACH | No SVHC (240 Subs. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
