A 4605 HA PL

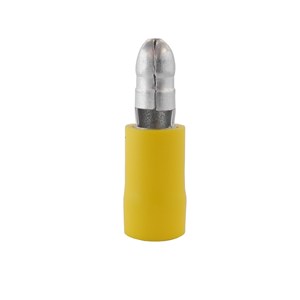

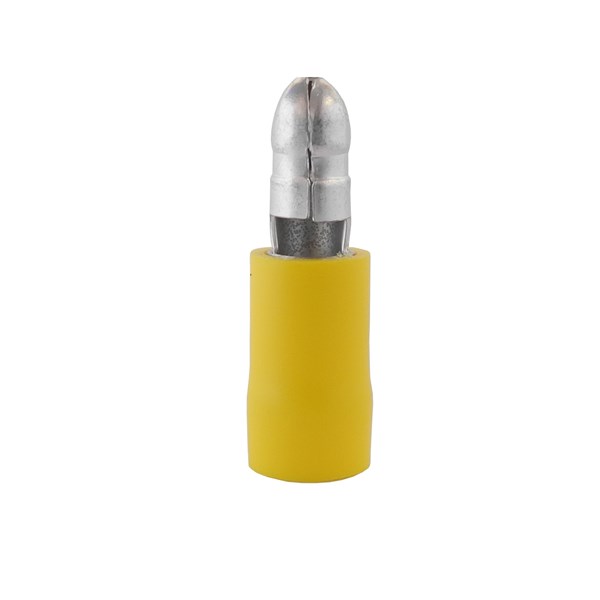

INSULATED BULLET MALE YELLOW, 5mm
A 4605 HA PL
- Availability:
-
Yes
E0842416
Product Properties
| Model | Plug |
|---|---|
| Max. current (Imax) | 24 A |
| Insulation | Partially isolated |
| Colour insulation | Yellow |
| With cam clamp | No |
| With tap spreader | No |
| Material insulation | Polyvinyl chloride (PVC) |
| Operating temperature | -40-75 °C |
| Material | Brass |
| Voltage max | 300V |
| Halogen free | No |
| Packaging | Loose piece |
Dimensions
| ID | 6.5 mm |
|---|---|
| L | 21.5 mm |
| N | 11.7 mm |
| W | 5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Nominal cross section | 2.63-6.64 mm² |
| AWG-range | 12-10 . |
| Plug dimensions | Round 5 mm |
Logistics
| Barcode | 733117610626 |
|---|---|
| Country of origin | TW |
| E-no | E0842416 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 100 . |
| Packaging | Loose piece |
| Stock code | A 4605 HA PL |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|---|
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC000516 - Round or flat plug/receptacle |
|---|---|
| ETIM-Release | 9.0 |
| Trademark | NEMIQ |
| Product Group | Bullet Male - PVC |
| Alternative SKU | A4605HAPL |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Contain no Iron or Steel |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
