A 1553 GB

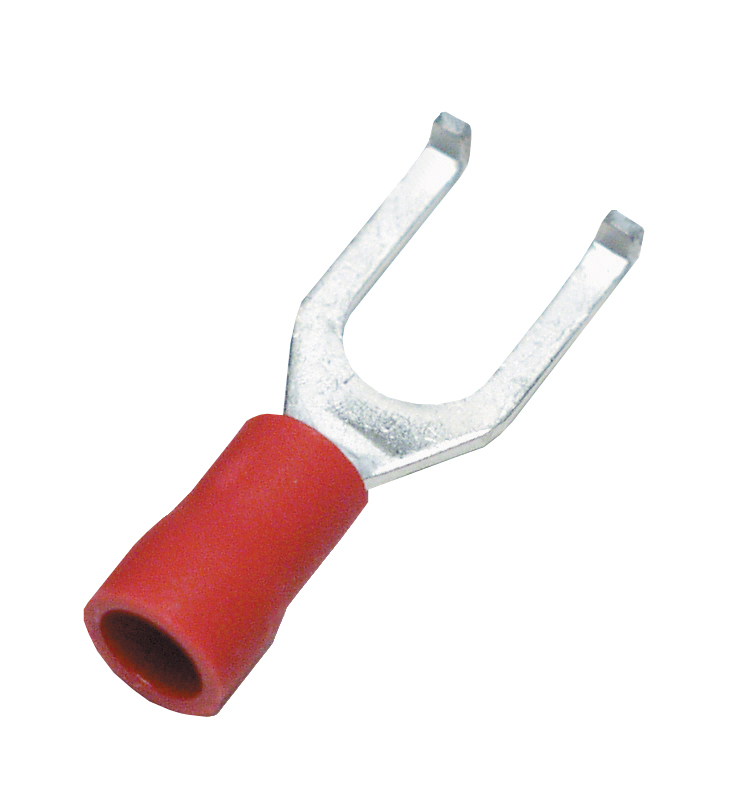

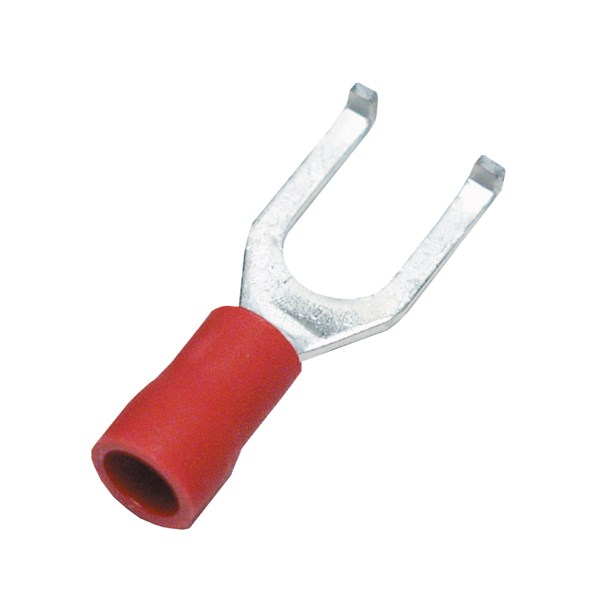

INSULATED FLANGE SPADE TERMINAL RED, M5
A 1553 GB
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
E0842184
Product Properties
| Reel/roll packaging | No |
|---|---|
| Max. current (Imax) | 19 A |
| Flange shape | Fork shape |
| According to DIN | No |
| Insulation | Polyvinyl chloride (PVC) |
| Colour insulation | Red |
| Sleeve form | Short |
| Suitable for solid cores | No |
| Suitable for stranded conductors | Yes |
| Suitable for fine strand conductors | Yes |
| Suitable for high temperatures (to 650 °C) | No |
| Suitable for insulated varnish | No |
| Suitable for round conductors | Yes |
| Suitable for flat conductors | No |
| Surface protection | Tinned |
| Operating temperature | -25-75 °C |
| Material | Copper |
| Voltage max | 600V |
| Halogen free | No |

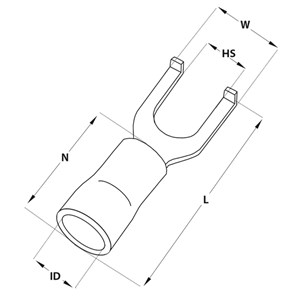

Dimensions
| HS | 5.3 mm |
|---|---|
| ID | 4 mm |
| L | 23.9 mm |
| N | 9 mm |
| W | 8.5 mm |
| MOQ | 100 . |
| Unit | pcs |
| Bolt dimension (metric) | 5 . |
| Nominal cross section | 0.5-1.65 mm² |
Logistics
| Barcode | 733117610052 |
|---|---|
| Country of origin | JP |
| E-no | E0842184 |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 100 . |
| Stock code | A 1553 GB |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| UL-File No. | E42024 |
|---|---|
| Approved according to CE | Yes |
| Approved according to CSA | Yes |
| With approval according to UL | Yes |
| Inflammability class of insulation material according to with UL94 | V0 |
Other info
| ETIM-Class | EC001052 - Solderless copper terminals for copper conductors |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | JST |
| Product Group | Spade terminals - PVC - Flanged spade tongue terminal |
| Search Description | 10263000 , FV1.25-5B (LF) |
| Alternative SKU | A1553GB |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| REACH | No SVHC (223 Subs. 17 Jan 2022) |
| RoHS | RoHS 3 (2015/863) |
| ECCN Primary Classification | N/A |
| ECCN Export Control Code Number | EAR99 |
