AKP 16

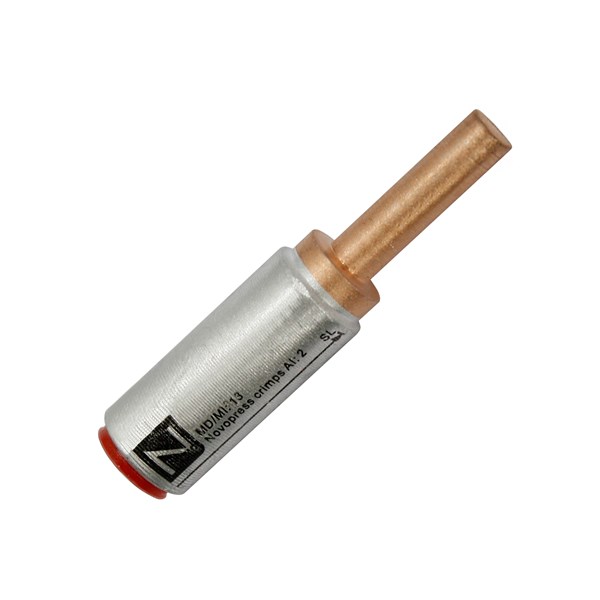

AL/CU BI-METAL PIN CONNECTOR 16mm2, AL13/5.8, CU8
AKP 16
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
E0846502
Product Properties
| For pull protected connections | No |
|---|---|
| Voltage level | Other |
| Oil stop/centre bar | Yes |
| Cross section form | Round/sector-shaped |
| Connection as copper bolt | Yes |
| Suitable for Al/St-cables | No |
| Suitable for Aldrey-cables | No |
| Max Temp | 150 °C |
| Surface protection | Untreated |
| Material | Aluminium/copper |

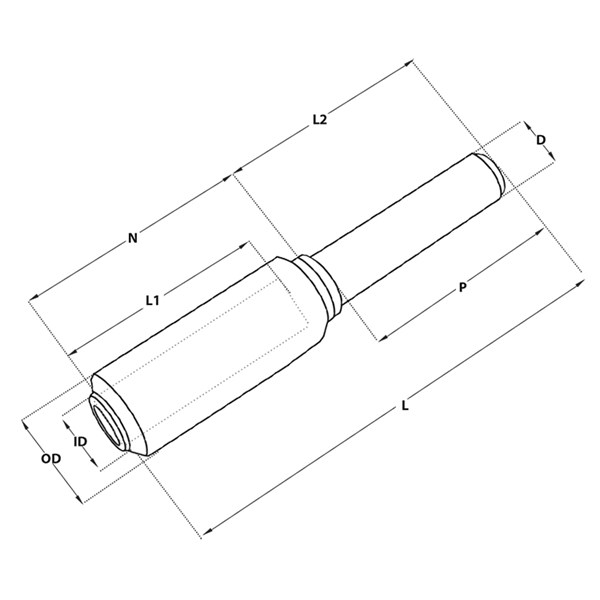

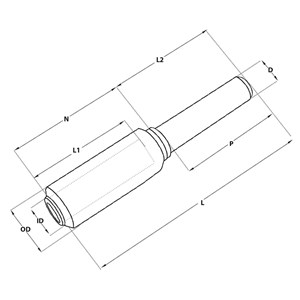

Dimensions
| D | 6 mm |
|---|---|
| ID | 5.9 mm |
| OD | 13 mm |
| P | 22 mm |
| L | 56 mm |
| L1 | 26 mm |
| L2 | 25 mm |
| N | 31 mm |
| MOQ | 10 . |
| Unit | pcs |
| Nominal cross section aluminium, RM/SM | 16 mm² |
| Nominal cross section aluminium, SE | 25 mm² |
| Reduced Al nominal cross section | 25 mm² |
| Nominal cross section Cu | 16 mm² |
Logistics
| Barcode | 733117611235 |
|---|---|
| Country of origin | CN |
| E-no | E0846502 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Stock code | AKP 16 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001060 - Crimp splices for aluminium conductor |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | NEMIQ |
| Product Group | AL/CU Bi-metal pin connectors (AKP) |
| Alternative SKU | AKP16 |
Compliance
| Extended Minerals | N/A, contains no extended minerals |
|---|---|
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
