AKK 630 YD 60

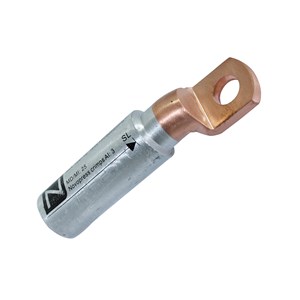

AC/CU BI-METAL CABLE LUG 630mm2, 60x60mm
AKK 630 YD 60
- Availability:
-
Yes
- Total: 1
Related items
- Total: 1
Product Properties
| Number of mounting holes | 0 . |
|---|---|
| Code digit | 60 . |
| According to DIN | No |
| Sleeve form | Long |
| Cross section form | Round |
| Suitable for Al/St-cables | No |
| Longitudinal sealed | Yes |
| Max Temp | 150 °C |
| Colour | Other |
| Surface protection | Untreated |
| Material | Aluminium/copper |
Dimensions
| ID | 32 mm |
|---|---|
| OD | 60 mm |
| L | 232 mm |
| N | 128 mm |
| MOQ | 1 . |
| Unit | pcs |
| Bolt dimension (metric) | 0 . |
| Nominal cross section aluminium, RM/SM | 630 mm² |
| Nominal cross section aluminium, SE | 800 mm² |
| St nominal cross section | 0 N/A |
Logistics
| Barcode | 733117611225 |
|---|---|
| Country of origin | CN |
| Item status | Non Stock Item, can be on stock but is not a regular stock item. |
| MOQ | 1 . |
| Stock code | AKK 630 YD 60 |
| Taric code | 85369010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC001053 - Crimp cable lug for aluminium conductors |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | NEMIQ |
| Product Group | AL/CU Bi-metal cable lugs (AKK) |
| Alternative SKU | AKK630YD60 |
Compliance
| Extended Minerals | N/A, contains no extended minerals |
|---|---|
| PFAS | No PFAS |
| REACH | No SVHC (Latest. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings
CE Declaration of Conformity_AK, AKK, AKP, AKS, AS
Generate Datasheet:
