VET M32 GR EPDM
VET-GROMMETS, EPDM GREY RAL 7042, M32, 14-20mm
VET M32 GR EPDM
- Availability:
-
Yes
- Total: 1
Related items
EPDM, Grå - metrisk gänga
Single gate seals with strain relief.
Pull the cable through and then pull back for locking.
Fits in sheet metal with wall thickness 1.0-4.0 mm(PG) or 1.3-5.0 mm(Metric)
- Total: 1
E1458175
Product Properties
| Gastight | No |
|---|---|
| Degree of protection (IP) | IP67 |
| Watertight | Yes, No |
| Fire resistant | No |
| Angle model | No |
| With strain relief | No |
| Model | Closed |
| For slotted hole | No |
| Material quality | Ethylene-propylene diene monomer rubber (EPDM) |
| Shrink technique | No |
| Insert for cable gland | No |
| Cable entry | Round |
| Number of cables | 1 . |
| Colour | Grey |
| Surface protection | Untreated |
| Operating temperature | -40-100 °C |
| Material | Rubber |
| Halogen free | Yes |

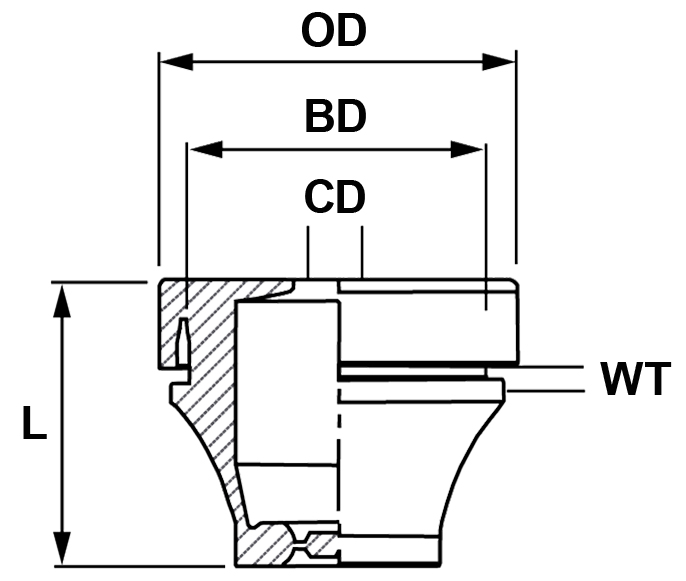

Dimensions
| BD | 32.2 mm |
|---|---|
| CD | 14-20 mm |
| OD | 39 mm |
| L | 21.5 mm |
| WT | 1.3-5 mm |
| MOQ | 25 . |
| Unit | pcs |
| Bore diameter | 32.2 mm |
| For wall thickness | 1.3-5 mm |
| Suitable for cable diameter | 14-20 mm |
| Thread size (metric) | 32 . |
Logistics
| Barcode | 733117638993 |
|---|---|
| Country of origin | CN |
| E-no | E1458175 |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 25 . |
| Stock code | VET M32 GR EPDM |
| Taric code | 40169300 |
| Unit | pcs |
Approvals
| Degree of protection (IP) | IP67 |
|---|
Other info
| ETIM-Class | EC000879 - Cable entry sleeve |
|---|---|
| ETIM-Release | 7.0 |
| Trademark | NEMIQ |
| Product Group | VET-grommets |
| Alternative SKU | VETM32GREPDM |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | N/A, contains no extended minerals |
| Iron and Steel Sanction | Complied |
| REACH | No SVHC (Latest. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
