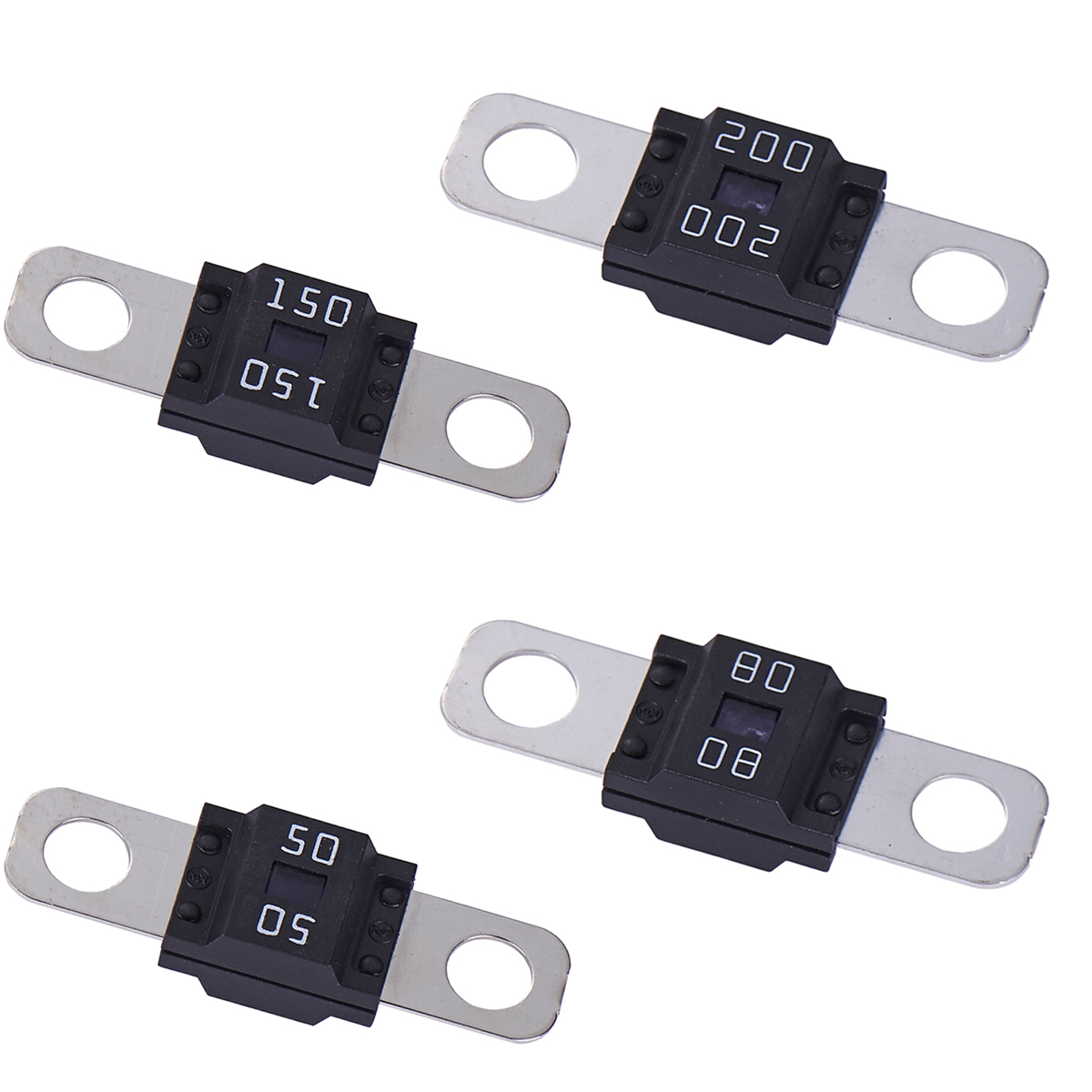

Bolt-on - Mega S-serien i Konsumentförpackning
MEGA S
Maximum voltage: 58 V DCCurrent rating: 30-200 ASlow acting fuse, copper
Stud size: M6

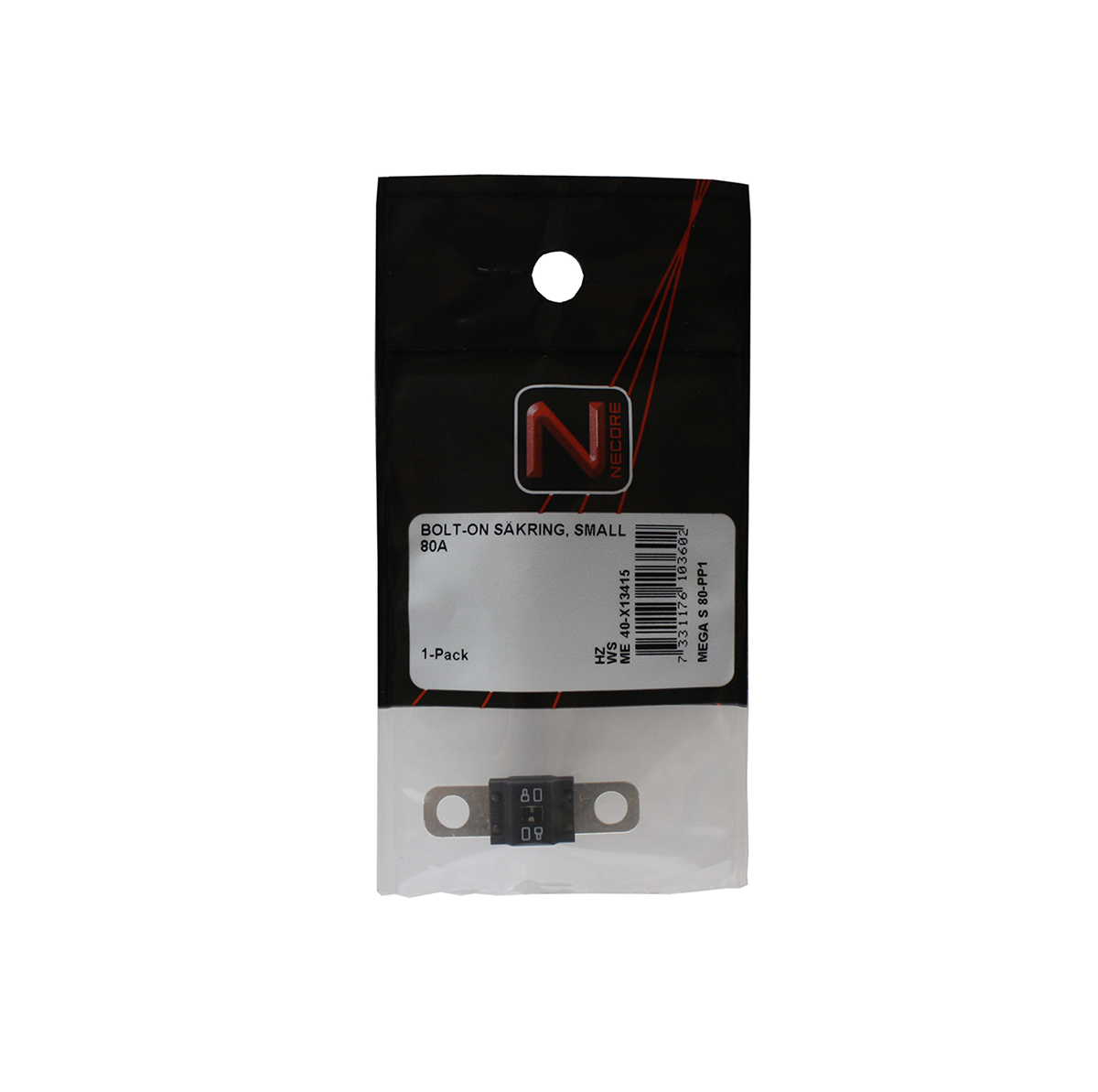

This part is also available in retail packaging (pin-pac) with barcode, then with the suffix -PP added to the end of the part number.
Technical properties
- Explosion-proof:
- No
- Release characteristic:
- Time-lag (T)
- Rated voltage:
- 32 V
- Optical defect indication:
- Yes
- Type of current:
- DC
- Colour code:
- Black
- Nominal voltage DC:
- 32 V
- Max. continuous voltage DC:
- 32 V
- Number of fuses:
- 1 .
- Model:
- Other
- Max. current (Imax):
- 100 A, 125 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
- Nominal current:
- 100 A, 125 A, 30 A, 40 A, 50 A, 60 A, 70 A, 80 A
- Fuse type:
- Mega S
- Packaging:
- Bag
Show more
Item List
- Total: 8
- Total: 8
Accessories
Related products
Spare Parts
Product video
Documents

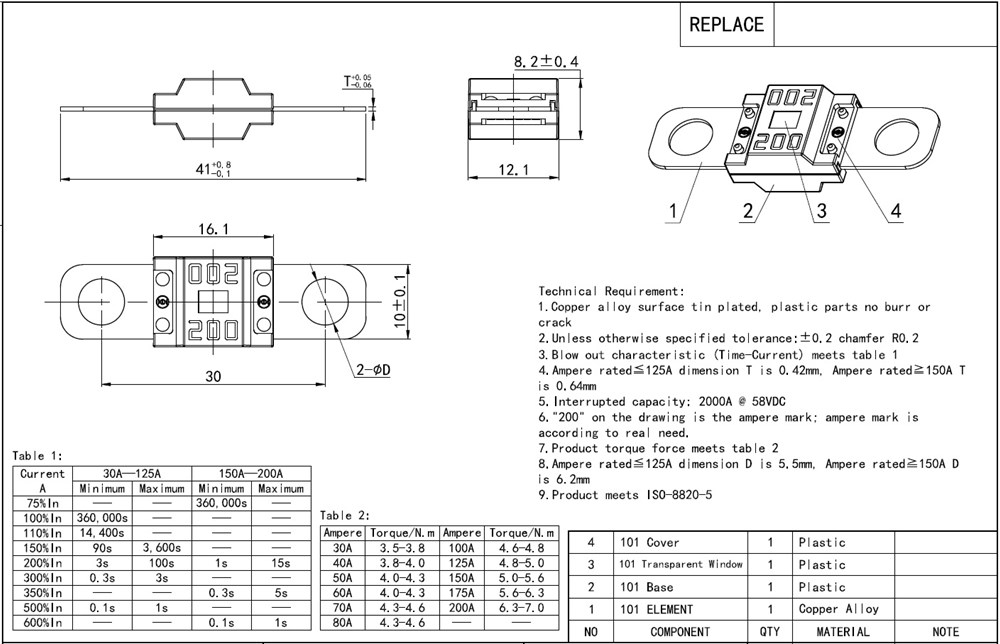

Dimensions
- Total: 8
| Product Description | Width | MOQ | Unit | Rated voltage | Mounting holes | Centre-to-centre distance of connections | Thickness | Length | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, SMALL, 100A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 125A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 30A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 40A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 50A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 60A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 70A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 80A | 40.8 mm | 10 . | pck | 32 V | M6 | 30 mm | 8.3 mm | 12.1 mm |
Yes
|
|
|
- Total: 8
Similar Options
Approvals
- Total: 8
| Product Description | Availability | ||
|---|---|---|---|
| BOLT-ON FUSE, SMALL, 100A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 125A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 30A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 40A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 50A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 60A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 70A |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 80A |
Yes
|
|
|
- Total: 8
Technical Properties
- Total: 8
| Product Description | Explosion-proof | Release characteristic | Rated voltage | Optical defect indication | Type of current | Colour code | Nominal voltage DC | Max. continuous voltage DC | Number of fuses | Model | Max. current (Imax) | Nominal current | Fuse type | Packaging | Availability | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, SMALL, 100A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 100 A | 100 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 125A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 125 A | 125 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 30A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 30 A | 30 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 40A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 40 A | 40 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 50A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 50 A | 50 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 60A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 60 A | 60 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 70A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 70 A | 70 A | Mega S | Bag |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 80A | No | Time-lag (T) | 32 V | Yes | DC | Black | 32 V | 32 V | 1 . | Other | 80 A | 80 A | Mega S | Bag |
Yes
|
|
|
- Total: 8
Other information
- Total: 8
| Product Description | ETIM-Class | ETIM-Release | Trademark | Product Group | Search Description | Alternative SKU | Availability | ||
|---|---|---|---|---|---|---|---|---|---|
| BOLT-ON FUSE, SMALL, 100A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS100-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 125A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS125-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 30A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS30-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 40A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS40-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 50A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS50-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 60A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS60-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 70A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS70-PP1 |
Yes
|
|
|
| BOLT-ON FUSE, SMALL, 80A | EC004122 - Strip fuse | DYNAMIC |
|
Bolt-on / Strip fuses - Pin-pac | MIDI | MEGAS80-PP1 |
Yes
|
|
|
- Total: 8
