MEGA M 500

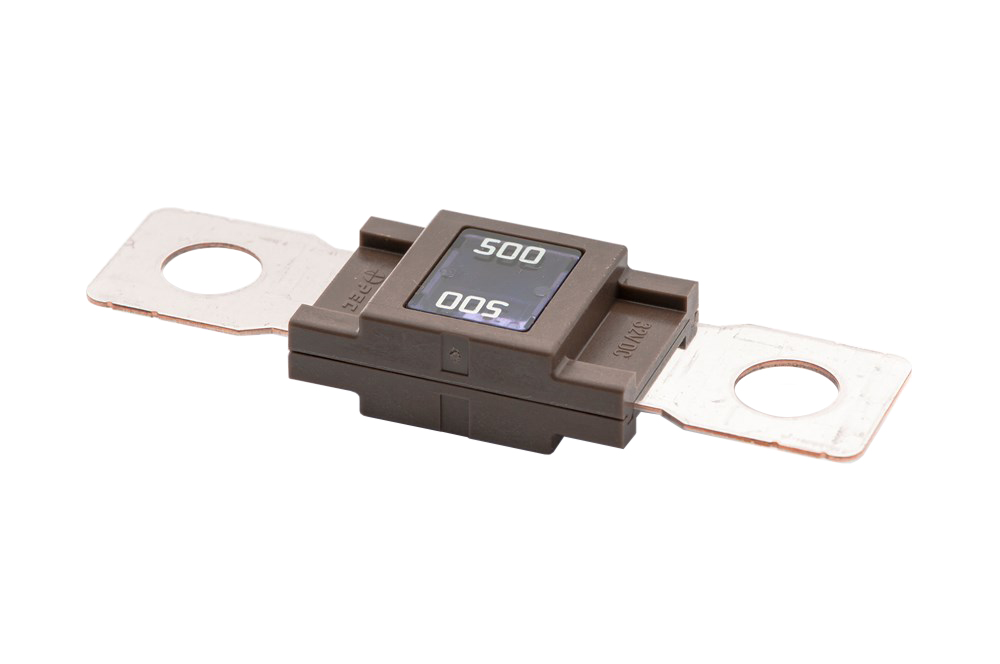

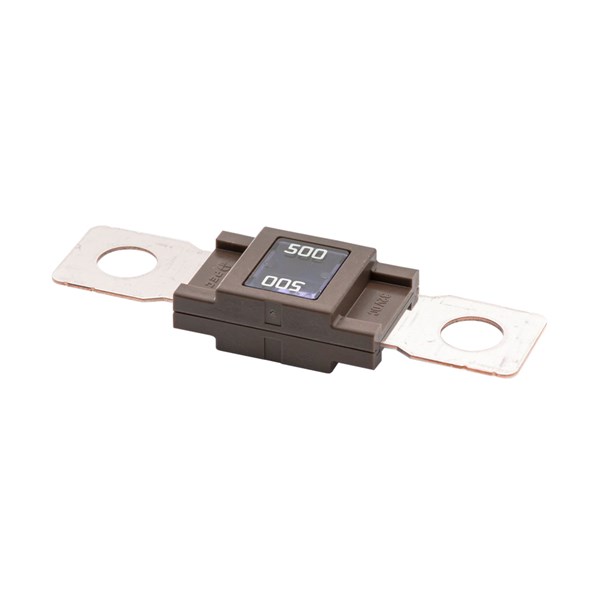

BOLT-ON FUSE, MEDIUM, 500A BROWN
MEGA M 500
- Availability:
-
Yes
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Time-lag (T) |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Yellow |
| Nominal voltage DC | 32 V |
| Max. continuous voltage DC | 32 V |
| Max. current (Imax) | 500 A |
| Nominal current | 500 A |
| Fuse type | Mega M |
| Packaging | Loose piece |
Dimensions
| Width | 68 mm |
|---|---|
| MOQ | 10 . |
| Unit | pcs |
| Mounting holes | M8 |
| Centre-to-centre distance of connections | 51 mm |
| Thickness | 9.7 mm |
| Length | 19 mm |
Logistics
| Barcode | 733117631918 |
|---|---|
| Country of origin | JP |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | MEGA M 500 |
| Taric code | 85361090 |
| Unit | pcs |
Approvals
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Product Group | Bolt-on / Strip fuses |
| Search Description | BOLT-ON FUSE MEDIUM |
| Alternative SKU | MEGAM500 |
Compliance
| Conflict Minerals | Yes, see report under tab "Documents" |
|---|---|
| Iron and Steel Sanction | Complied |
| REACH | No SVHC (235 Subs. 14 June 2023) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
