MEGA L 300
BOLT-ON FUSE, LARGE, 300A WHITE, M10, CERAMIC
MEGA L 300
- Availability:
-
Yes
Product Properties
| Explosion-proof | No |
|---|---|
| Release characteristic | Time-lag (T) |
| Optical defect indication | Yes |
| Type of current | DC |
| Colour code | Black |
| Nominal voltage DC | 32 V |
| Max. continuous voltage DC | 32 V |
| Max. current (Imax) | 300 A |
| Nominal current | 300 A |
| Fuse type | Mega |
| Packaging | Loose piece |
Dimensions
| Width | 82 mm |
|---|---|
| MOQ | 10 . |
| Unit | pcs |
| Mounting holes | M10 |
| Centre-to-centre distance of connections | 60 mm |
| Thickness | 10 mm |
| Length | 22 mm |
Logistics
| Barcode | 733117631831 |
|---|---|
| Country of origin | TW |
| Item status | Stock item, normally in stock with reservation for in between sales. |
| MOQ | 10 . |
| Packaging | Loose piece |
| Stock code | MEGA L 300 |
| Taric code | 85361010 |
| Unit | pcs |
Approvals
| Approved according to CE | Yes |
|---|
Other info
| ETIM-Class | EC004122 - Strip fuse |
|---|---|
| ETIM-Release | DYNAMIC |
| Trademark | NEMIQ |
| Product Group | Bolt-on / Strip fuses |
| Search Description | BOLT-ON FUSE LARGE |
| Alternative SKU | MEGAL300 |
Compliance
| Conflict Minerals | N/A, Contains no conflict minerals |
|---|---|
| Extended Minerals | Yes, contain Mica on the top cover |
| Iron and Steel Sanction | Complied |
| REACH | No SVHC (Latest. 23 Jan 2024) |
| RoHS | RoHS 3 (2015/863) |
| SCIP | Not Applicable |
Genererate statement of compliance:
Accessories
Spare Parts
Product video
Documents
Manuals, Datasheets, Sketches & Drawings

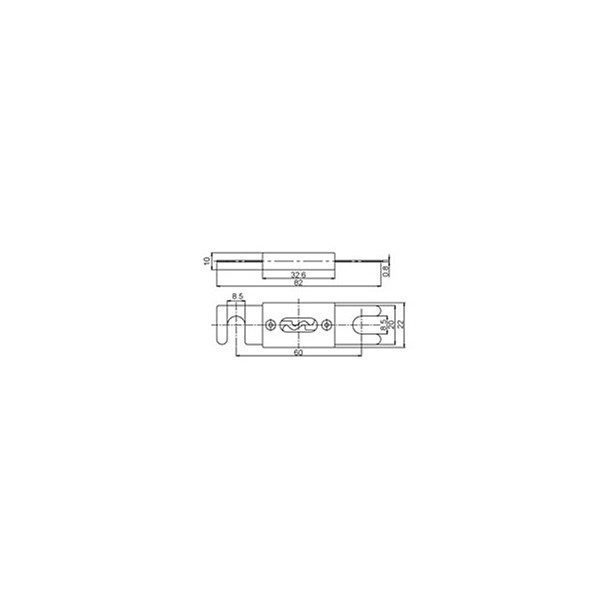

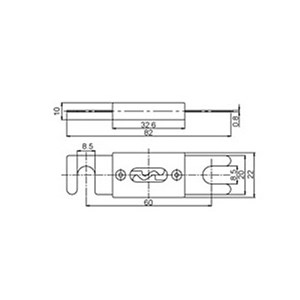

Mega L Drawing
